Product details
Overview
Quick Details
Warranty:
1 years
Customized support:
OEM
Place of Origin:
Guangdong, China
Brand Name:
RF4
Model Number:
RF6565RVP, RF6565-PO4
Theory:
Stereo Microscope
Drawtube:
Trinocular
Product name:

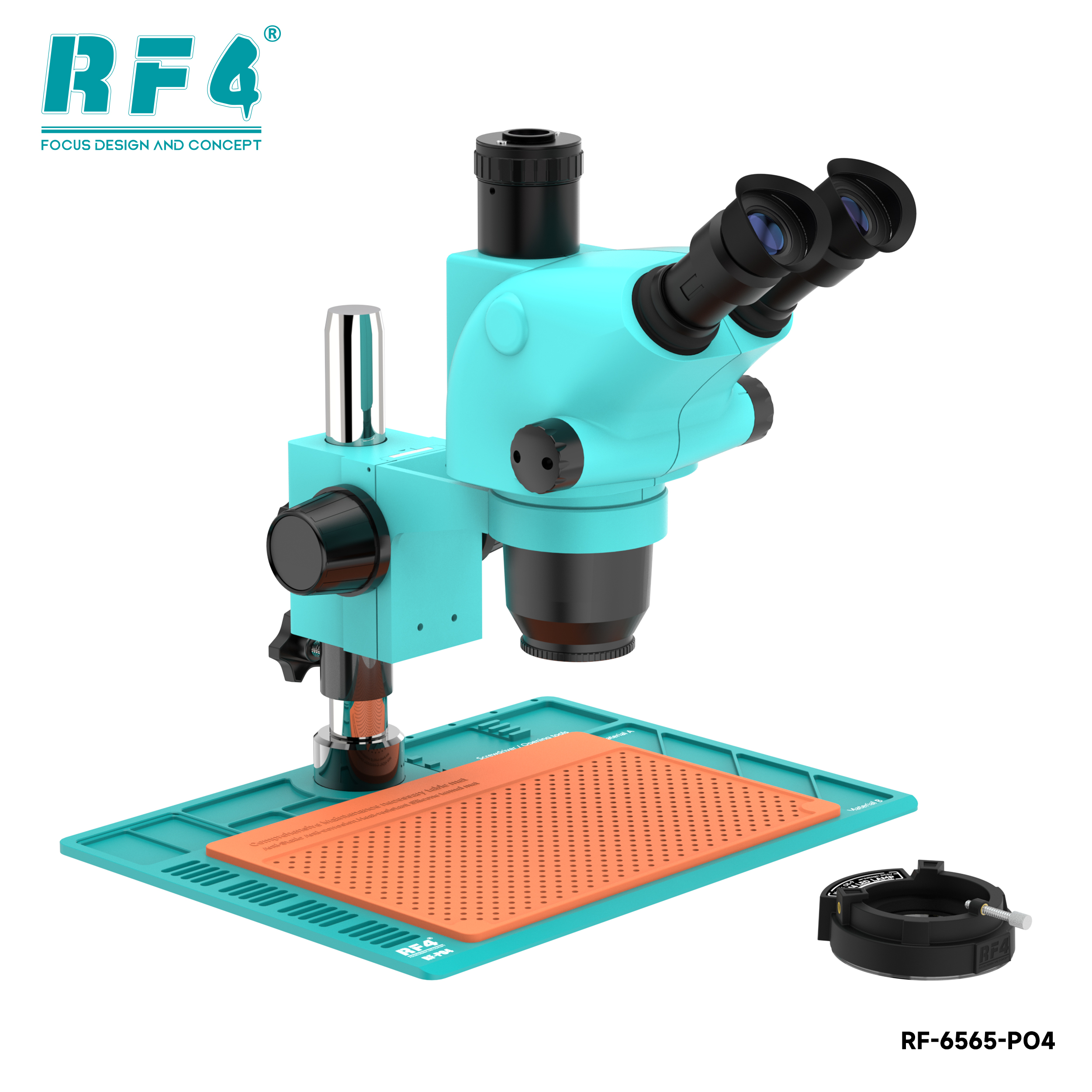

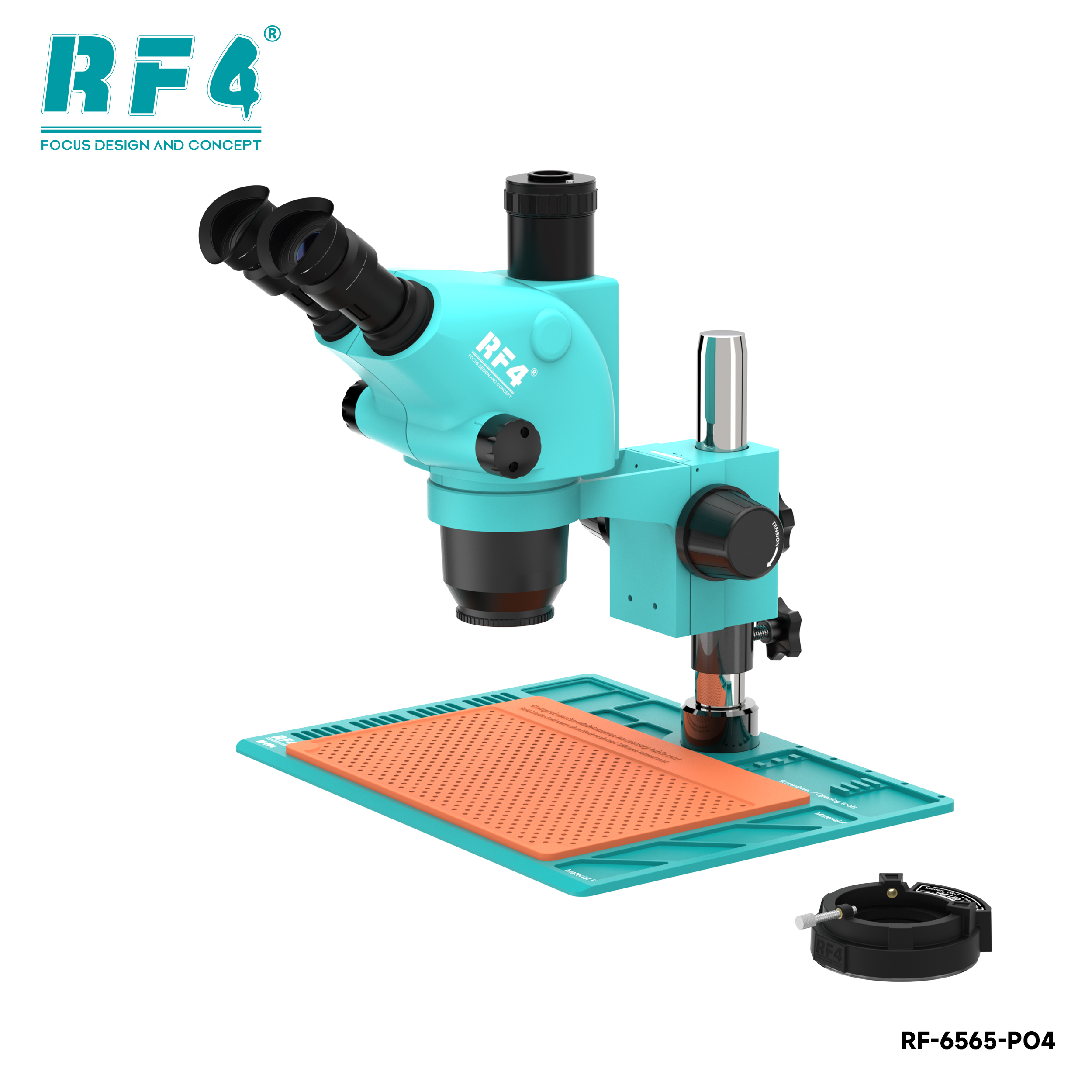

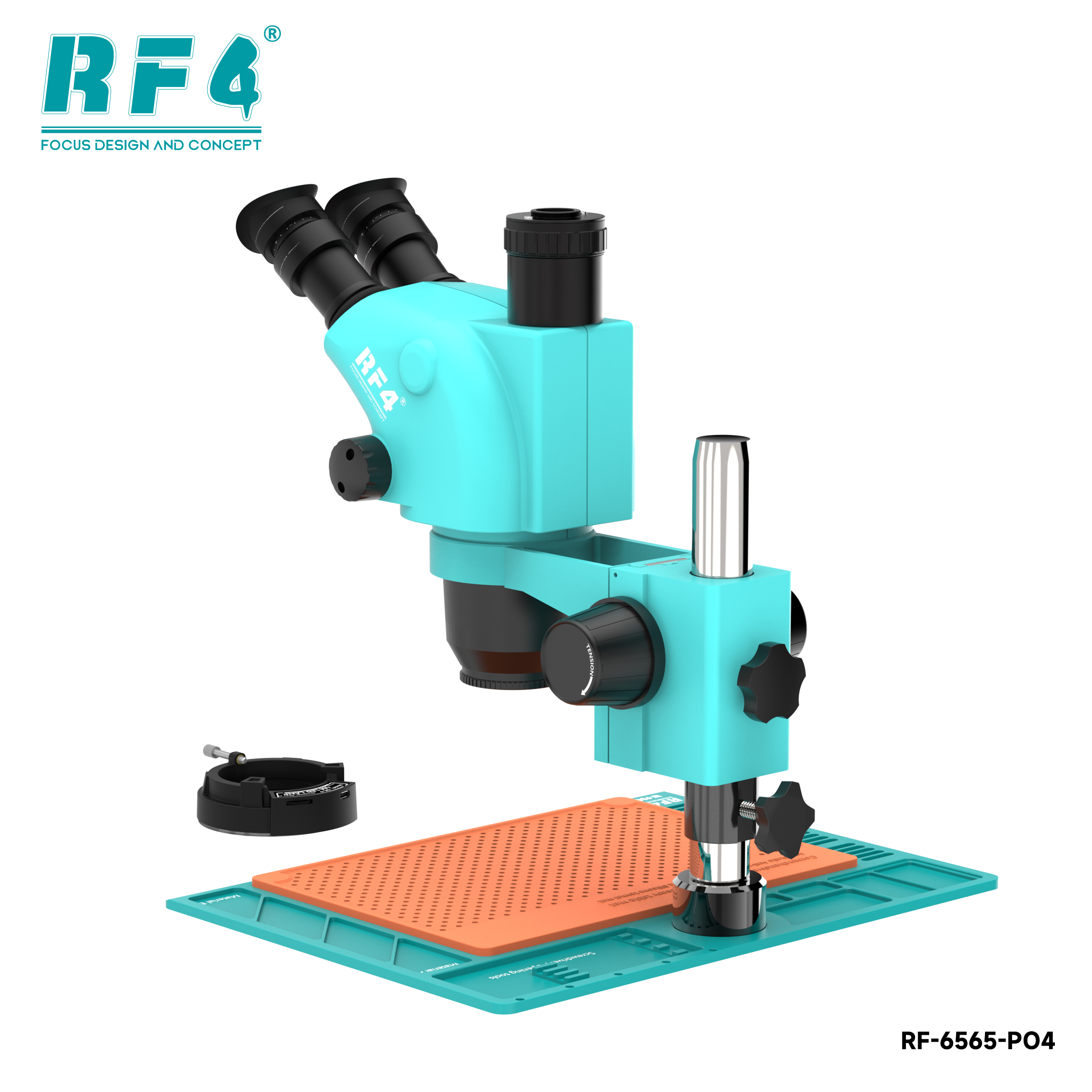

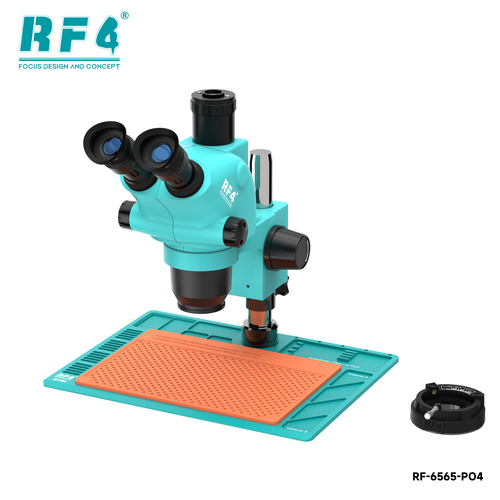

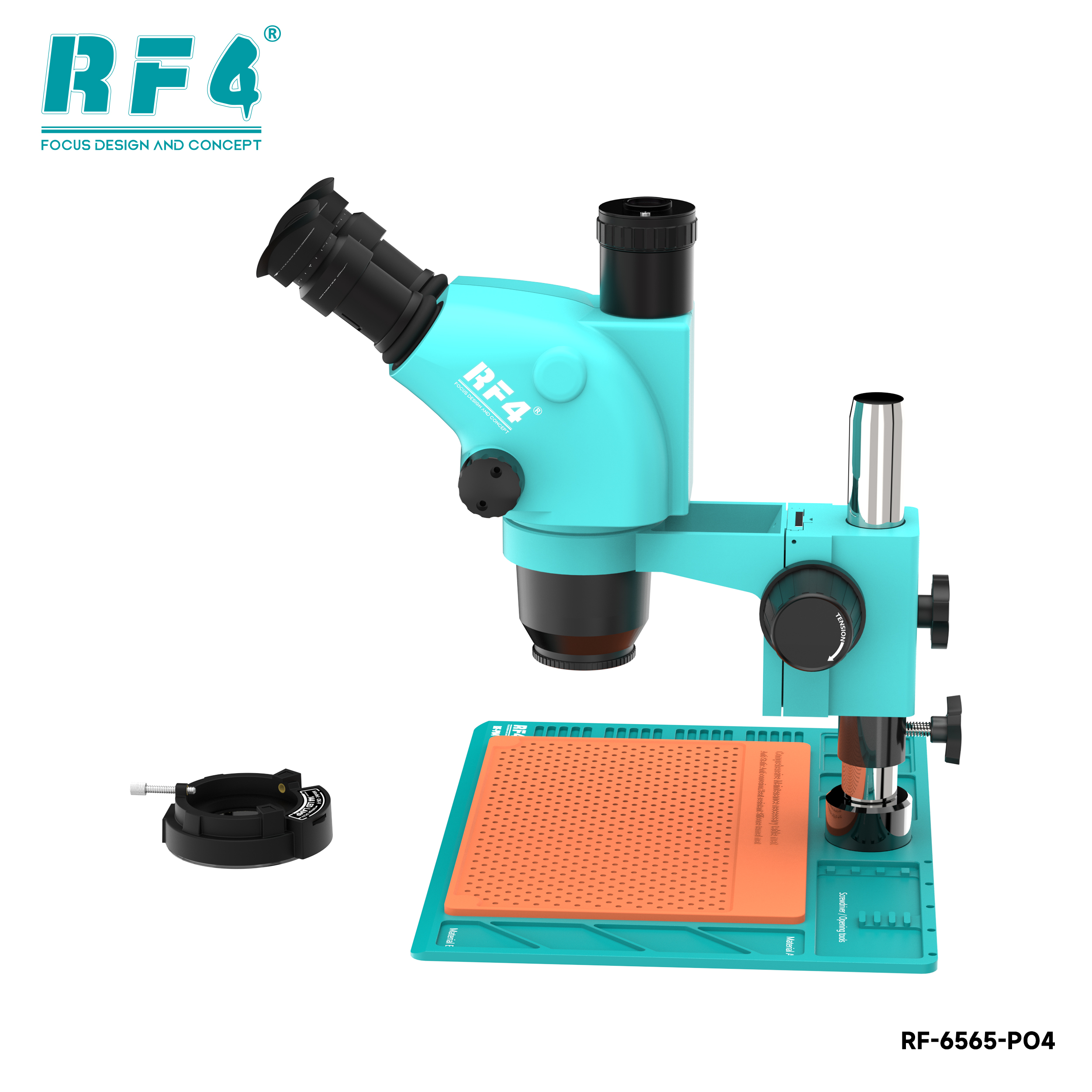

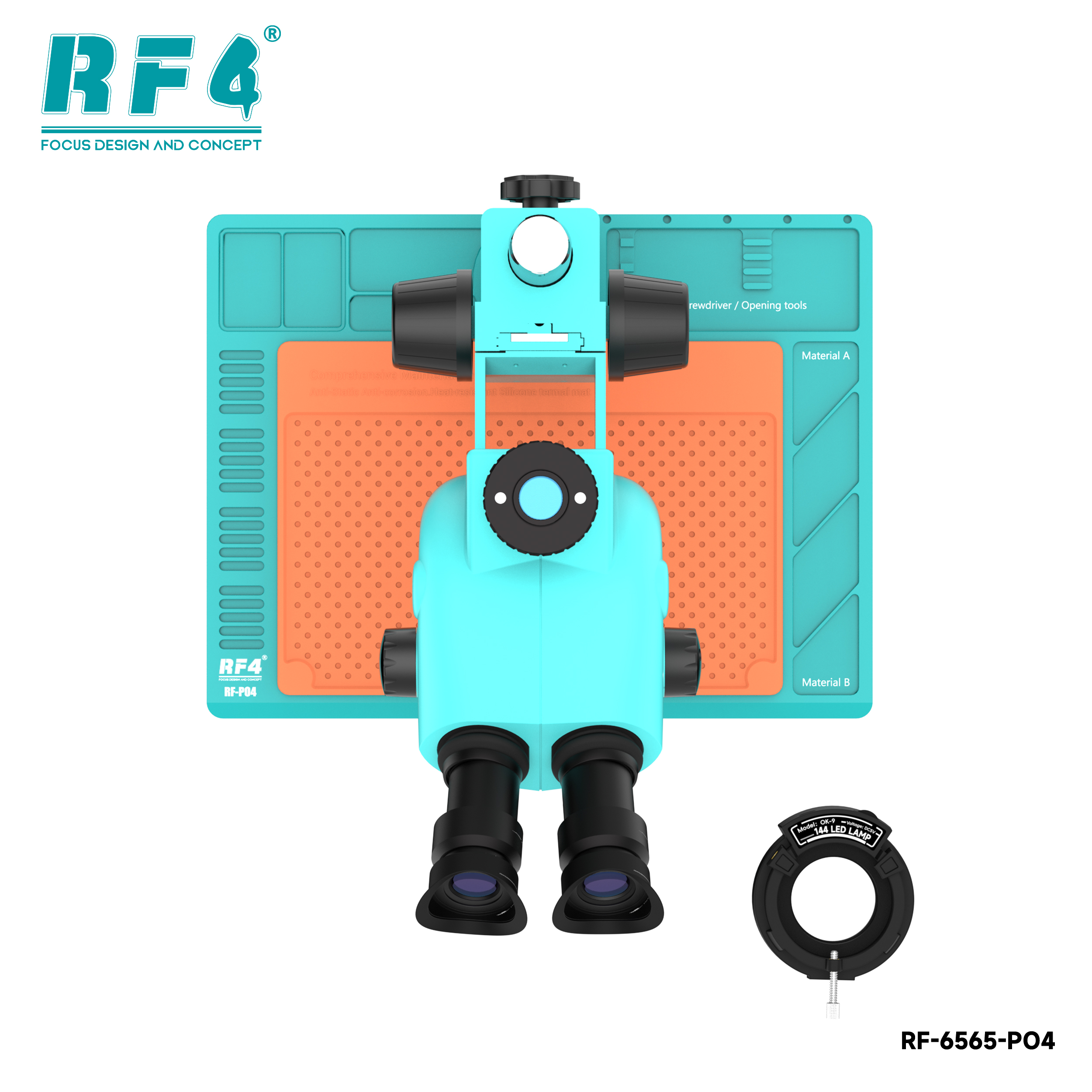

RF6565-PO4 TRINOCULAR MICROSCOPE
Application:
mobile phone repair/electronic repair/Jewelry/carving
Magnification:
6.5-65x
Eyepiece:
10X/22mm
Light source:
144 Adjustable Led ring Light
Color:
turquoise
Working distance:
110mm
Weight:
6.3
Package:
Foam box + carton
Supply Ability
Supply Ability
300 Bag/Bags per Month
Packaging & Delivery
Port
GUANGZHOU
Lead Time:
Quantity(pieces)1 - 10>10
Est. Time(days)7To be negotiated
Specification
item
value
Warranty
1 years
Customized support
OEM
Place of Origin
China

Guangdong
Brand Name
RF4
Model Number
RF6565-PO4
Theory
Stereo Microscope
Drawtube
Trinocular
Product name
RF4 STEREO TRINOCULAR MICROSCOPE
Model Number
RF6565-PO4
Application
mobile phone repair/electronic repair/Jewelry/carving
Magnification
6.5-65x
Eyepiece
10X/22mm
Light source
144 Adjustable Led ring Light
Color
turquoise
Working distance
110mm
Weight
6.3kg
Package
Foam box + carton
Product Description
Magnification:big continuous zoom 6.5X to 65X                                   Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM Adjust the focal Barlow Lens: 0.5X & 0.7&2.0X(optional) Objective: 0.65-6.5X Camera connector:0.5X ctv Monitor and eyepiece. Synchronous zoomCamera:Different models optional Boom Stand: 250mm φ32mm pillar, 250mm*330mm baseAccessories: 144 adjustable led light & dust proof   Lens
Eyepiece
(Standard Configuration)
Auxiliary Observation
0.5X
2X
Working Distance
Working Distance
Working Distance
Magnification
Field of View
Magnification
Field of View
Magnification
Field of View
10X/22
Standard
Configuration
6.5X-65X
3.38-33.8mm
3.25X-32.5X
6.77-67.7mm
13X-130X
1.69-16.9mm
20X/10
13X-130X
0.77-7.7mm
6.5X-65X
1.54-15.4mm
26X-260X
0.38-3.8mm
30X/12
19.5-195X
0.61-6.1mm
9.75-97.5X
1.23-12.3mm
39-390X
0.31-3.1mm
144 adjustable LED lights
Input
AC 100-240V , 50/60Hz
Output
DC 12V , max 700mA
Max output
4.5W-6W
Plug
EU/US
LED
144 LEDs
Illumination
Over 30000-35000Lux
Color Temperature
6000-7000K
Light color
White
Inside diameter
60mm
Package
144-LED Lamp Ring
Power Adapter (Default EU Plug)
Packing & Delivery
Packing Detail:carton within foam inside or wooden box;
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
Our Services
1.We Will provide you User manual in English or operating videos for free ;
2.24 hours technical support by email or vedio call via wechat or skype;
3. Free training to make sure you master the operating of our products;
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
