RF-7050-PO4

Buy now
Product details
Overview
Quick Details
Warranty:
1 years
Customized support:
OEM
Place of Origin:
Guangdong, China
Brand Name:
Kailiwei
Model Number:
RF7050-PO4
Size:
43*33*25cm
Material:
Plastic
Magnification:
7-50X
Product Name:
RF7050-PO4
Feature:
Beautiful and unique design, ultra wide Angle vision
Objective:
0.7-5.0X
Head:
45-degree inclined 360-degree swiveling trinocular
Accessories:
144 adjustable led light & dust proof Lens
Camera:
Different models optional
Certification:
IECEE
Usage:
Mobile Phone Repair
Eyepiece:
WF10X/22MM
Monitor and eyepiece:
Synchronous zoom
Supply Ability
Supply Ability
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
RF4 Microscope Trinocular 7-50X electronic repair microscope for mobile phone repairing China good operating microscope standard deliver package
Port
Guangzhou
Lead Time:
Quantity(sets)1 - 100>100
Est. Time(days)7To be negotiated
Overview
RF4 Microscope Trinocular 7-50X electronic repair microscope for mobile phone repairing China good operating microscope

Magnification:continuous zoom 7X to 50X                                   Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM Barlow Lens: 0.5X & 0.7&2.0X(optional) Objective: 0.7-5.0X Camera connector：1/2ctv Monitor and eyepiece. Synchronous zoomCamera:Different models optional Stand：250*330 mmAccessories: 144 adjustable led light & dust proof   Lens
Product Description

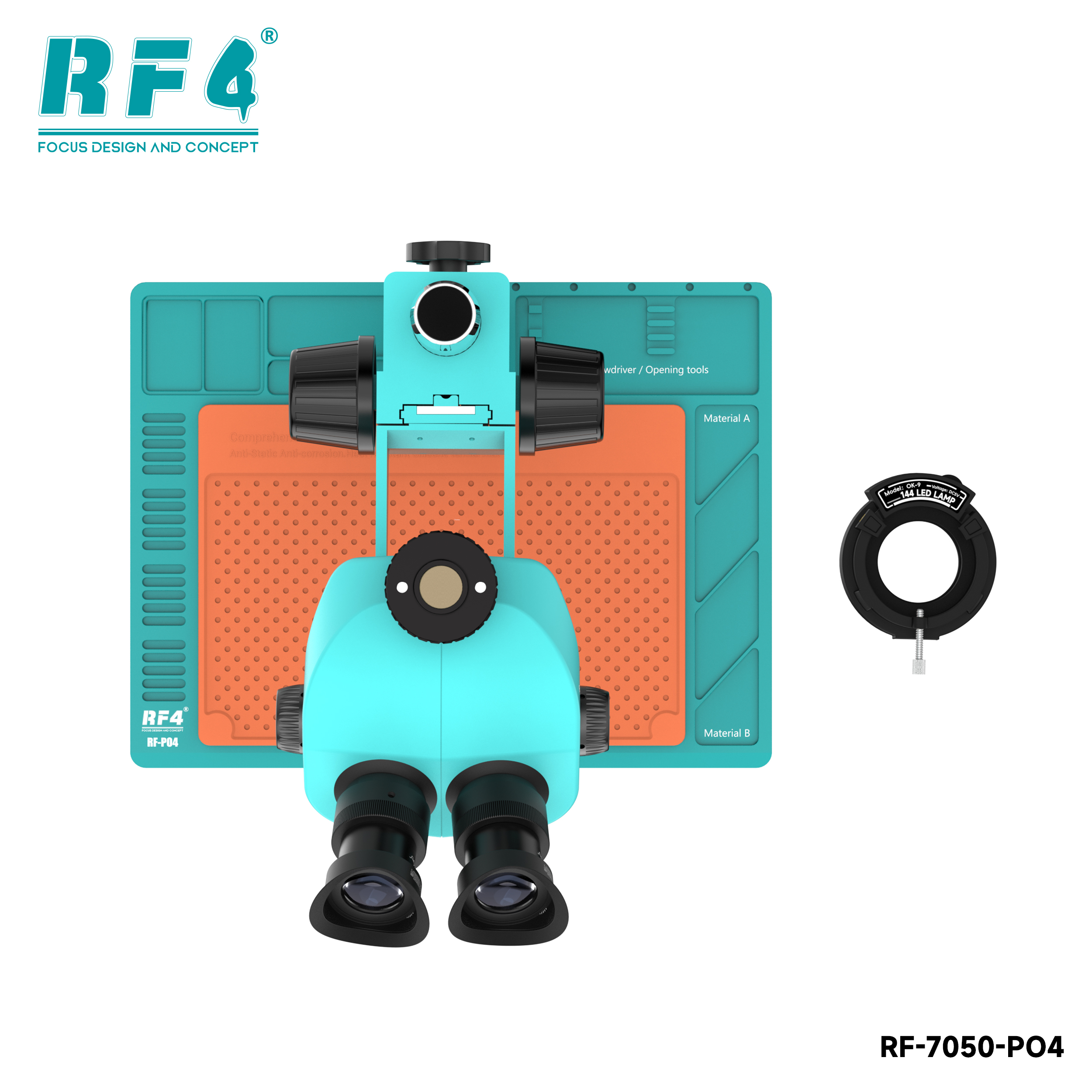

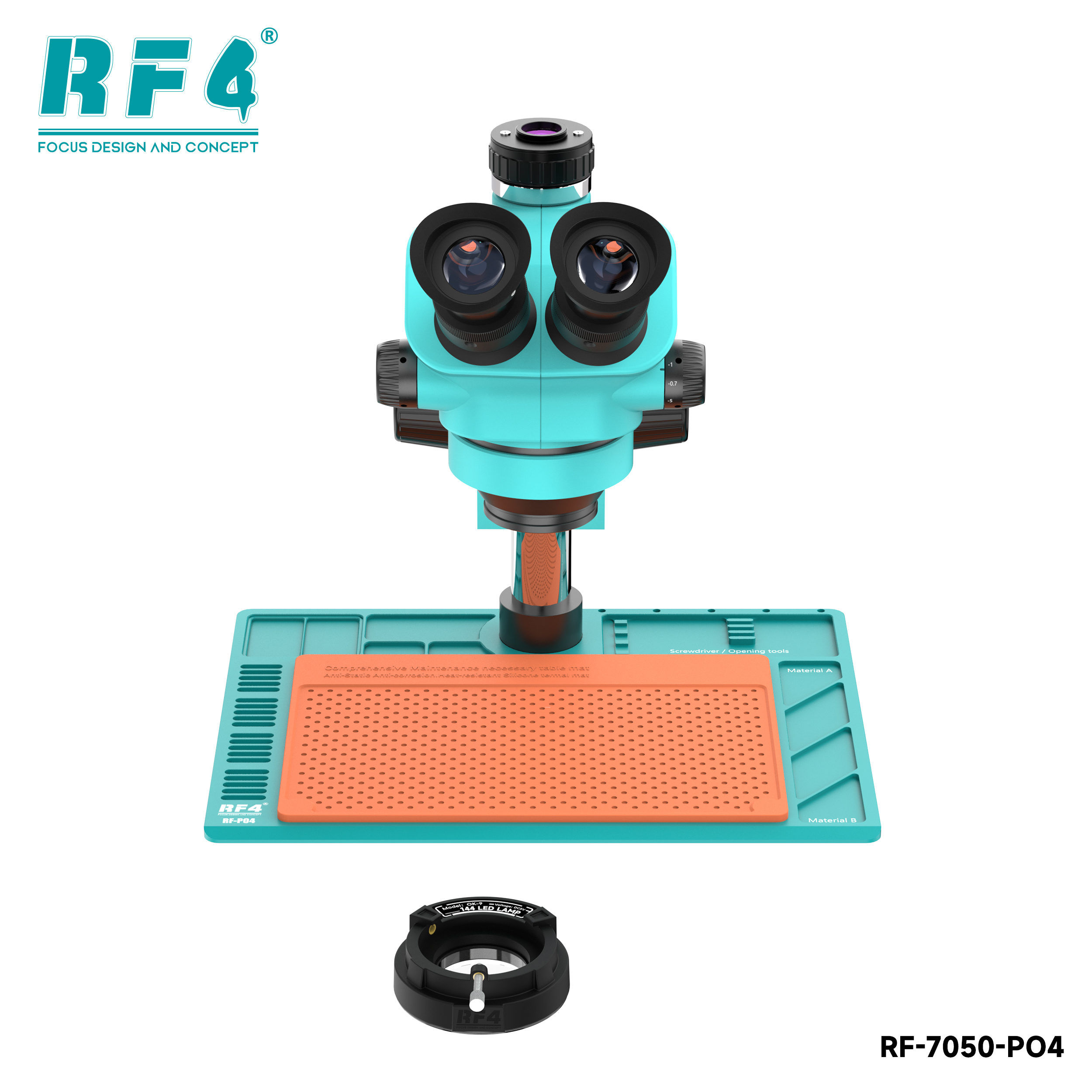

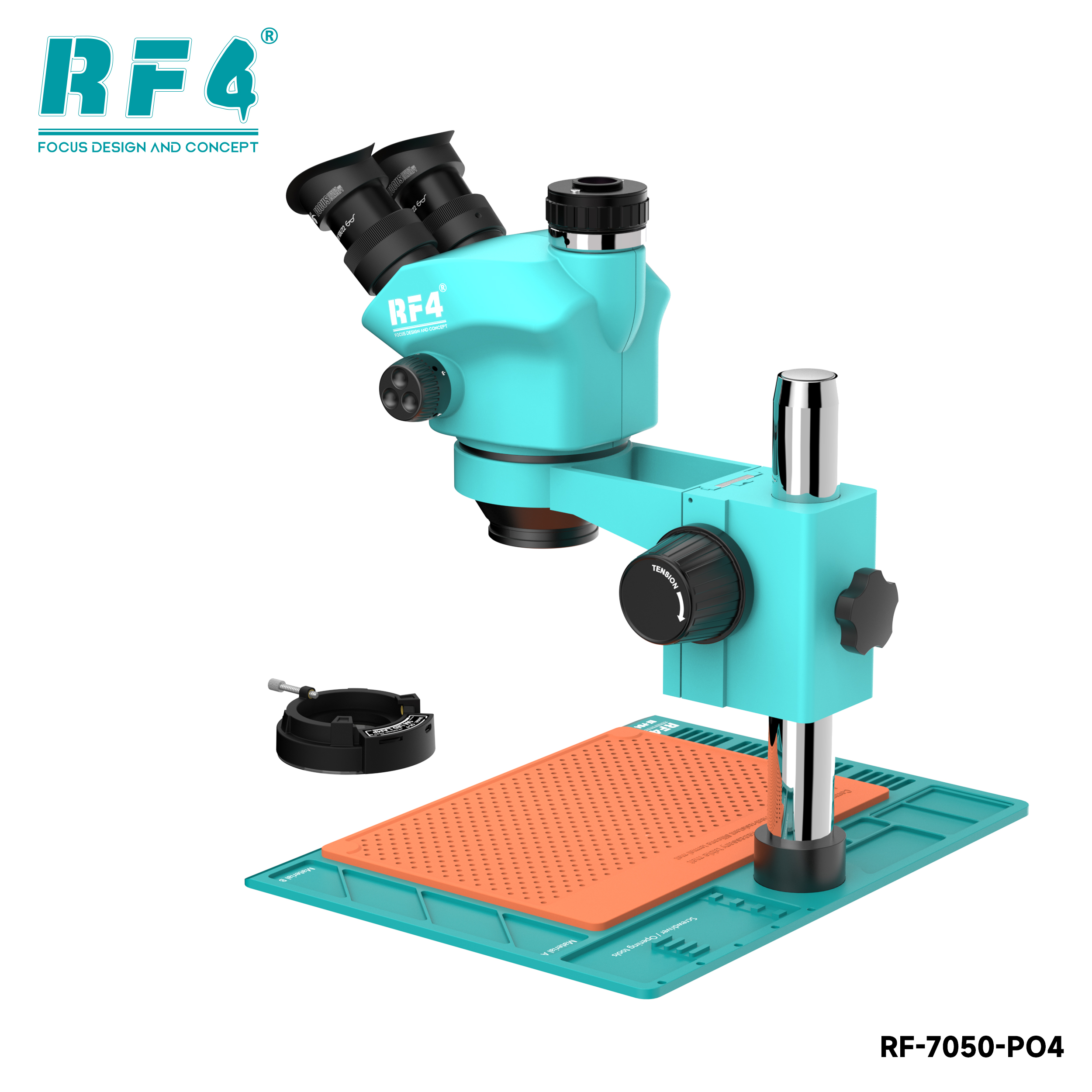

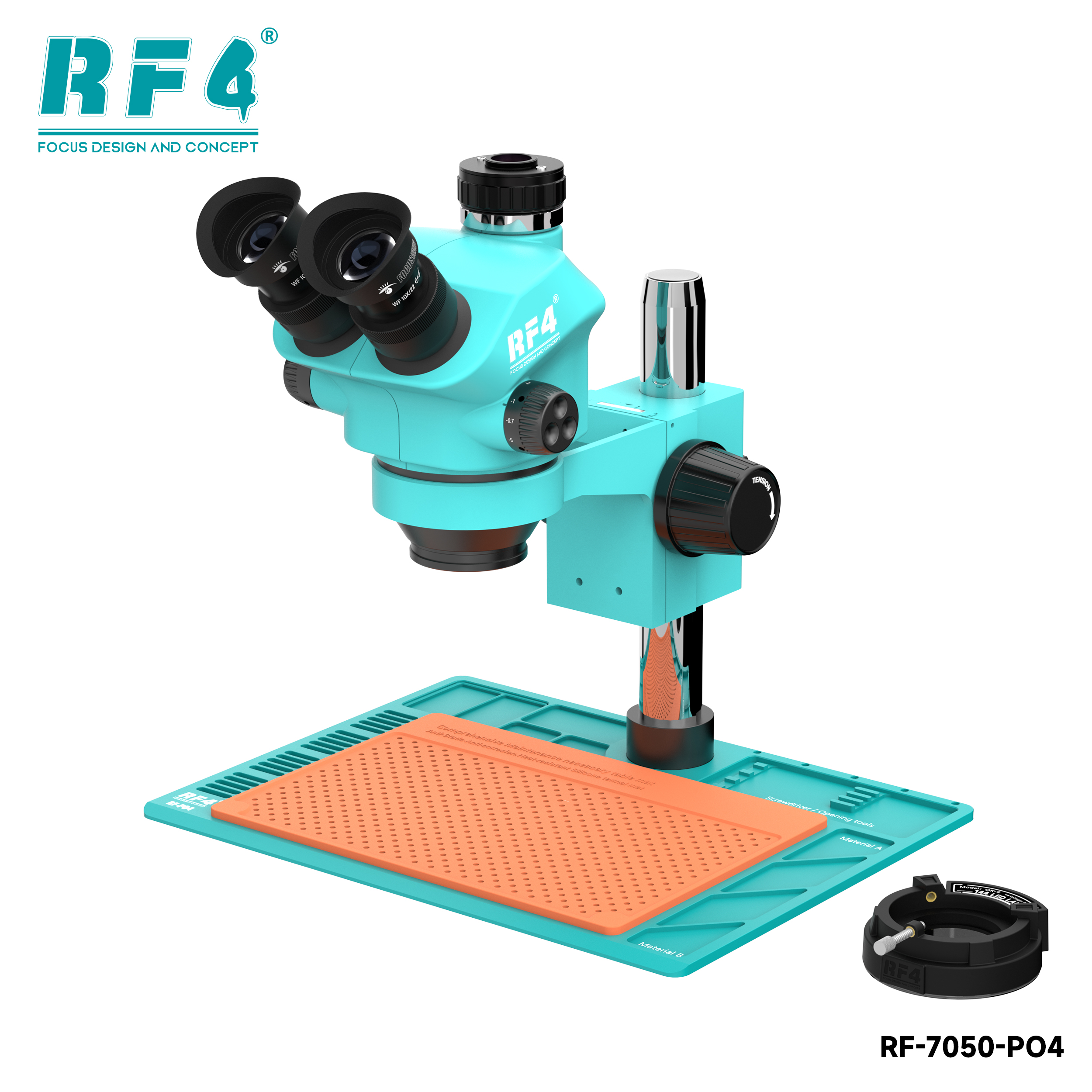

Microscopic structure

1 Eyepiece Shield
2 Eyepieces
3 Zoom Control Knob
4 Microscope Objective
5 silicone pad
6 Aluminium alloy base
7 Round Pillar
8 Focusing knob

Support parameters

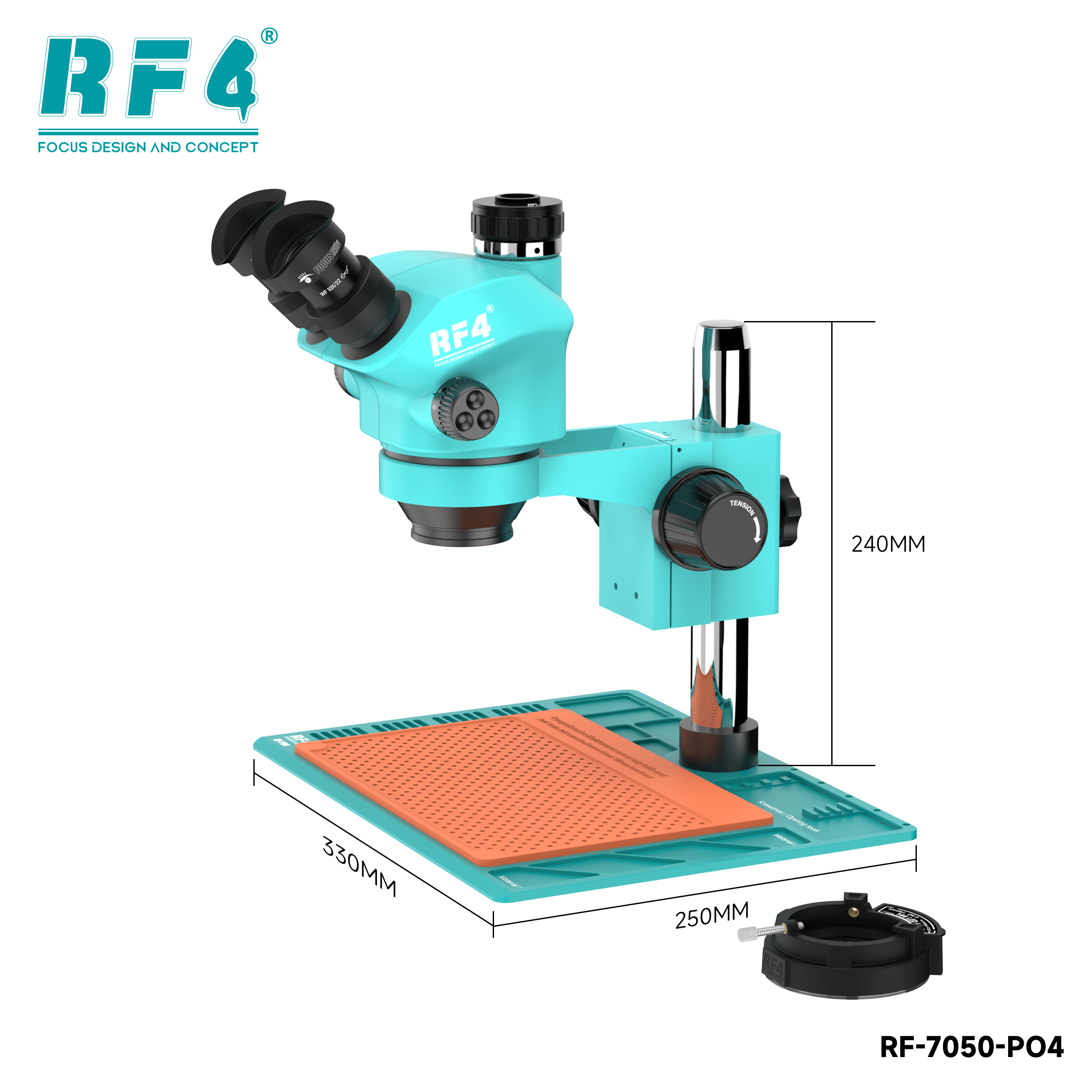

Column aperture: Φ32mmLens aperture: Φ76mmCenter distance: 155mmLifting range: 50mm

The base parameters


240mm φ32mm pillar410*300mm
repair base Size：
250*330mm

Wide-angle eyepieces 10X/22



Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes

0.5X   CTV

1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet.2The adapter ring can use LCD to focus, this kind of focus method is manual focus.3 The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.4   Weight: 0.09kg.
Different eyepieces match different magnifications of the same objective lens
Our Services
1.We Will provide you User manual in English or operating videos for free .
2.24 hours technical support by email or vedio call via wechat or skype.
3. Free training to make sure you master the operating of our products.
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Warranty:
1.all of our products will be checked one by one before shipping
2.customer should check the package when receiving
3.all machine wihin 1 year free warranty, but here is not warranty if that's obviously caused by man-made. free technical support always.
4. due to the low vaule of the accessories,we don't accept any return or exchange.
Packaging & Shipping
Packing Detail:carton within foam inside or wooden box
Shipping: 2~3 day after confirm payment
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.
We can arrange shipment by sea. Minium CBM requirement : 1 CBM
