RF-6565TV-2KC1-S010

Buy now
Product details
Overview
Quick Details
Warranty:
1 years
Place of Origin:
Guangdong, China
Brand Name:
RF4
Model Number:
RF6565TV-2KC1-S010
Theory:
Stereo Microscope
Drawtube:
Trinocular
Product name:

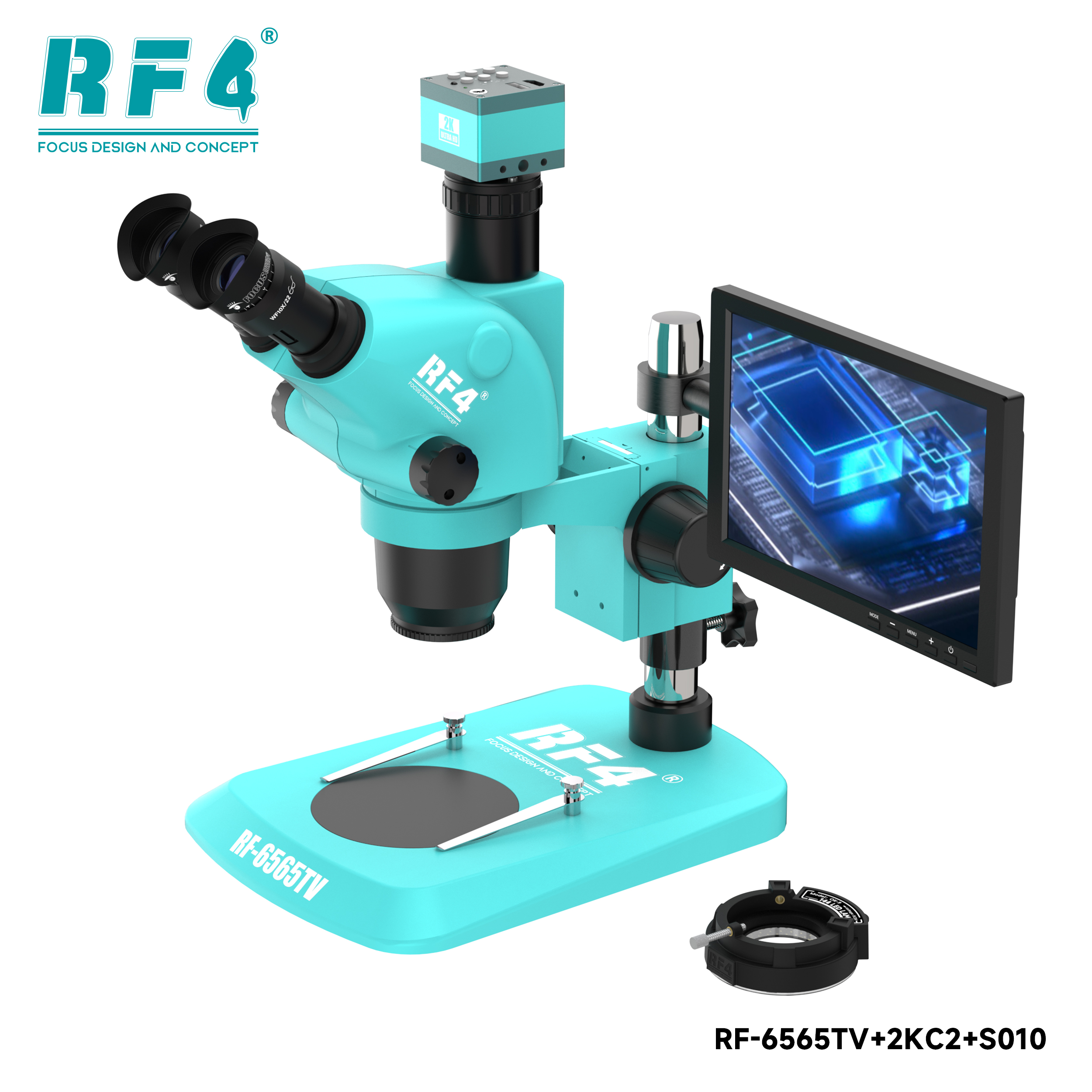

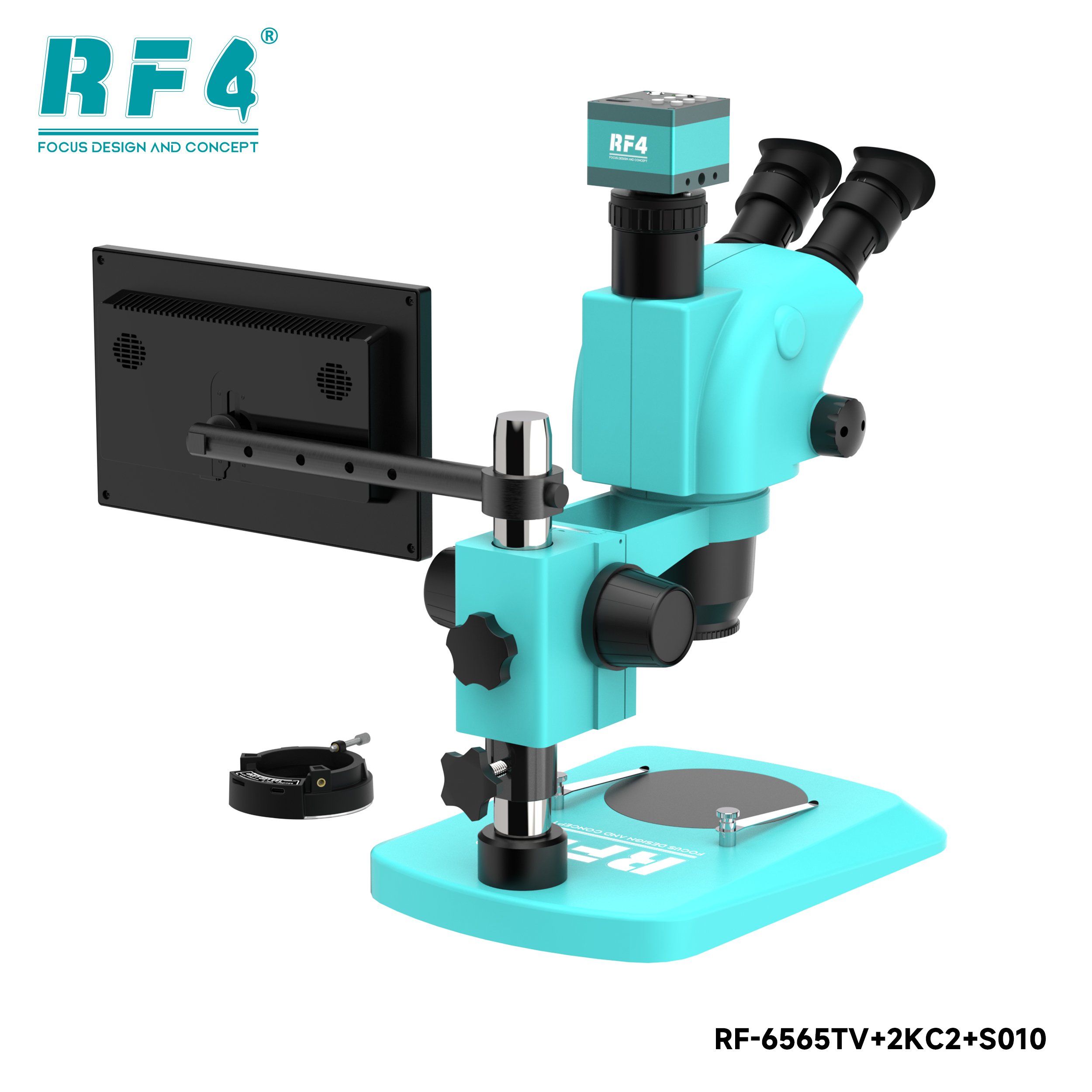

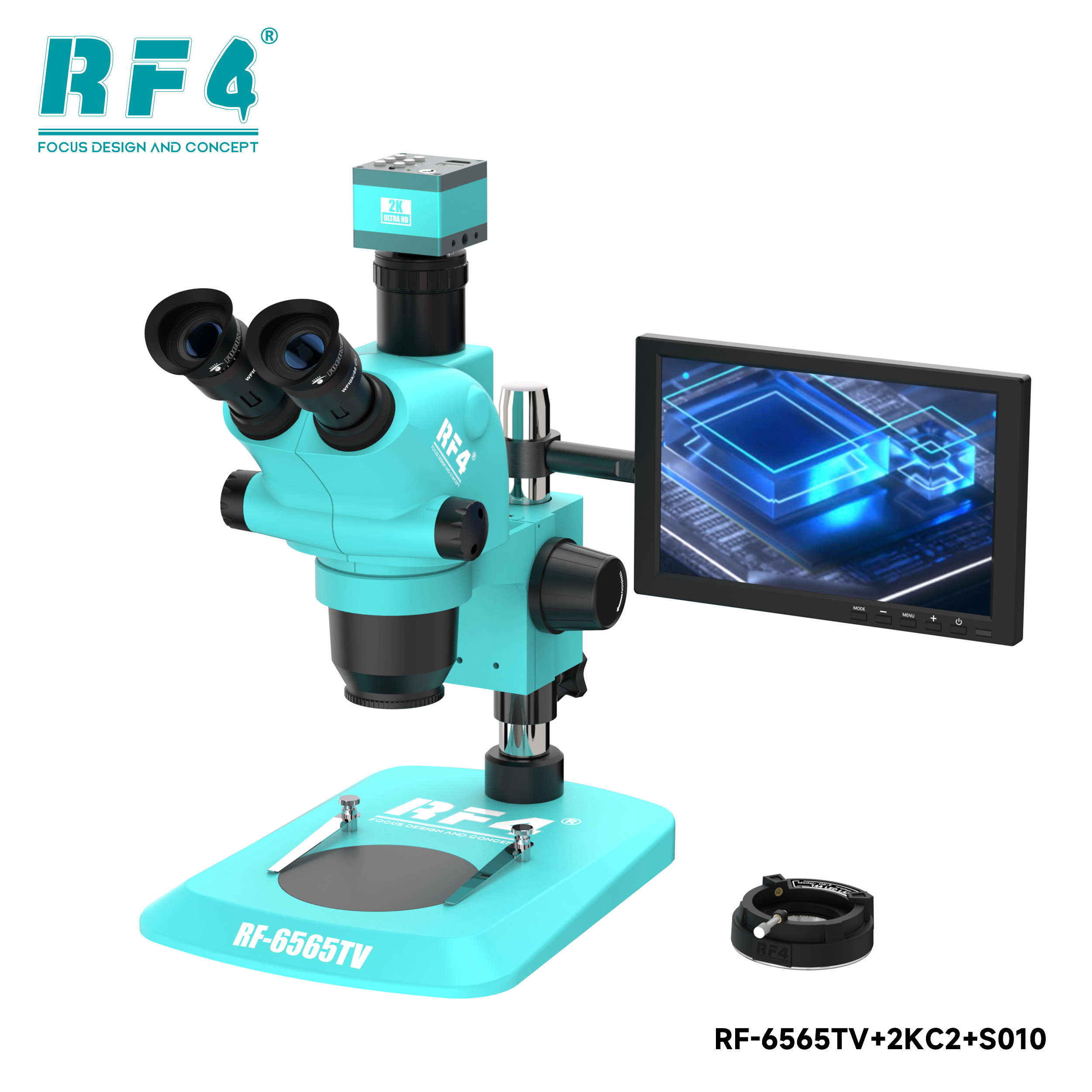

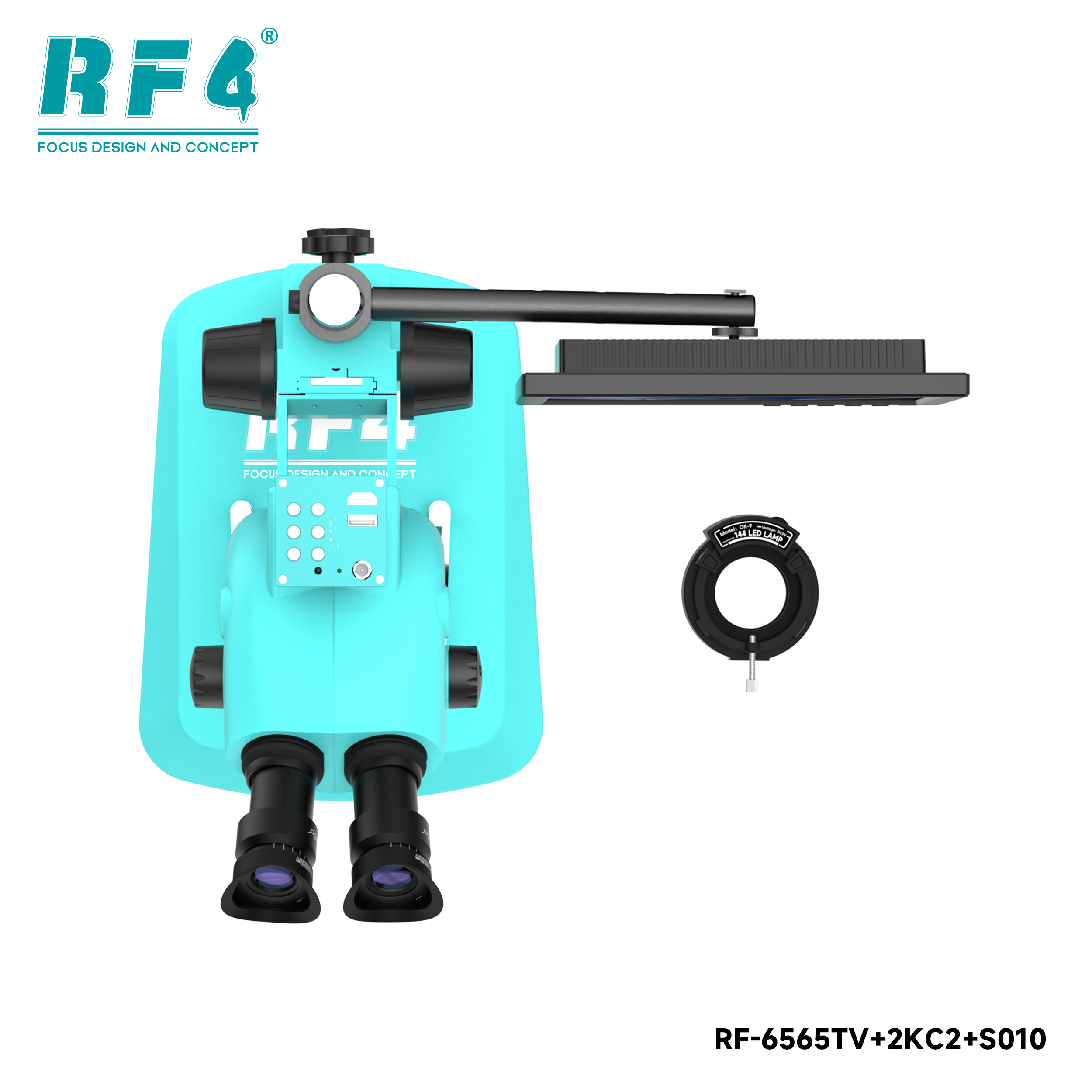

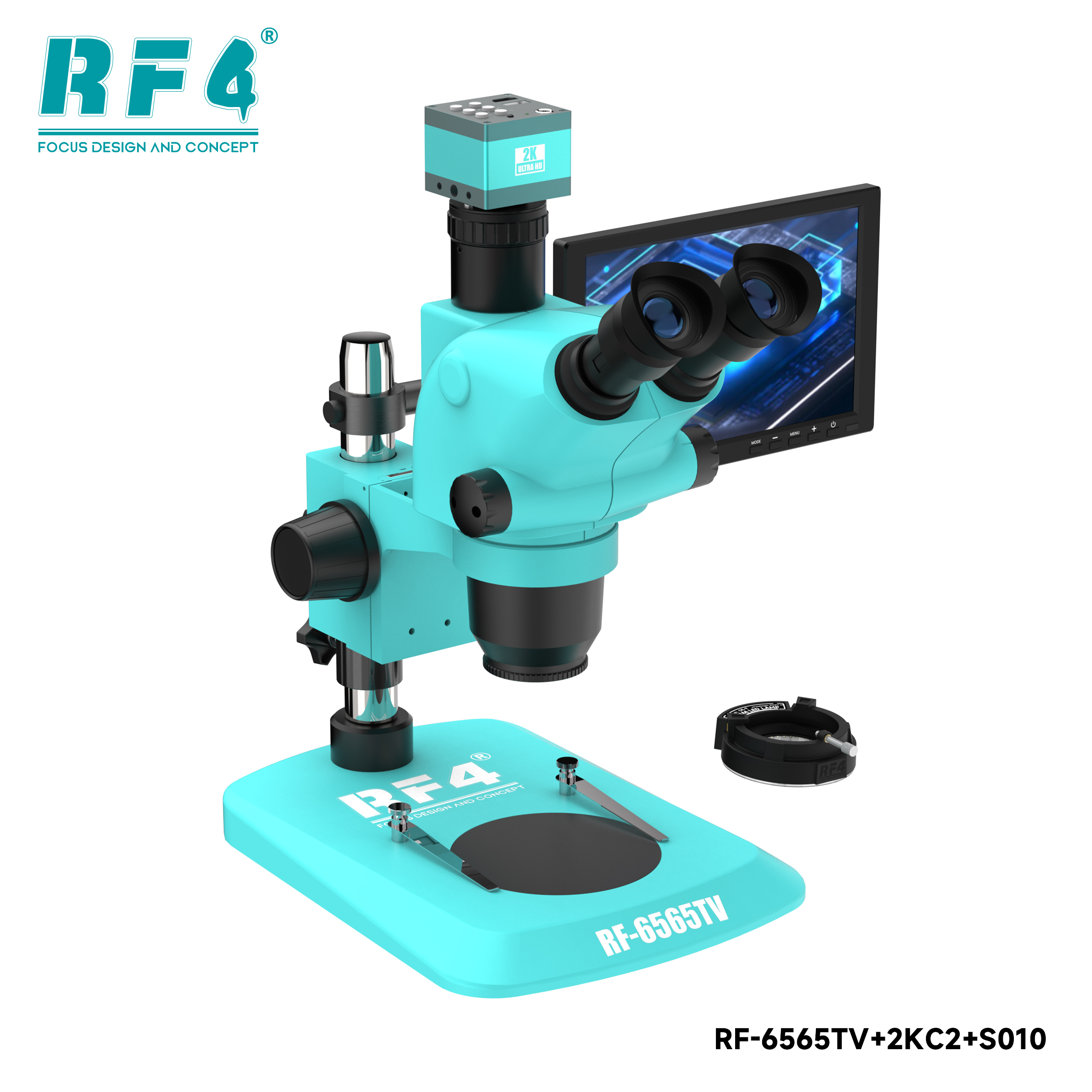

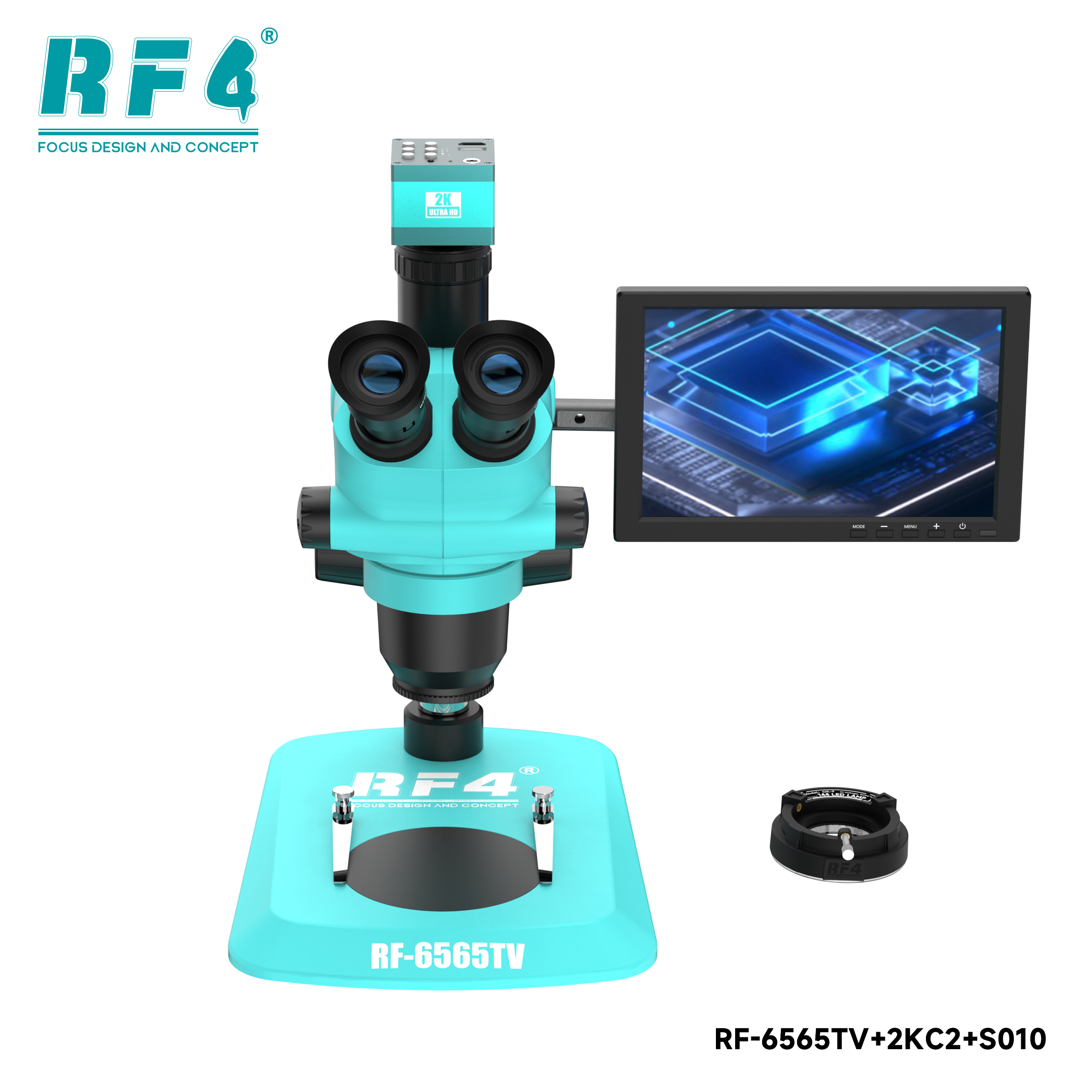

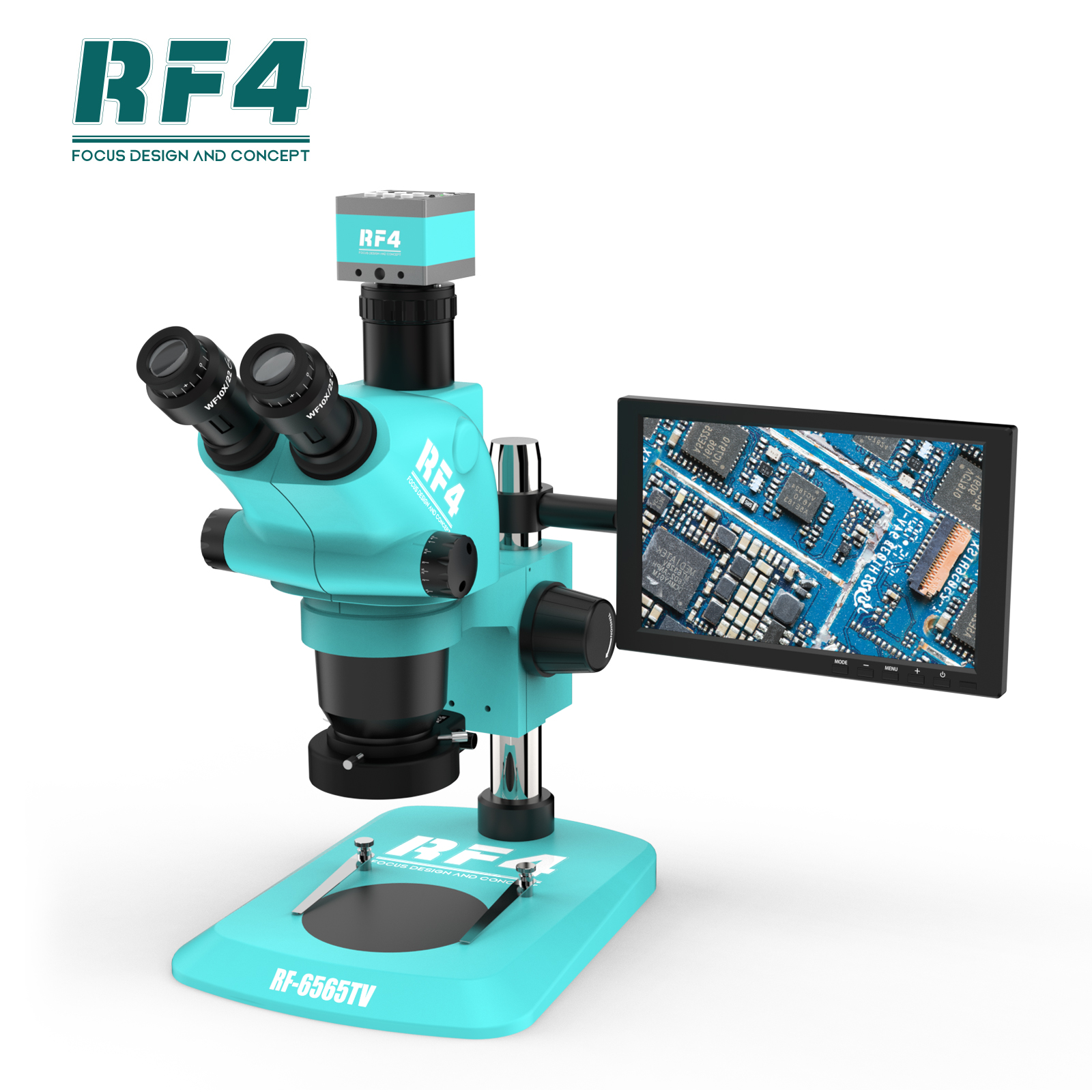

RF6565TV-2KC-S010 trinocular zoom 2K HD camera microscopes
Magnification:
6.5-65X
Eyepiece:
10X22mm
Light source:
144 LED Ring Light
Application:
mobile repair, jewelry, carving, dental, etc.
Color:
Green
Working distance:
110mm
Weight:
7.4kg
Camera:
2K,HD output
display:
10 inch,HD/VGA input
Supply Ability
Supply Ability
1000 Piece/Pieces per Month
Packaging & Delivery
Port
guangzhou
Lead Time:
Quantity(sets)1 - 10>10
Est. Time(days)14To be negotiated
Specification
item
value
Warranty
1 years
Certification
CE
Customized support
OEM
Place of Origin
China

Guangdong
Brand Name
RF4
Model Number
RF6565TV-2KC-S010
Theory
Stereo Microscope
Drawtube
Trinocular
Product name
RF6565TV-2KC-S010 trinocular zoom 2K HD camera microscopes
Magnification
6.5-65X
Eyepiece
10X22mm
Light source
144 LED Ring Light
Application
mobile repair, jewelry, carving, dental, etc.
Color
Green
Working distance
110mm
Objective
2X/0.5X(buy extra)
Weight
7.4kg
Camera
2K HD output

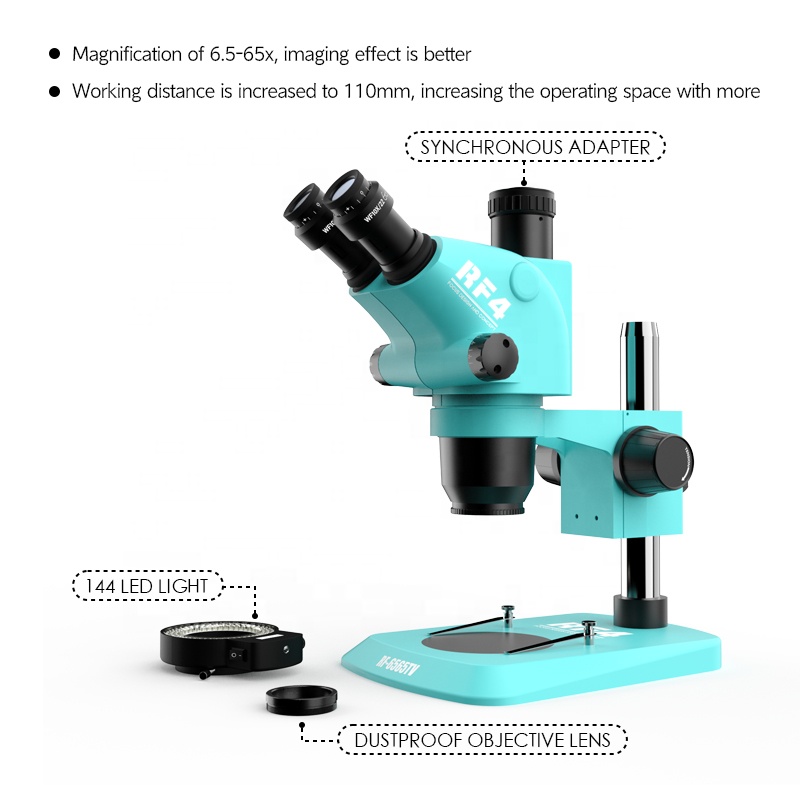

Product Description
Magnification:big continuous zoom 6.5X to 65X
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM Adjust the focal
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 0.65-6.5X
Camera connector：0.5X ctv
Monitor and eyepiece. Synchronous zoom
Camera:2k camera HD output

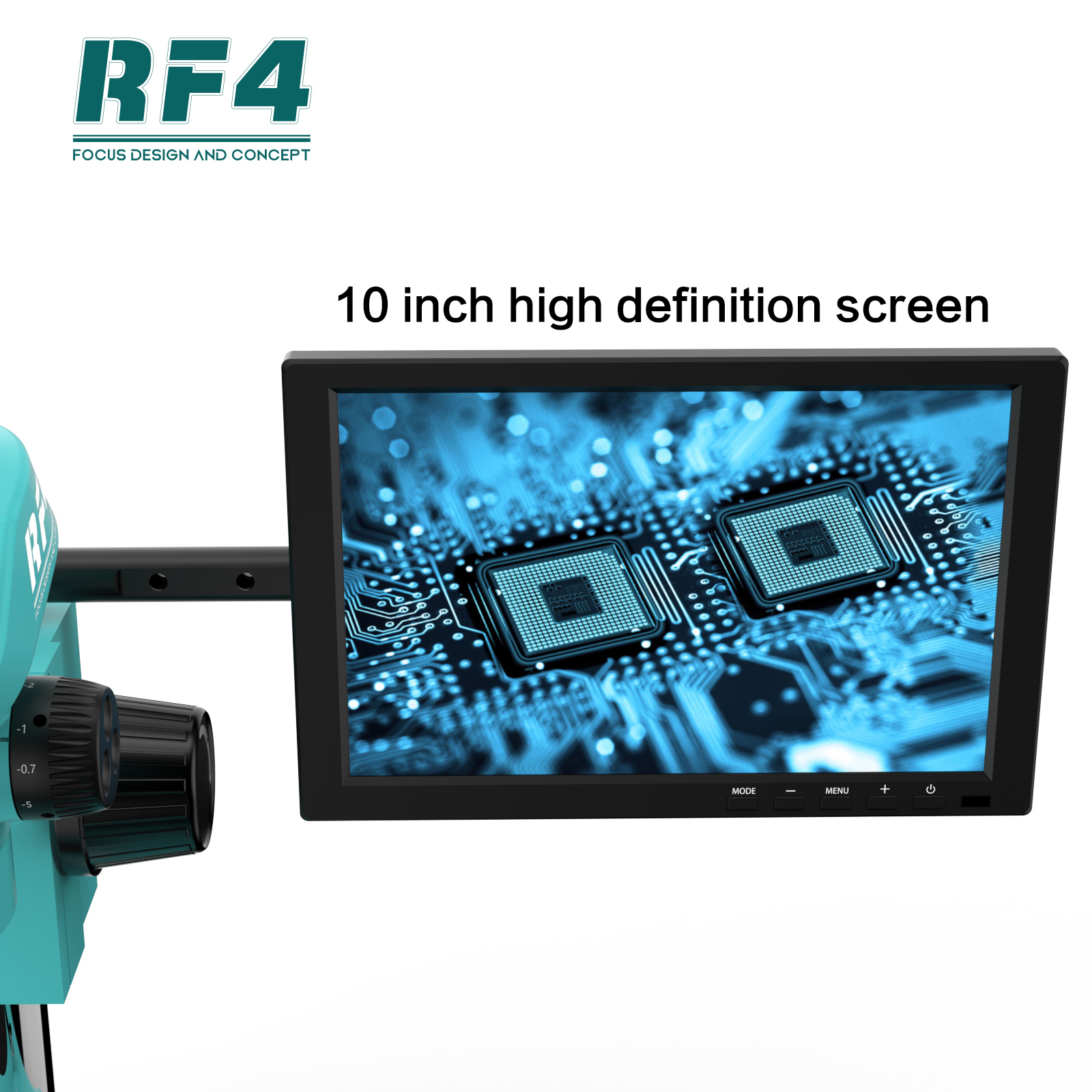

monitor:10inch,HD/VGA input
Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate
Accessories: 144 adjustable led light & dust proof Lens
Eyepiece
（Standard Configuration）
Auxiliary Observation
0.5X
2X
Working Distance
Working Distance
Working Distance
Magnification
Field of View
Magnification
Field of View
Magnification
Field of View
10X/22
Standard
Configuration
6.5X-65X
3.38-33.8mm
3.25X-32.5X
6.77-67.7mm
13X-130X
1.69-16.9mm
20X/10
13X-130X
0.77-7.7mm
6.5X-65X
1.54-15.4mm
26X-260X
0.38-3.8mm
30X/12
19.5-195X
0.61-6.1mm
9.75-97.5X
1.23-12.3mm
39-390X
0.31-3.1mm
LED ring light
instructions
Input
AC 100-240V , 50/60Hz
Output
DC 12V , max 700mA
Max output
4.5W-6W
Plug
EU/US
LED
144 LEDs
Illumination
Over 30000-35000Lux
Color Temperature
6000-7000K
Light color
White
Inside diameter
60mm
Package
144-LED Lamp Ring
Power Adapter (Default EU Plug)

Camera parameters

1. Imaging element 2K 1/2.8 inch CMOS, effective pixel 1920X1080, frame rate 60 frames/SEC, resolution 900 lines.
2. Using CS lens interface, can choose any CS lens interface.
3.Power input: +5V to +12V DC, +5V maximum working current 400mA, +12V maximum working current 200mA.
4.HD: Monitor HD cable interface
5.USB: USB drive port
6.It has the function of taking pictures and recording videos
Packing & Delivery
Packing Detail:carton within foam inside or wooden box;
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
Our Services
1.We Will provide you User manual in English or operating videos for free ;
2.24 hours technical support by email or vedio call via wechat or skype;
3. Free training to make sure you master the operating of our products;
4. OEM/ODM accept . But the MOQ of OEM/ODM is 50 sets.
