Overview Quick Details - Warranty:
1 year
- Place of Origin:
Guangdong, China
- Brand Name:
RF4
- Model Number:
RF6565TVD-YS010W
- Theory:
Stereo Microscope
- Drawtube:
Trinocular
- Product name:

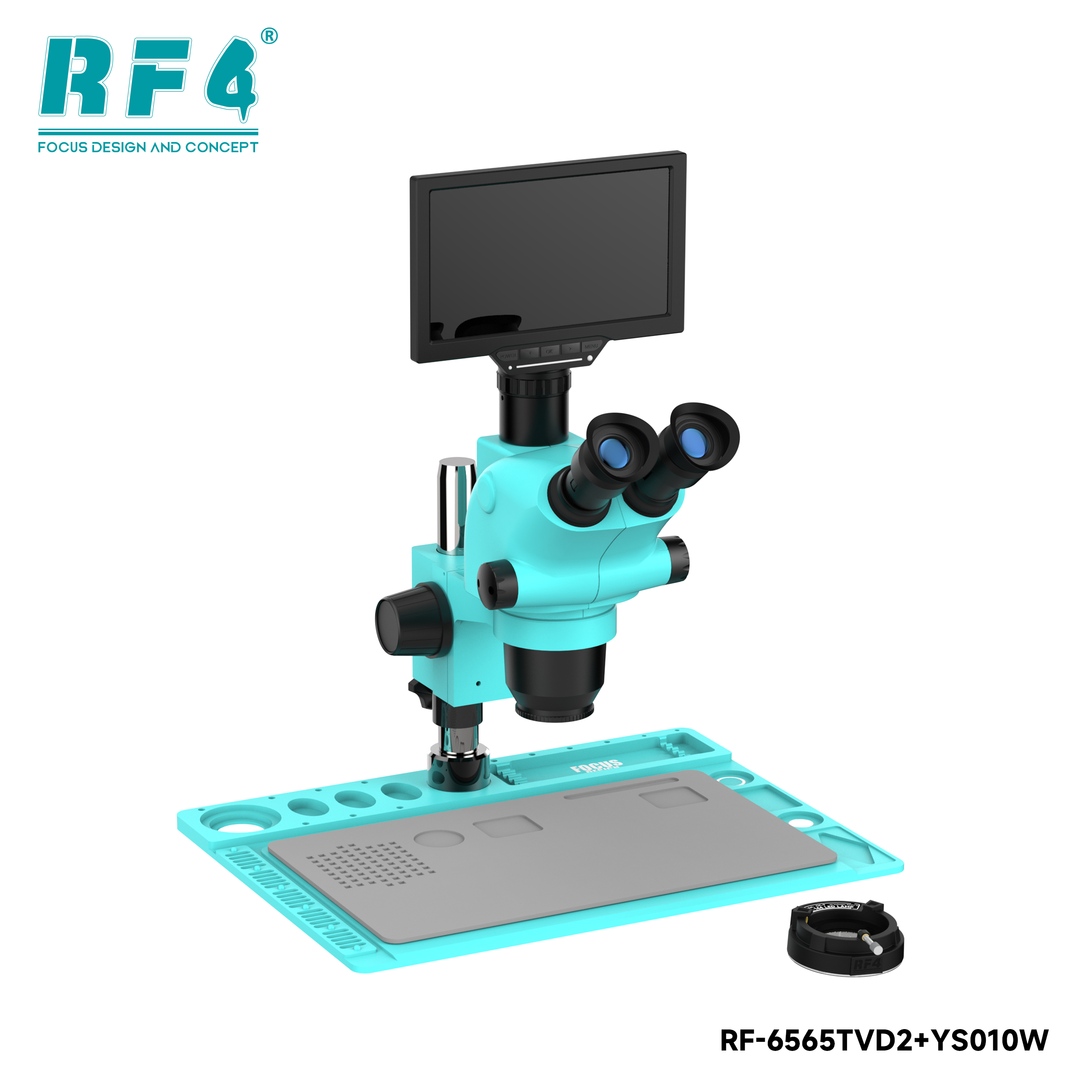

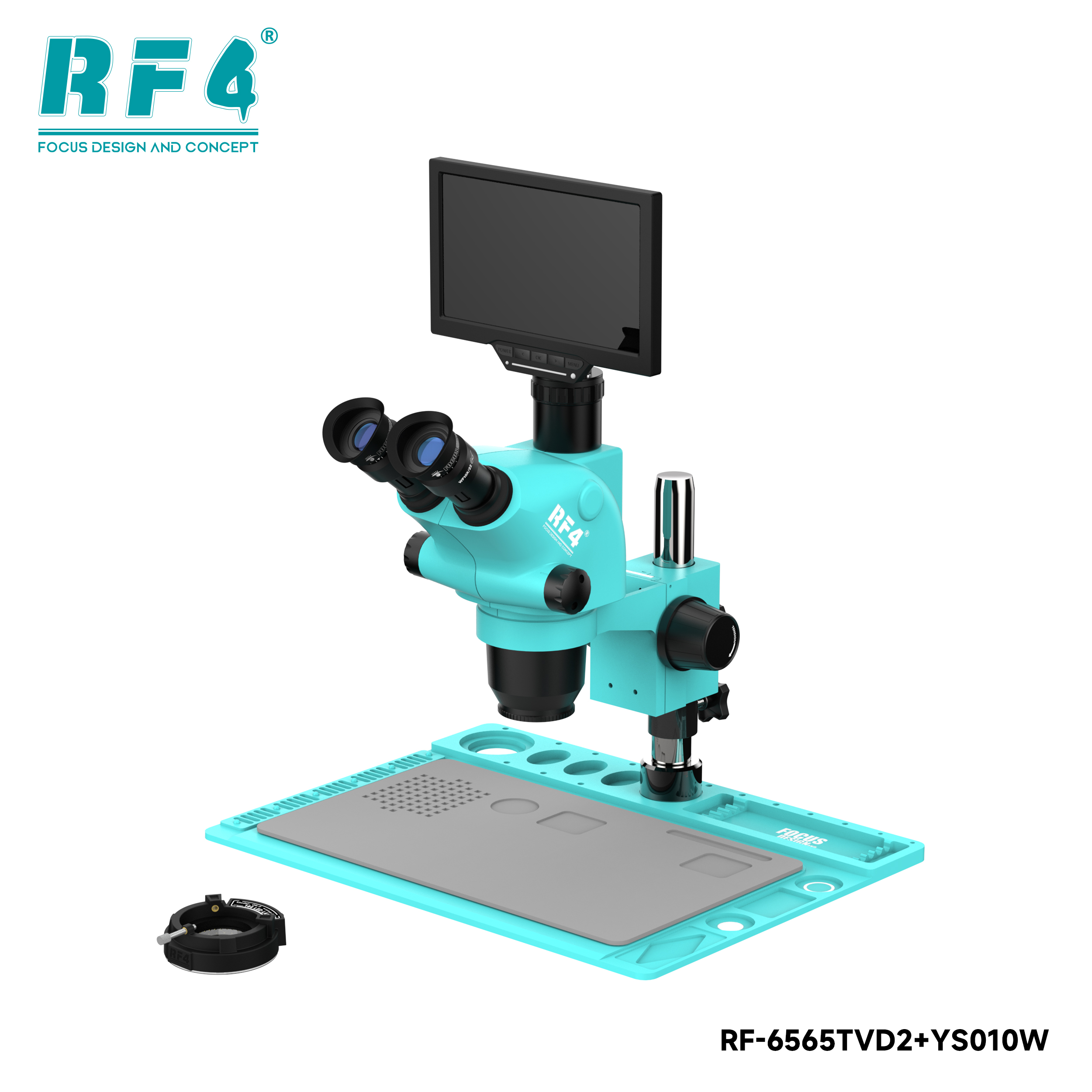

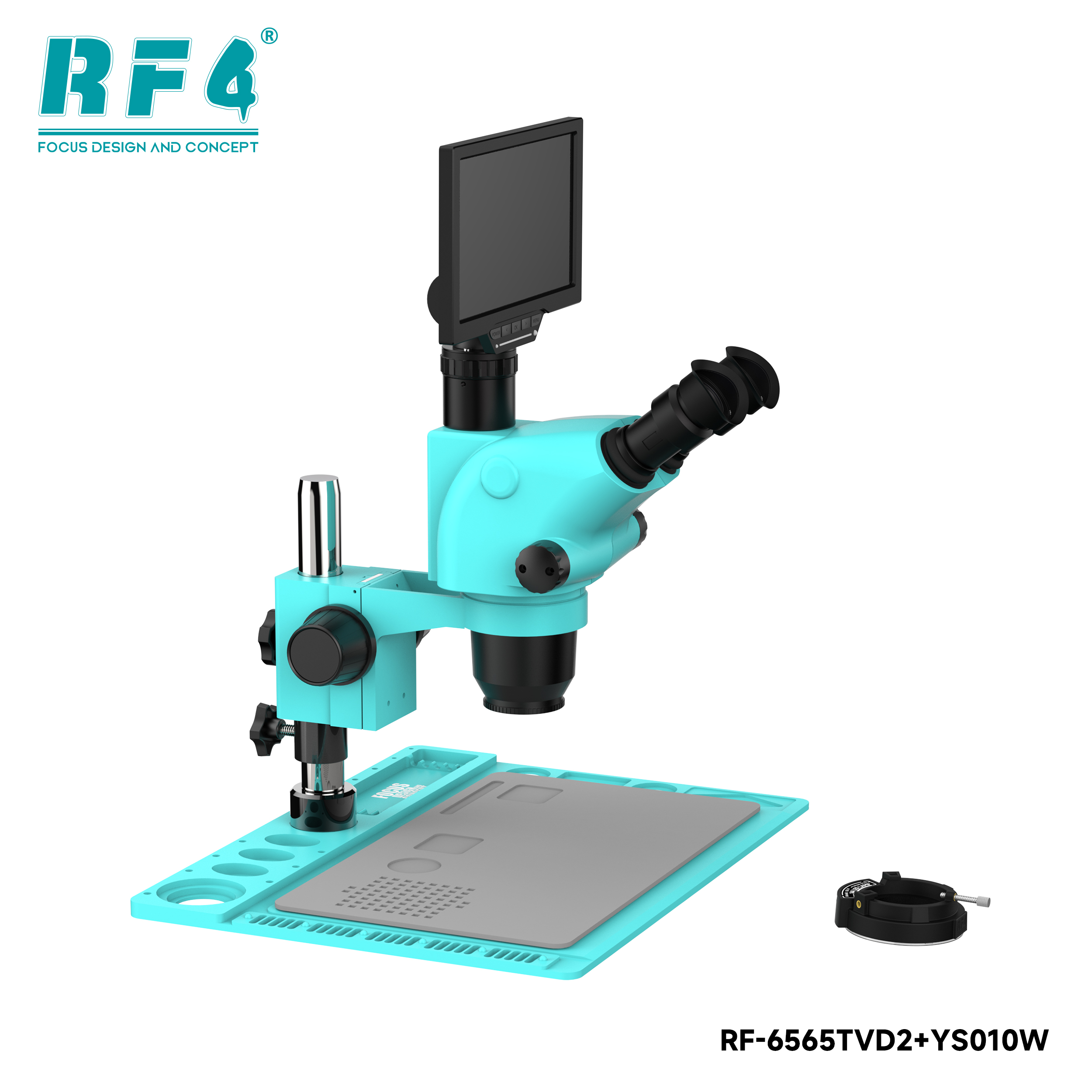

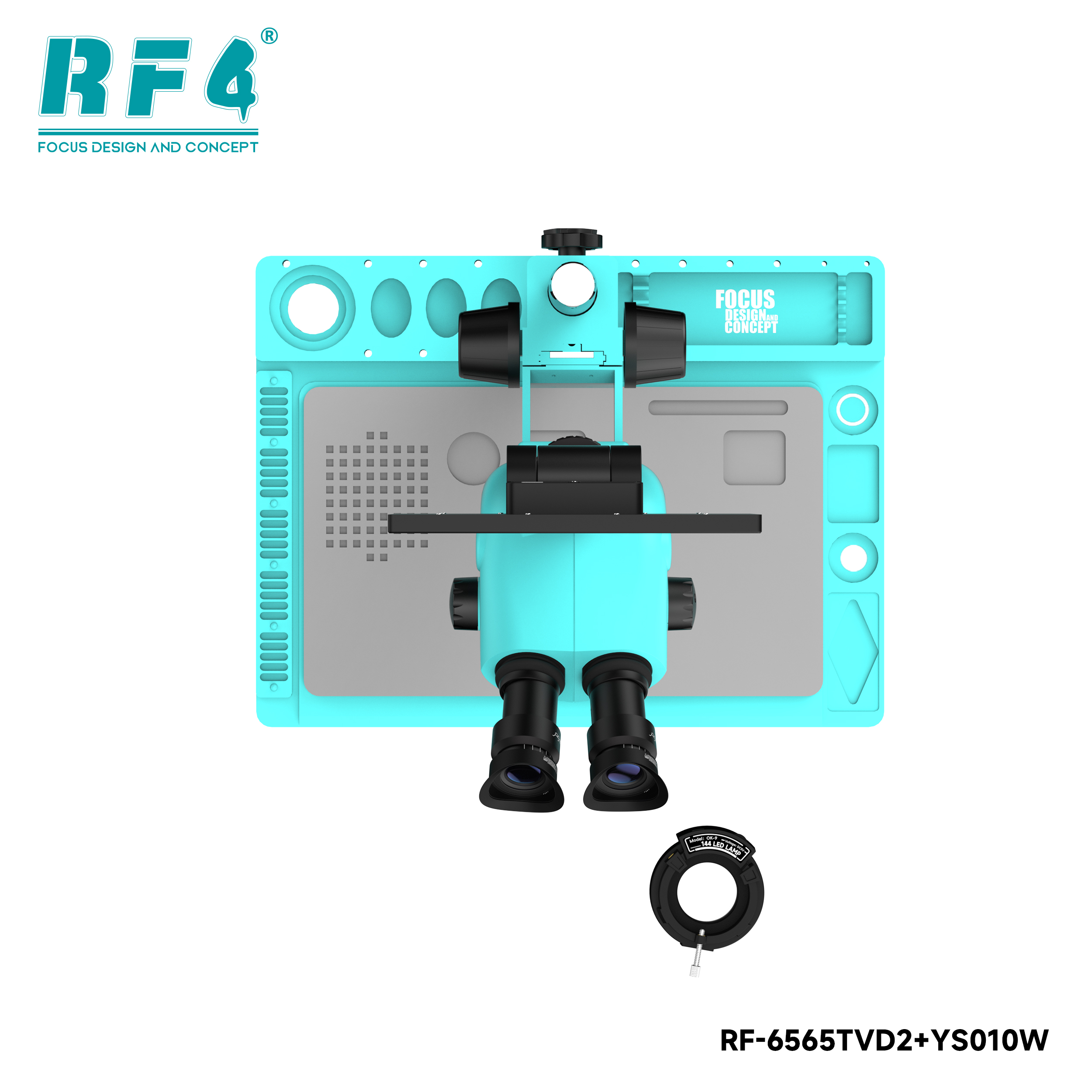

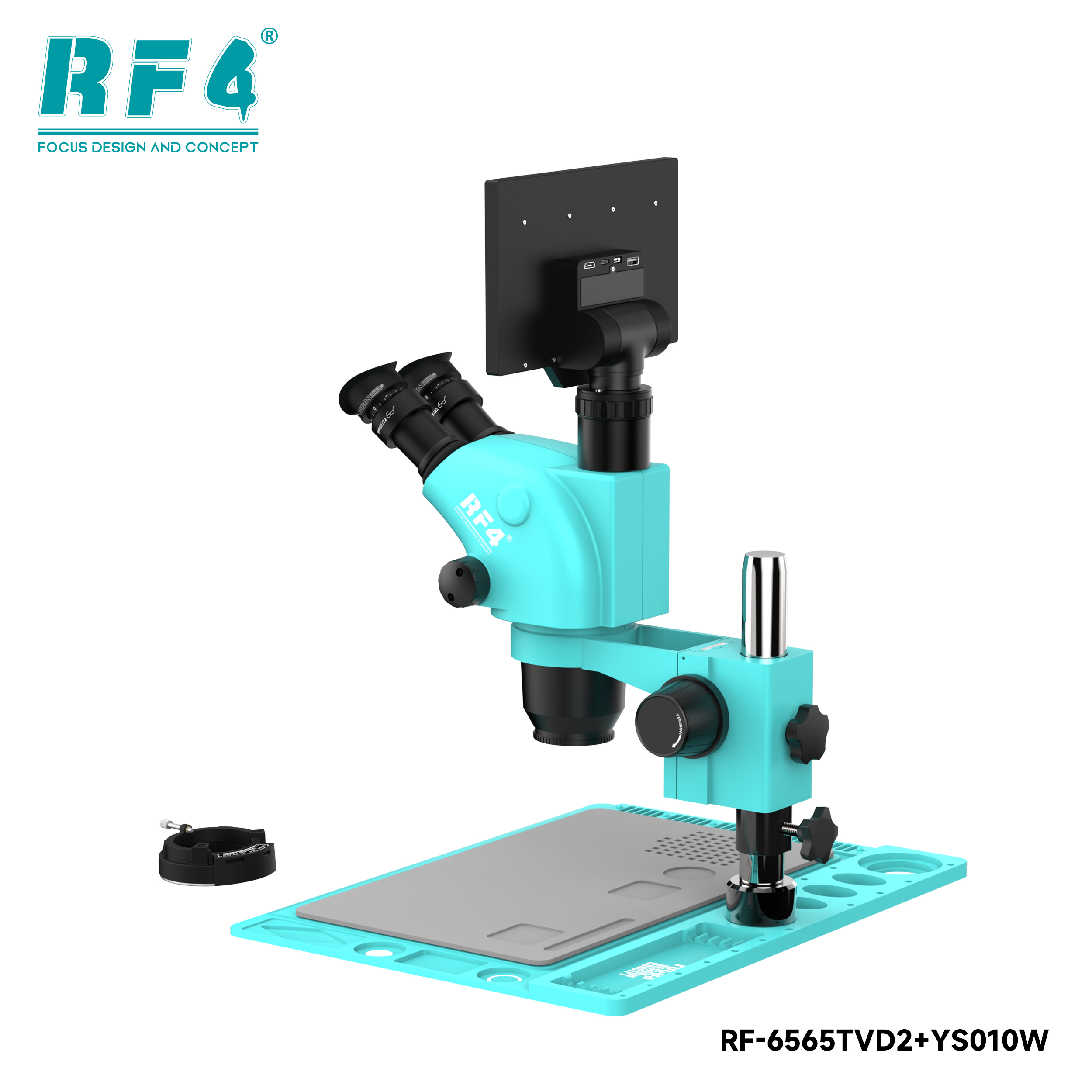

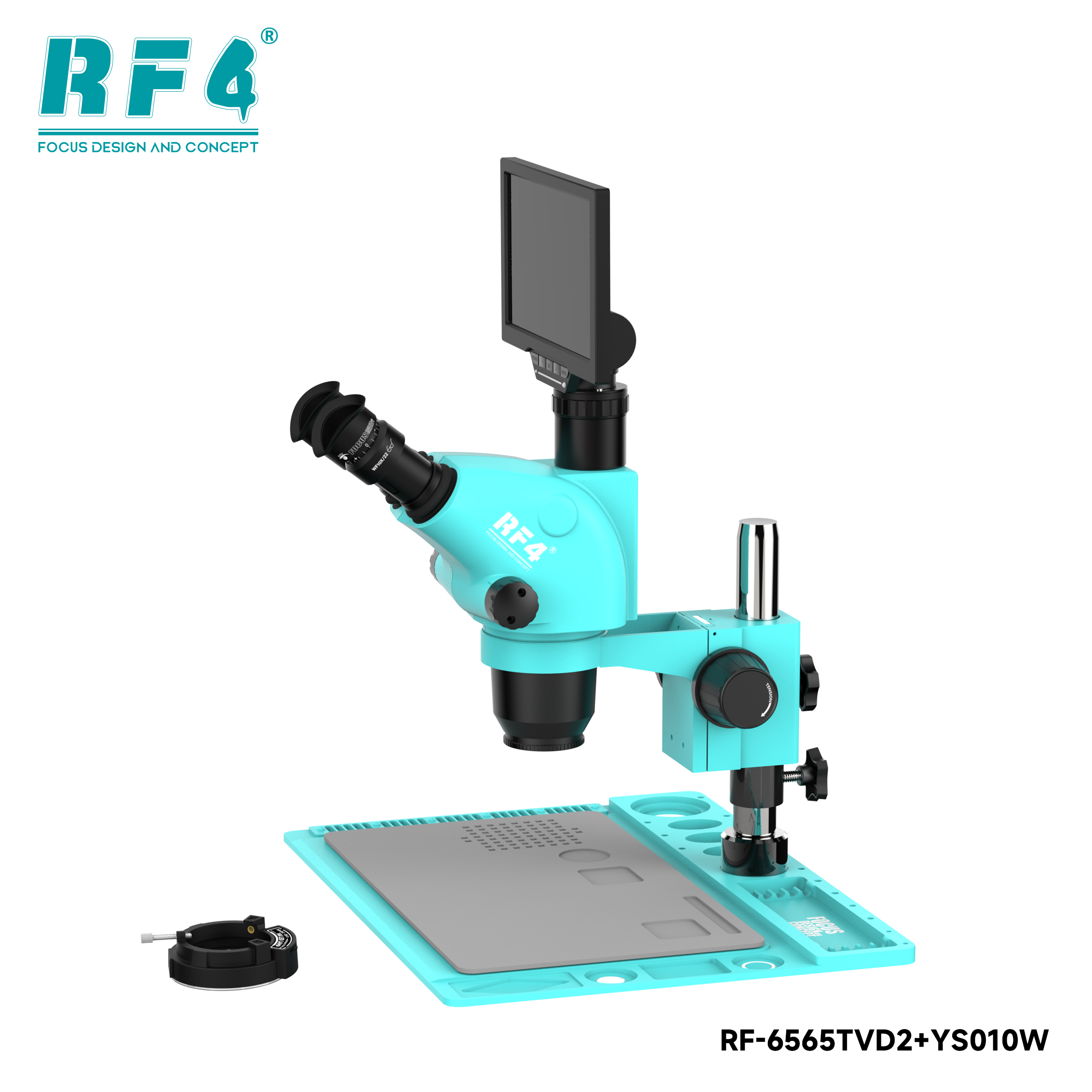

RF4 6.5-65X trinocular microscope with camera monitor 10-INCH
- Magnification:
6.5-65X
- Light source:
144 LED ring light
- Color:
green
- Eyepiece:
10X/22
- Working distance:
110mm
- moniter output:
HD
- moniter Pixel:
16mp
- Accessories:
Dustproof lens
- Application:
PCB repair/jewelry/carving
Supply Ability - Supply Ability
- 2000 Piece/Pieces per Month
Packaging & Delivery - Port
guangzhou
- Lead Time:
| Quantity(sets) | 1 - 10 | >10 | | Est. Time(days) | 14 | To be negotiated |
item | value | Warranty | 1 year | Place of Origin | China |
| Guangdong | Brand Name | RF4 | Model Number | RF6565TVD2-YS010W | Theory | Stereo Microscope | Drawtube | Trinocular | Product name | RF4 6.5-65X trinocular microscope with camera monitor 10-INCH | Magnification | 6.5-65X | Light source | 144 LED ring light | Color | green | Eyepiece | 10X/22 | Working distance | 110mm | moniter output | HD | moniter Pixel | 16mp | Accessories | Dustproof lens | Application | PCB repair/jewelry/carving |

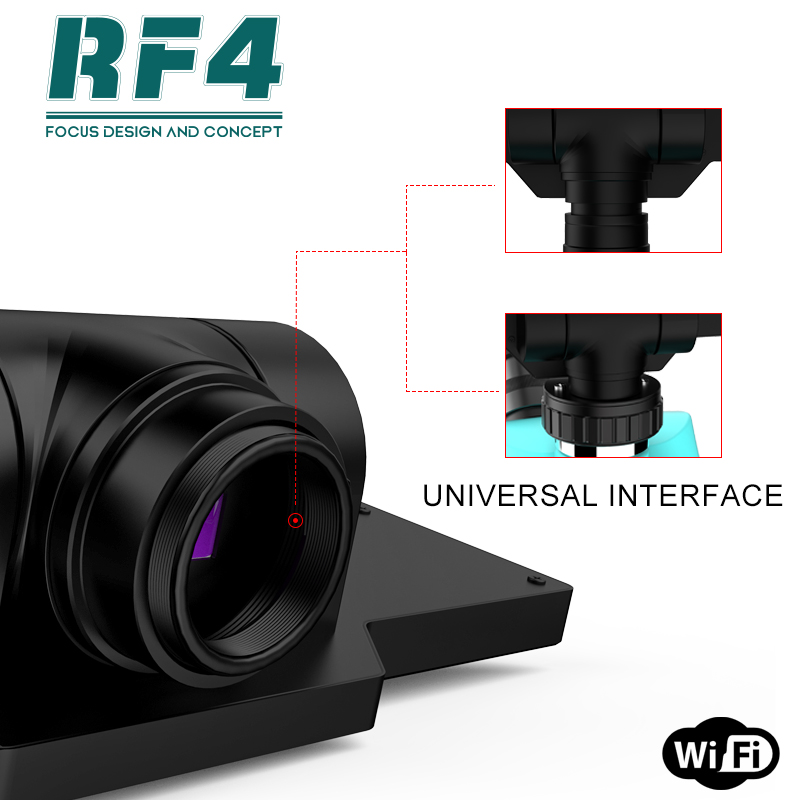

Magnification:continuous zoom 6.5X to 65X Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM Barlow Lens: 0.5X & 0.7&2.0X(optional) Objective: 0.65-6.5X Camera connector：0.5X ctv Monitor and eyepiece. Synchronous zoomCamera:16mp wifi camera building-in displayBoom Stand: 280mm φ32mm pillar, 300mm*400mm repair big base with silicone padAccessories: 144 adjustable led light & dust proof Lens | | | | | | | | | | | | | | 10X/22 Standard Configuration | | | | | | | | | | | | | | | | | | | | |
LED ring light | instructions | Input | AC 100-240V , 50/60Hz | Output | DC 12V , max 700mA | Max output | 4.5W-6W | Plug | EU/US | LED | 144 LEDs | Illumination | Over 30000-35000Lux | Color Temperature | 6000-7000K | Light color | White | Inside diameter | 60mm | Package | 144-LED Lamp Ring Power Adapter (Default EU Plug) |

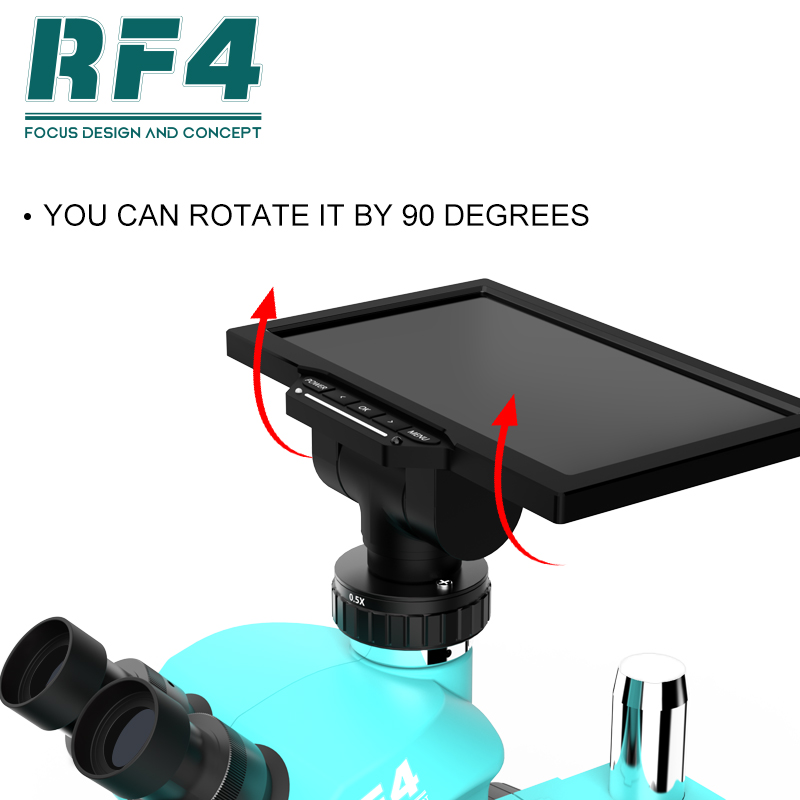

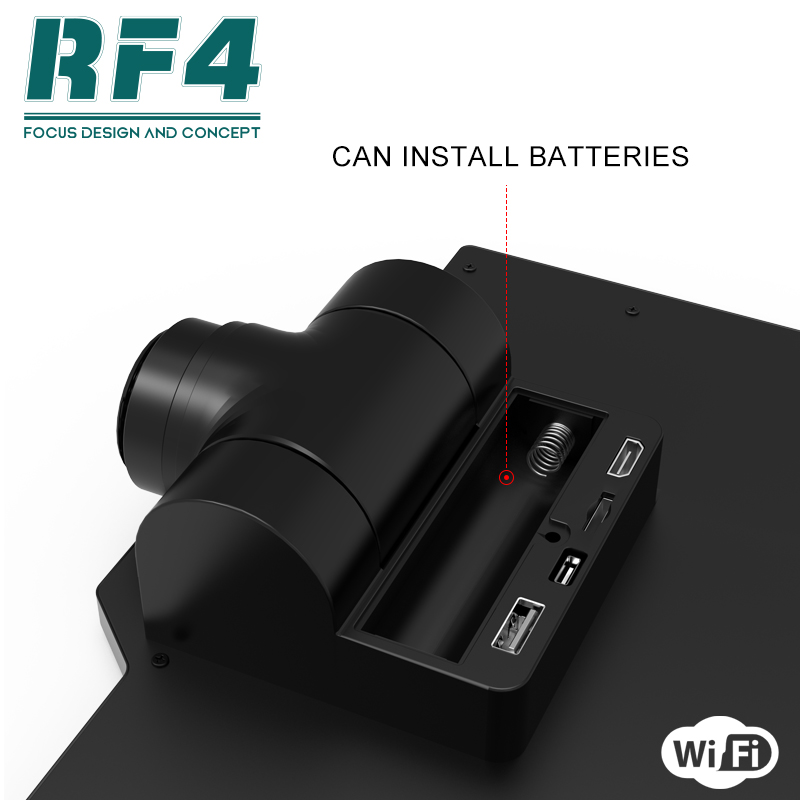

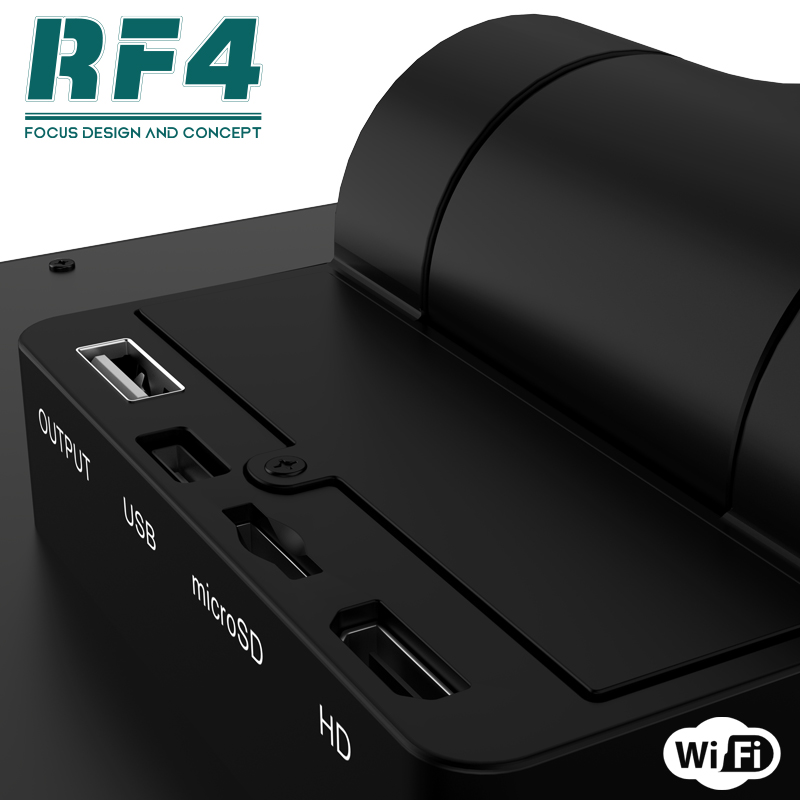

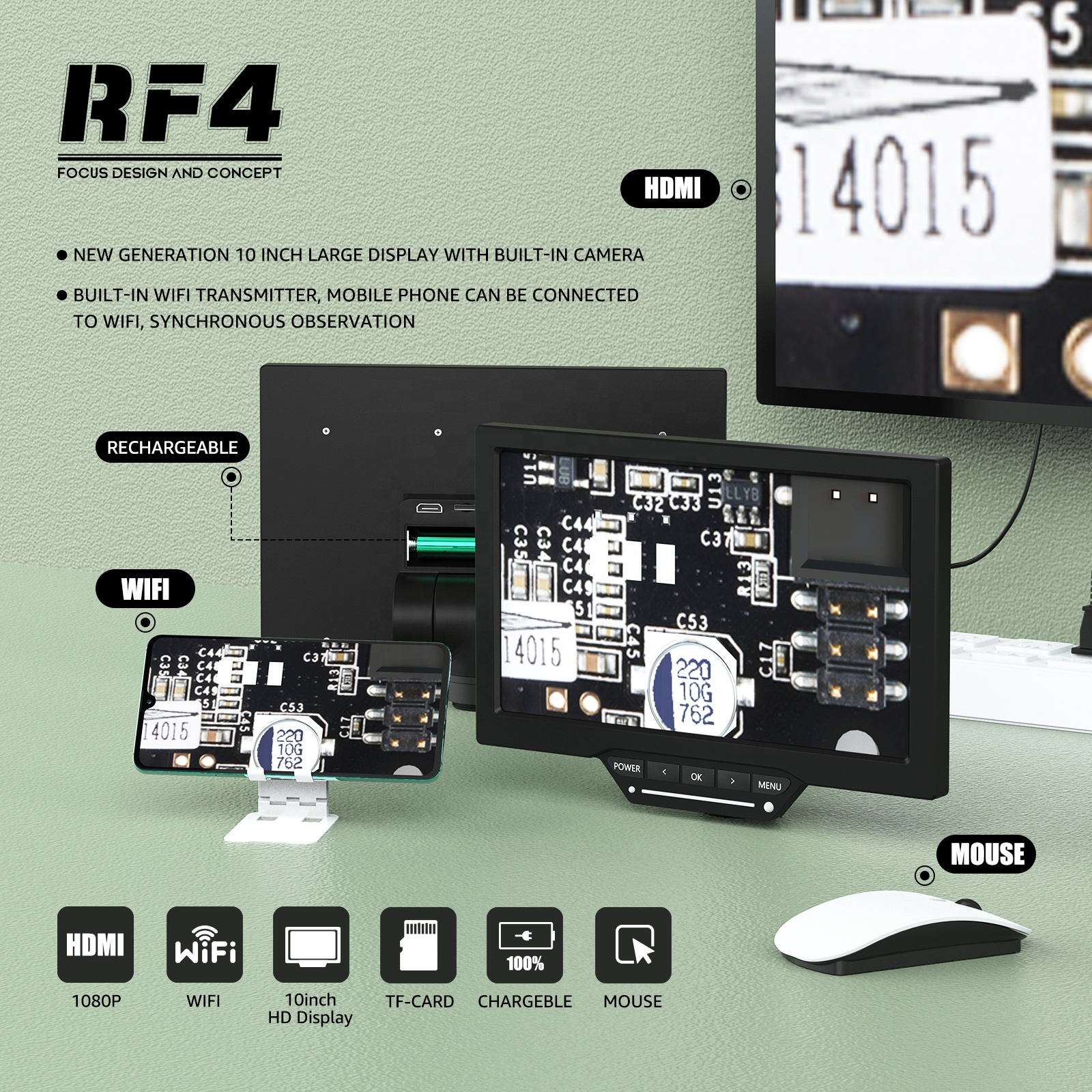

Screen size: 10 inchesScreen resolution: 1024x600Image Sensor: 1/3 inch (BSI)Pixel size: 2um x 2umPhoto Resolution: 2688x1512, 5376*3024 (Interpolation)video resolution: 1080P30 (clear), 720P60 (smooth)HDMI resolution: 720P60USB resolution: 1080P20WiFi output:720x360@30fps,support Android and iOS (optional)Exposure control: AE lock, exposure compensation (adjustable at ten levels)White Balance:Automatic, manual (R, G, B ten level adjustable), one keyImage control: Contrast, saturation, sharpness ten level adjustmentCompared with the screen: full screen, left and right, up and down, 1/4grid: 8 groups, position, color, thickness adjustableMeasurement: point, line, circle, Angle (optional)Language: English, Simplified Chinese,Traditional ChineseFill light: touch type stepless regulationMouse interface: USB-A, recommended to use the original mouse (optional) Infrared remote control: maximum 5 metersWiFi distance: up to 10 meters (optional)HDMI interface: Type-AUSB interface: Type-C USB2.0Extended storage: supports up to 32G TF card Working distance: 1cm~5mBody size: 175mm (L) x 129mm (W) x 51mm (H)Body weight: 320g (including battery) / 270g (excluding battery)
Packing Detail:carton within foam inside or wooden box;
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM. 1.We Will provide you User manual in English or operating videos for free ;
2.24 hours technical support by email or vedio call via wechat or skype;
3. Free training to make sure you master the operating of our products;
4. OEM/ODM accept .
|
