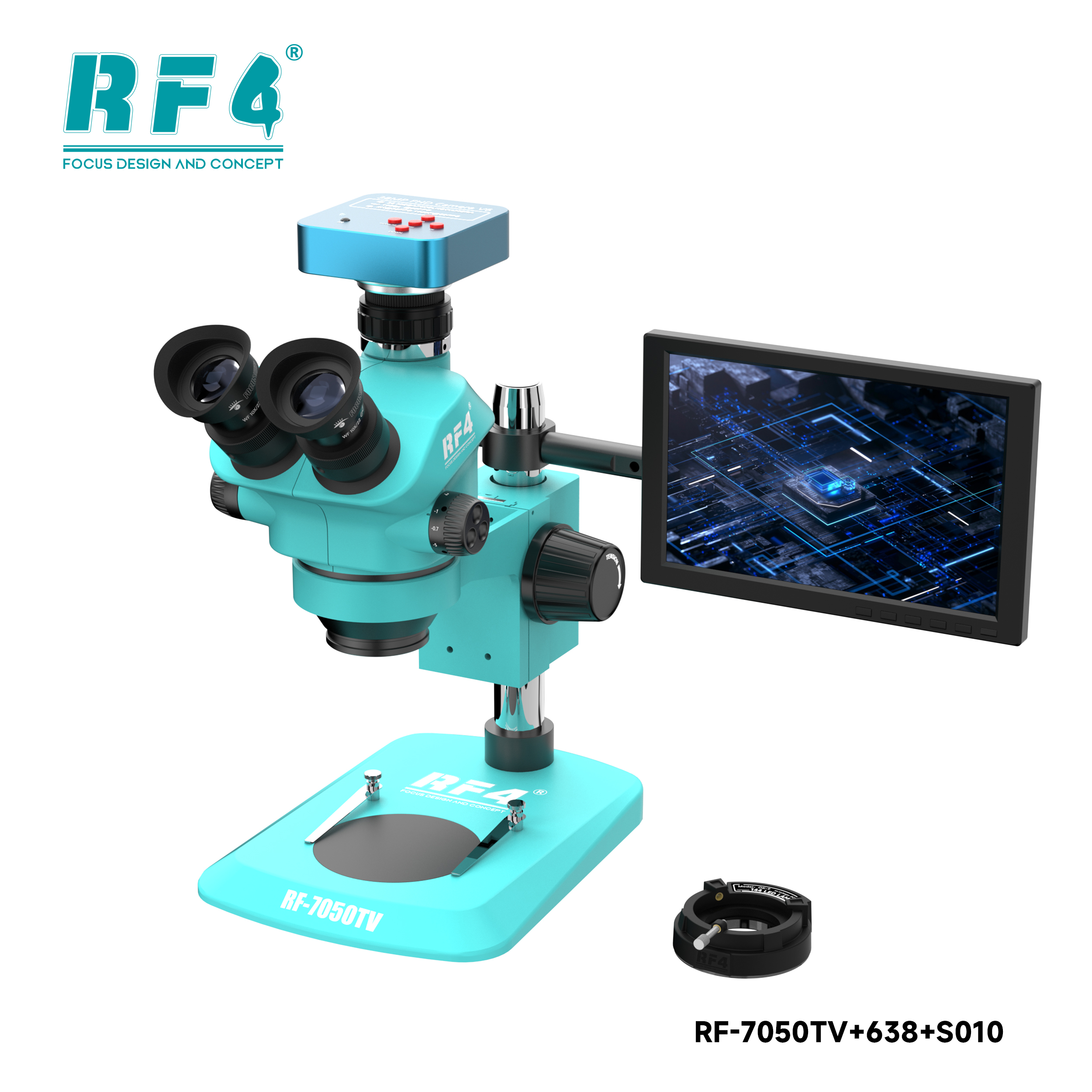

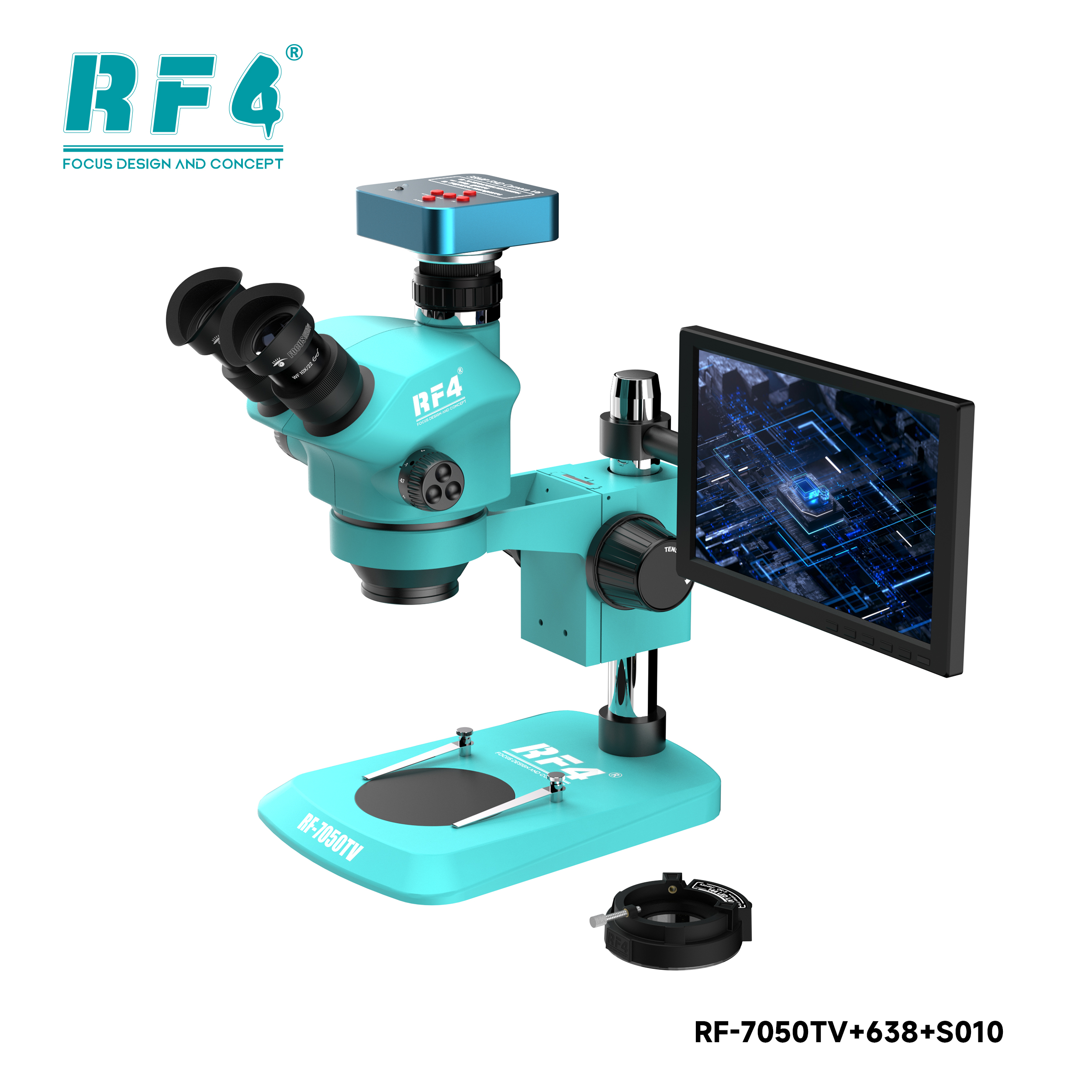

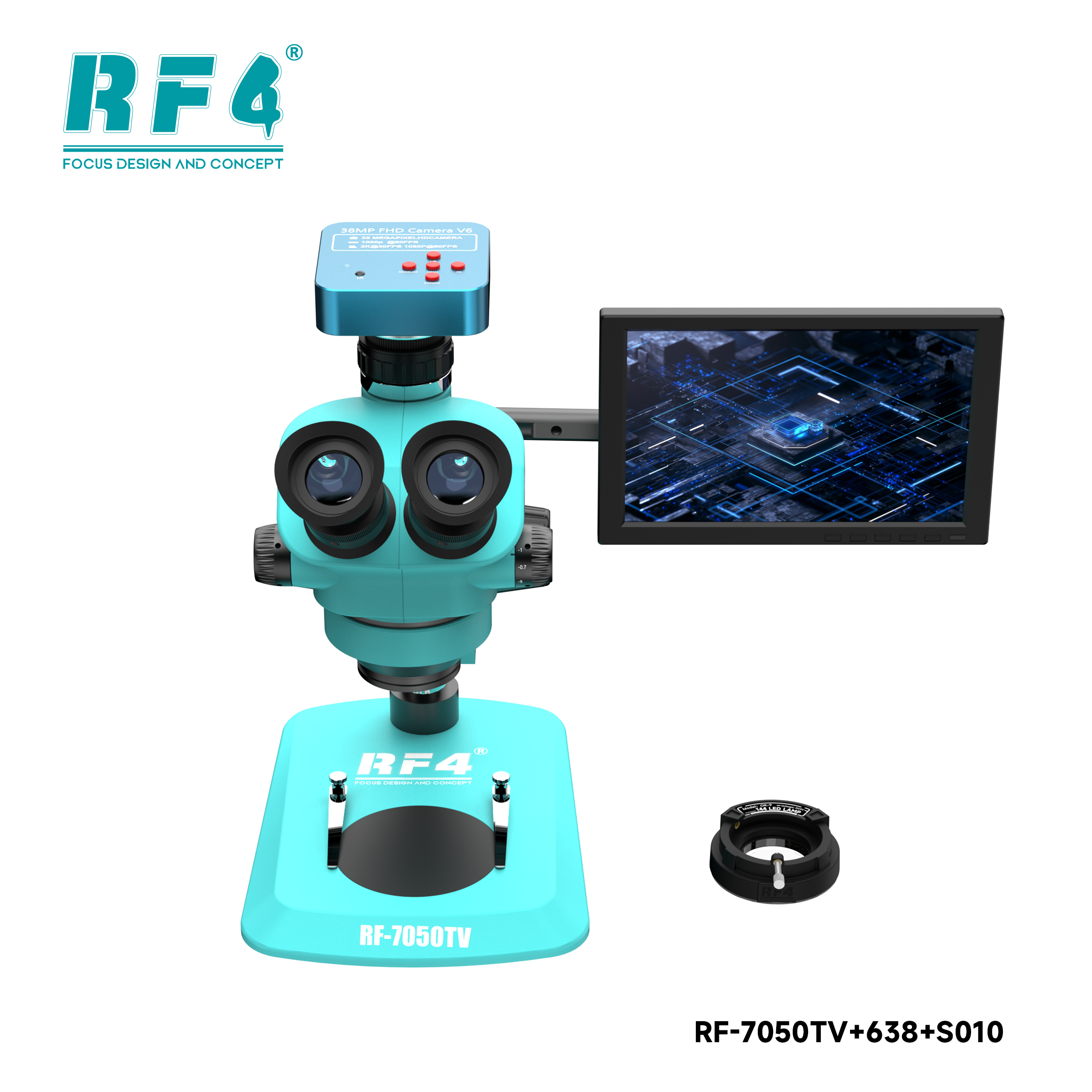

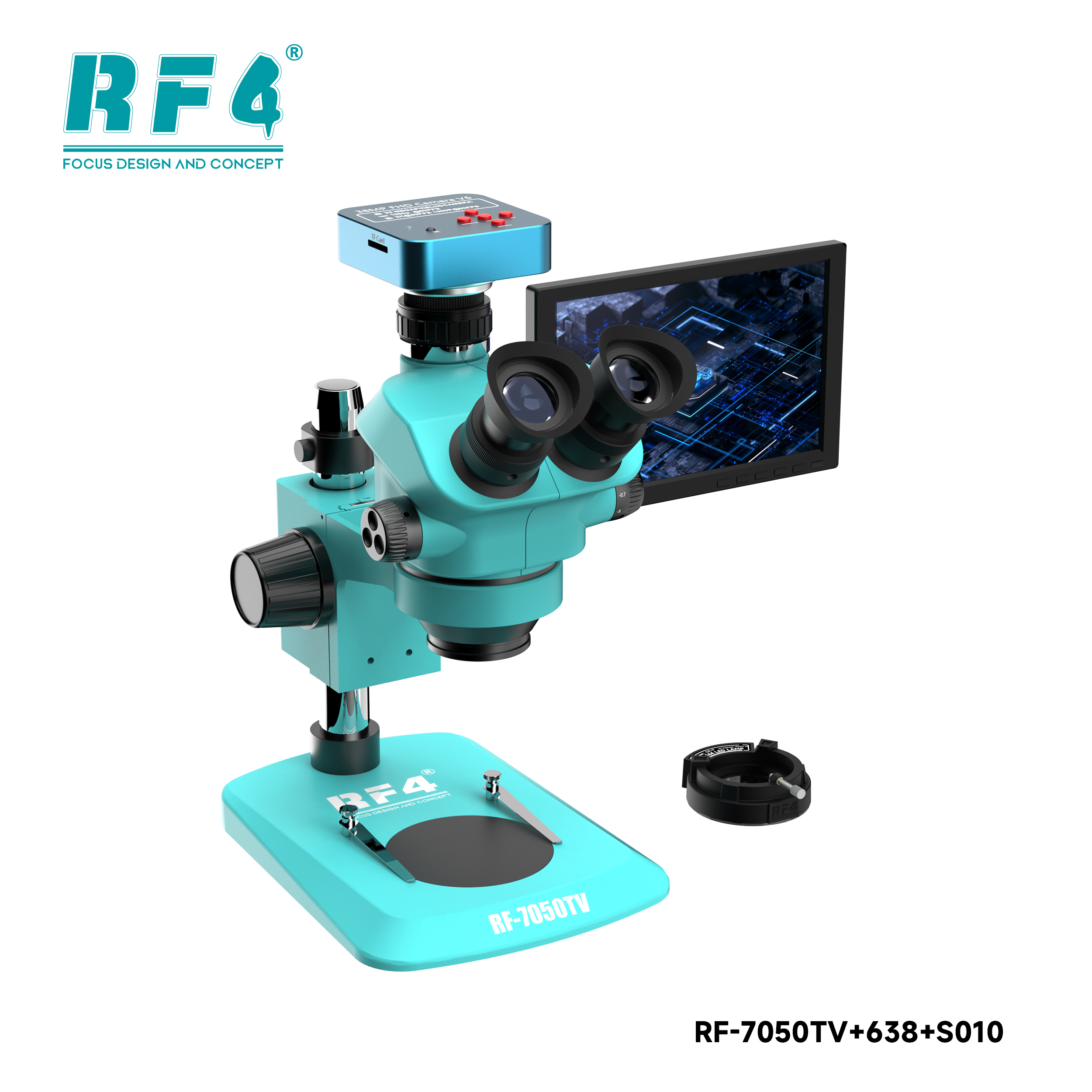

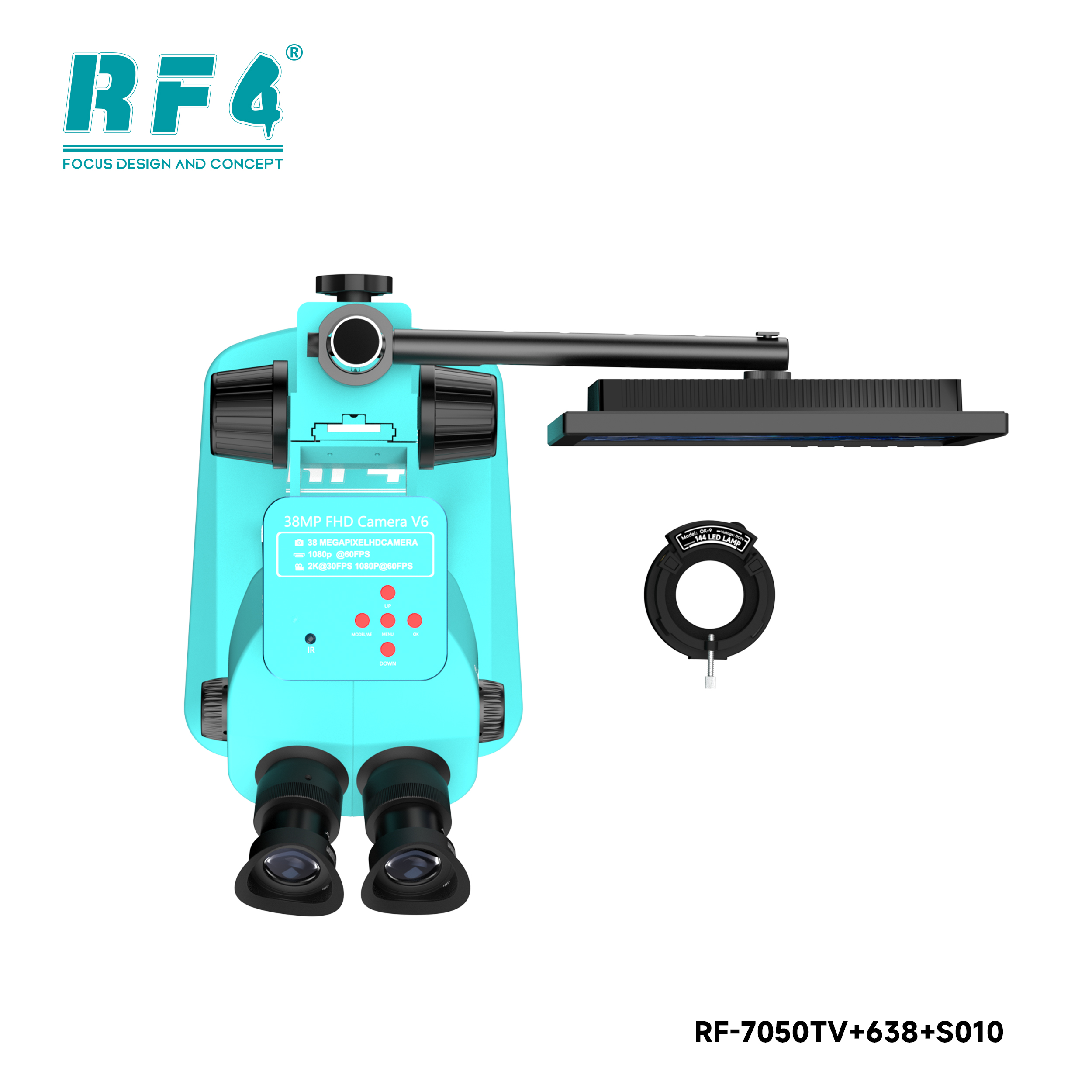

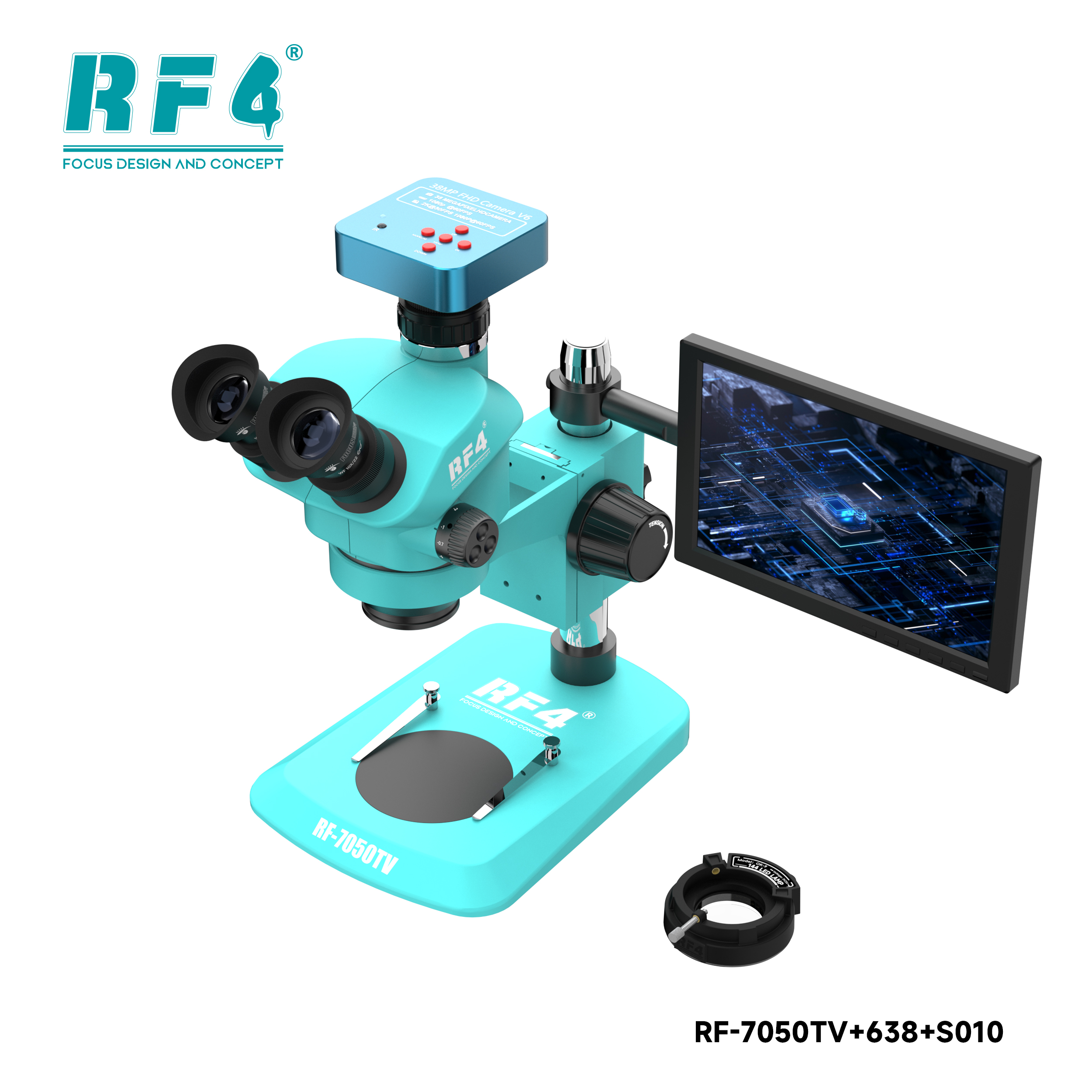

RF-7050TV-638-S010

Product details
Overview
Quick Details
Warranty:
1 year
Customized support:
OEM, ODM, OBM
Place of Origin:
Guangdong, China
Brand Name:
RF4
Model Number:
RF7050TV-638-S010
Theory:
Stereo Microscope
Drawtube:
Trinocular
Product Name:
0.7-5.0X Soldering microscope
Feature:
Beautiful and unique design, ultra wide Angle vision
Objective:
0.7-5.0X
Head:
45-degree inclined 360-degree swiveling trinocular
Accessories:
camera
Camera:
38MP
Certification:
IECEE
Usage:
Mobile Phone Repair
Eyepiece:
WF10X/22MM
Monitor and eyepiece:
Synchronous zoom
Supply Ability
Supply Ability
1000 Set/Sets per Month
Packaging & Delivery
standard deliver package
Port
Guangzhou
Lead Time:
Quantity(sets)1 - 100>100
Est. Time(days)7To be negotiated
Overview
0.7-5.0X RF4   optical microscope Soldering microscope 38MP camera Mobile Repair for laboratory use trinocular microscope

Magnification:continuous zoom 7X to 50X                                   Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM Barlow Lens: 0.5X & 0.7&2.0X(optional) Objective: 0.7-5.0X Camera connector:1/2ctv
Camera:38MP
Monitor and eyepiece. Synchronous zoomCamera:Different models optional Stand:200 x255mm
Monoitor:10inch
Product Description

Support parameters



Column aperture: Φ32mm
Lens aperture: Φ76mmCenter distance: 155mmLifting range: 50mm

The base parameters

Column height: 240mmDiameter:φ32mm     Equipped with pressing tabletand Φ95mm black and white plateBase: 200 x255mm

Wide-angle eyepieces 10X/22

Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes

0.5X   CTV

1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet.2The adapter ring can use LCD to focus, this kind of focus method is manual focus.3 The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.4   Weight: 0.09kg.
Microscope function description
* This product has 38million pixel camera and 1080p video recordingfunction. Can press the mode key to switch cyclically. Among them, the Mode button is used to switch between modes. The default is the camera mode. Press it once to adjust to video, and press it again to switch to preview mode.
   * The product provides 5.2 times digital zoom; press and hold the up or down key to zoom in or zoom out digitally, long press to zoom in or zoom out quickly, and short press to zoom in or zoom out at a time.
   * This product provides HDMI high-definition video output interface, the output size is 1080p 60hz.
   * This product provides high-definition usb video output of drive-free 1080P 30 frames per second.
   * This product supports one-key image freeze/unfreeze function。Pressingthe on/off button after booting, that can realize the freeze and unfreeze function.
   * The product provides a line-drawing function, a total of 8 lines, support line selection and movement.And the color setting and   thickness of the displayed line can be adjusted,At the same time,the center cross cursor display is providedas well.
   * Support English and Simplified Chinese language setting.
   * The camera can also store information through a TF card, the maximum storage capacity is 64GB
   * The camera supports mirror flip function, which can flip the image horizontally and vertically. In addition, you can control   the screen brightness and exposure through the buttons on the camera.
* Please put the camera in the place which temperature at 0°C to 50°C and less than 90% humidity when you use it. It is used in an environmental indoor environment to prevent foreign objects from entering the machine.And do not splash liquid on the machine to prevent danger.
   * Please do not disassemble the camera without authorization. There are no parts that can be repaired by the user.
   * If there is no video display on the LCD screen or the image flickers, please check whether the LED light of the power supply is   on, and press PowerKey to turn it on. Or check the lens cover and increase lighting.
   * If the LCD screen has black bars and the image is distorted, change the resolution of the LCD or the resolution of the camera. Check the cameralens if there are dirty spots.Find the dust, and then clean it with absolute ethanol or detergent.

Different eyepieces match different magnifications of the same objective lens
Our Services
1.We Will provide you User manual in English or operating videos for free .
2.24 hours technical support by email or vedio call via wechat or skype.
3. Free training to make sure you master the operating of our products.
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Warranty:
1.all of our products will be checked one by one before shipping
2.customer should check the package when receiving
3.all machine wihin 1 year free warranty, but here is not warranty if that's obviously caused by man-made. free technical support always.
4. due to the low vaule of the accessories,we don't accept any return or exchange.
Packaging & Shipping
Packing Detail:carton within foam inside or wooden box
Shipping: 2~3 day after confirm payment
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.
We can arrange shipment by sea. Minium CBM requirement : 1 CBM
