RF-7050TVD2-4KC1

Buy now
Product details
Overview
Quick Details
Warranty:
3 years
Customized support:
OEM, ODM, OBM
Place of Origin:
Guangdong, China
Brand Name:
RF4
Model Number:
RF7050TVD2-4KC1+144
Theory:
Stereo Microscope
Drawtube:
Trinocular
Feature:
Beautiful and unique design, ultra wide Angle vision
Product Name:

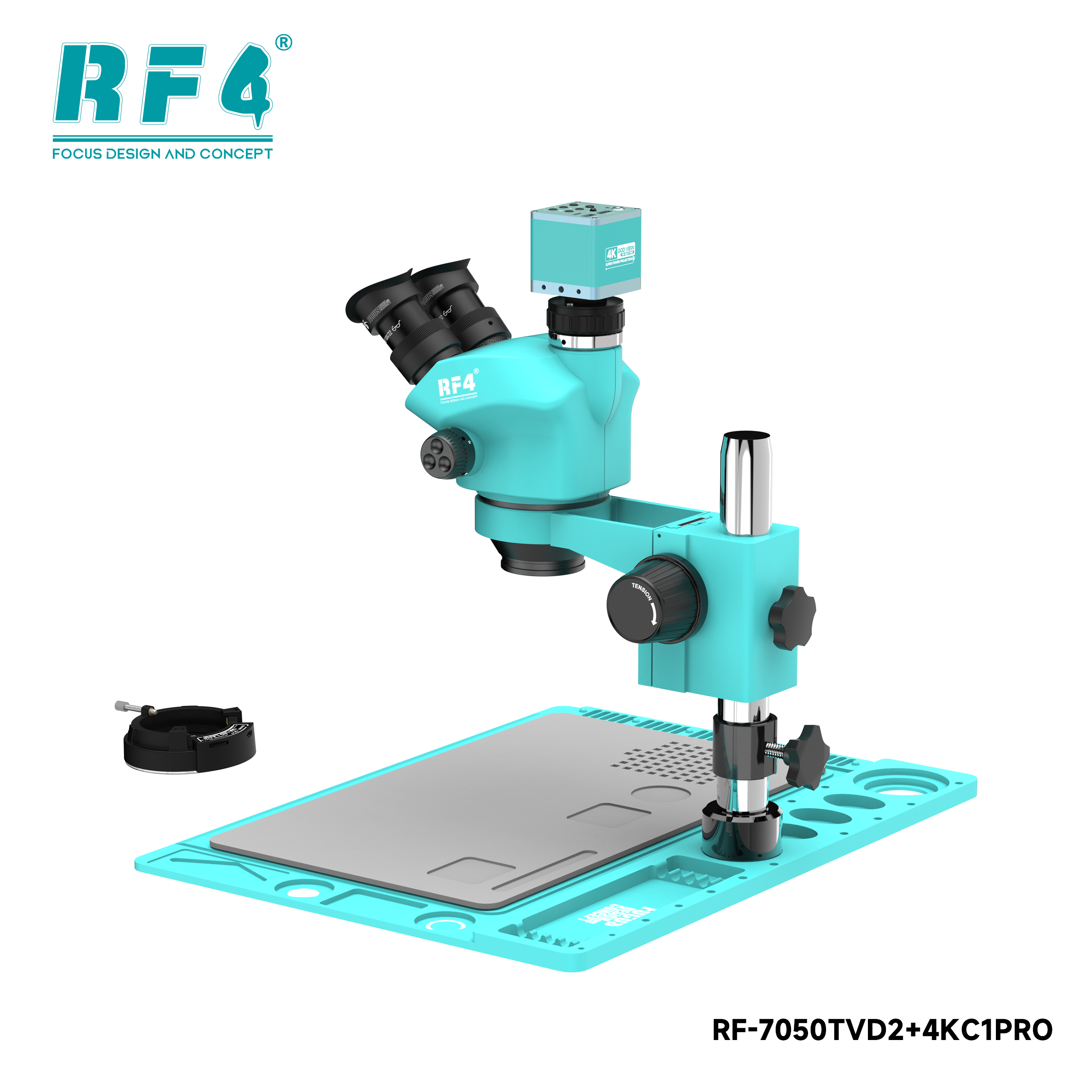

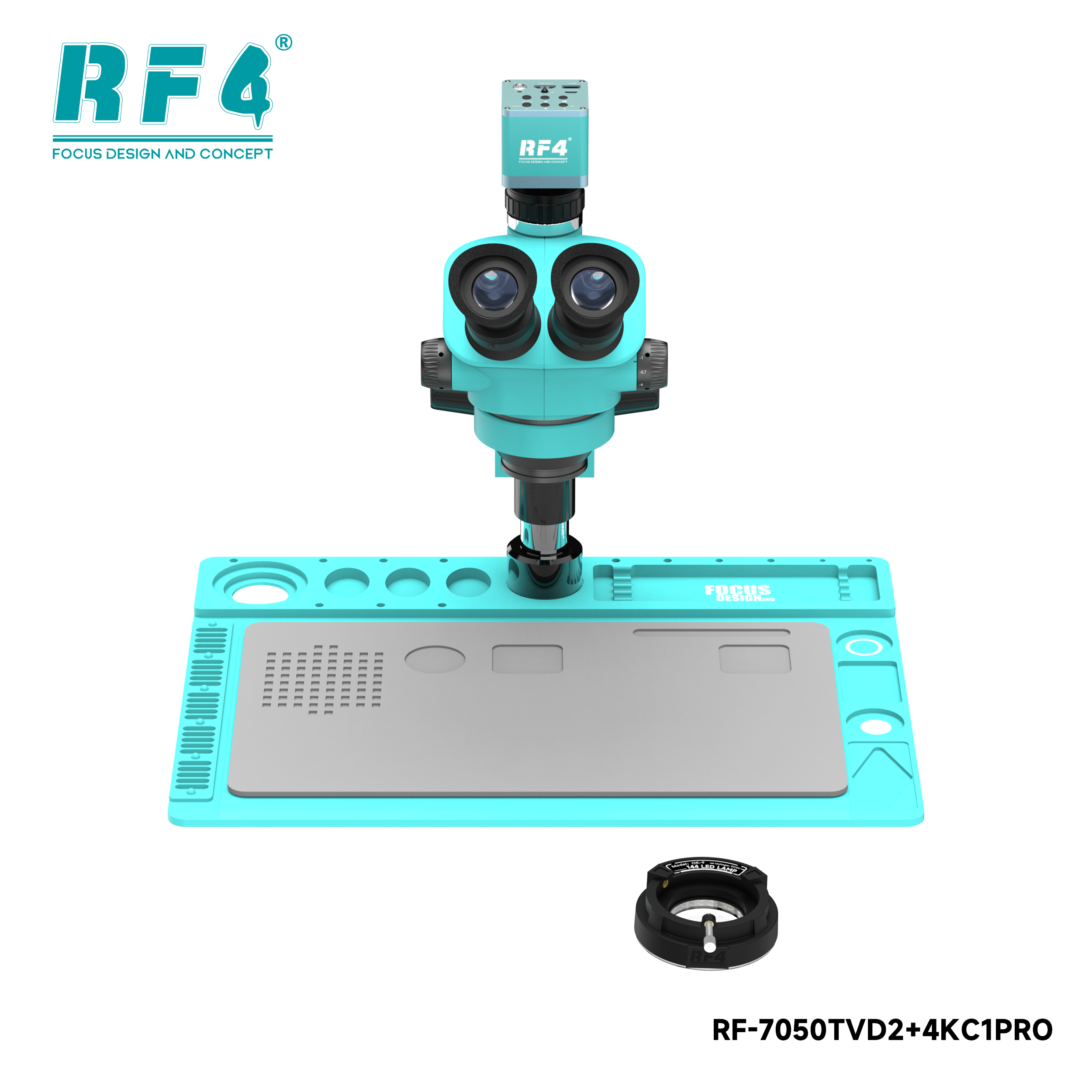

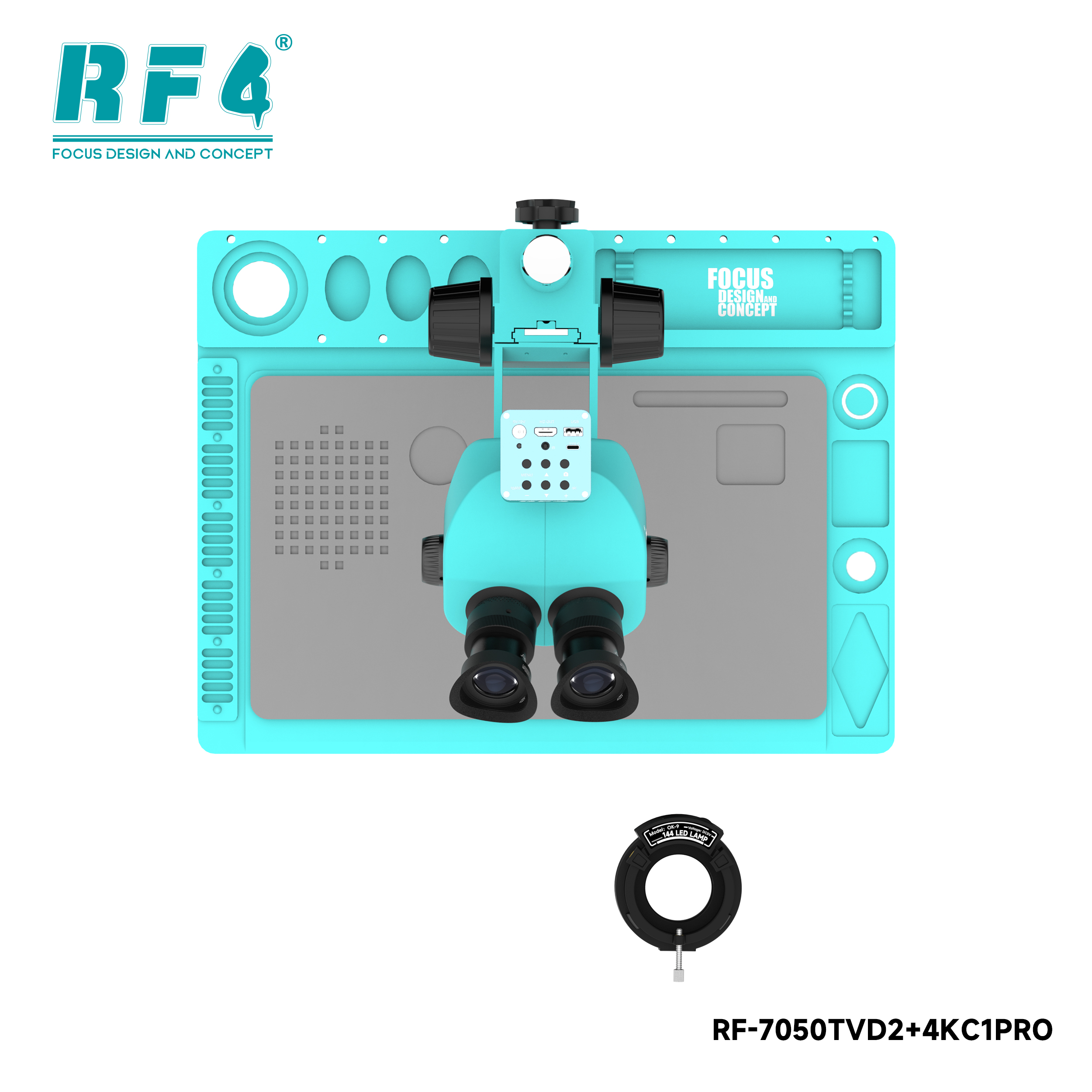

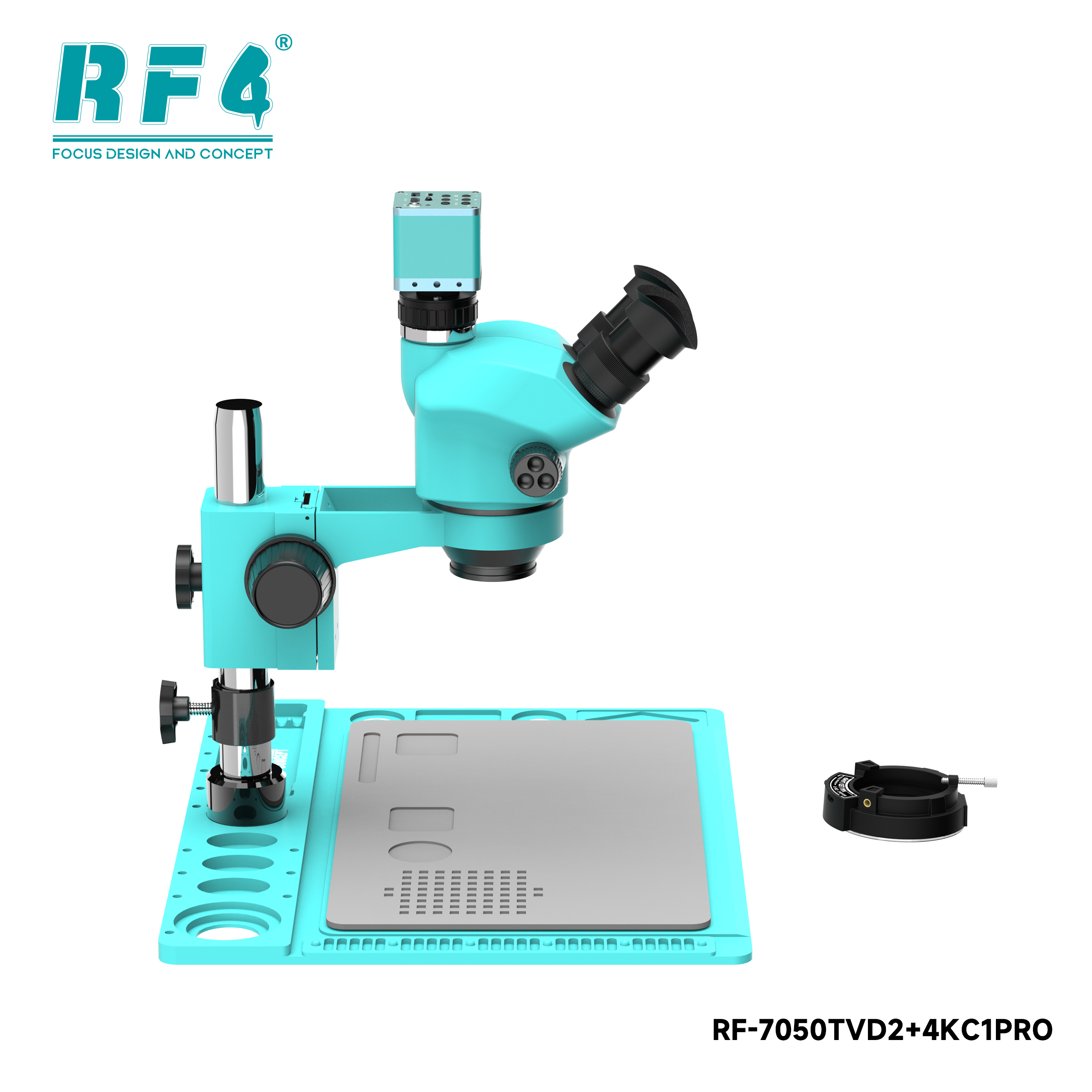

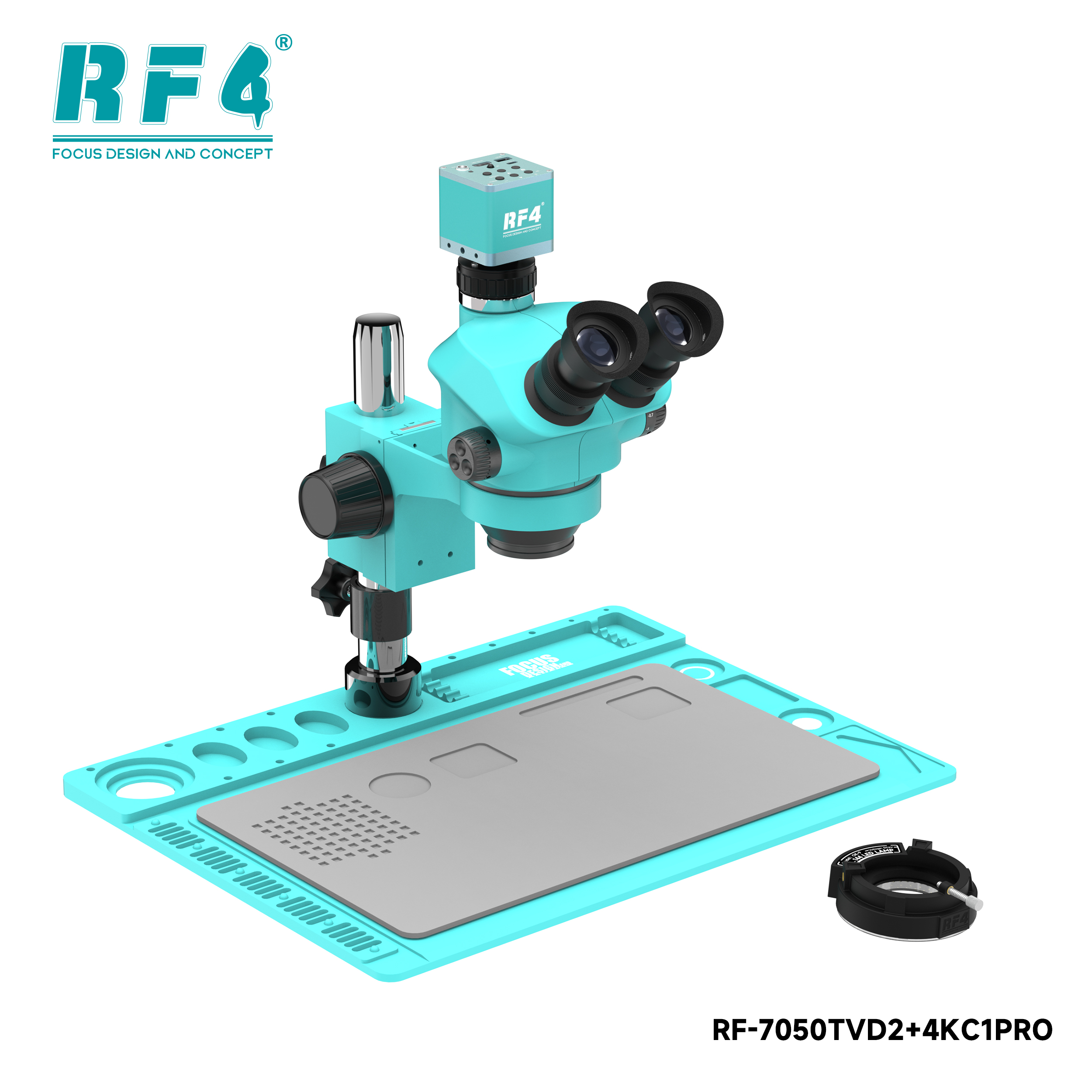

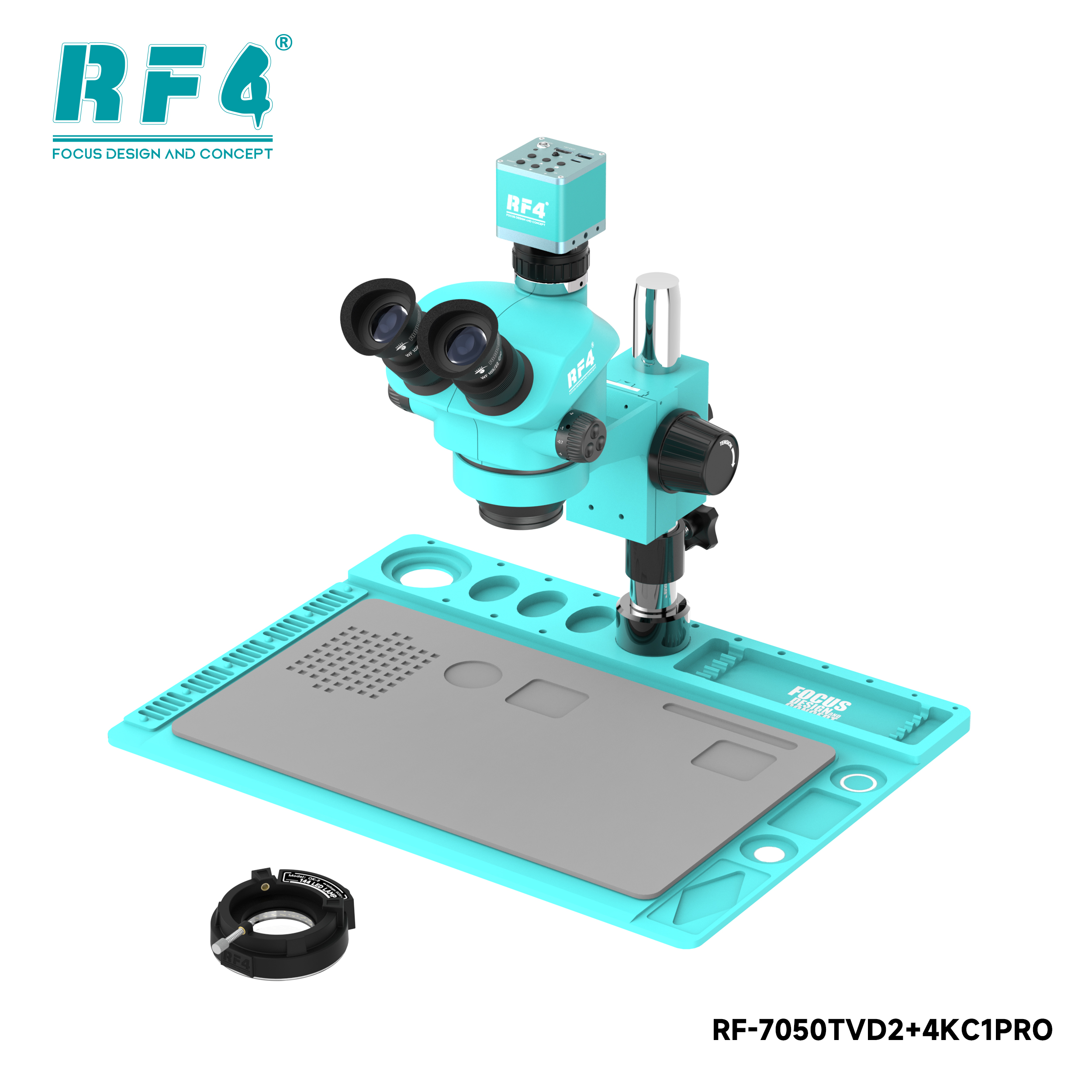

RF7050TVD2 microscope with 4K camera
Objective:
0.7-5.0X
Head:
45-degree inclined 360-degree swiveling trinocular
Accessories:
144 adjustable led light & dust proof Lens
Camera:
4k HDMI
Certification:
IECEE
Usage:
Mobile Phone Repair
microscope:
Trincular
Eyepiece:
WF10X/22MM
Supply Ability
Supply Ability
1000 Set/Sets per Month
Packaging & Delivery
Best Price Jewelry Microscope RF7050TVD2 Easy to Handle Trincular 4k Camera Microscope Mobile phone Maintenance Engineer Tool standard deliver package
Port
Guangzhou
Lead Time:
Quantity(sets)1 - 100>100
Est. Time(days)7To be negotiated
Overview
Best Price Jewelry Microscope RF7050TVD2 Easy to Handle Trincular 4k Camera Microscope Mobile phone Maintenance Engineer Tool

Magnification:continuous zoom 7X to 50X                                   Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM
Barlow Lens: 0.5X & 0.7&2.0X(optional) Objective: 0.7-5.0X Camera connector：1/2ctv
Camera:4K camera
Monitor and eyepiece. Synchronous zoomCamera:Different models optional Stand:410*300mmAccessories: 144 adjustable led light & dust proof   Lens
Product Description

Support parameters


Column aperture: Φ32mmLens aperture: Φ76mmCenter distance: 155mmLifting range: 50mm

The base parameters


240mm φ32mm pillar410*300mm
Multifunctional aluminumalloy repair base
Expand silicone pad size：
330*198mm

Wide-angle eyepieces 10X/22



Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes

0.5X   CTV

1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet.2The adapter ring can use LCD to focus, this kind of focus method is manual focus.3 The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.4   Weight: 0.09kg.

Microscope Camera

4kmicroscope camera

High definition, beautiful design

144 LED Ring Light

Input：AC 100-240V , 50/60Hz
Output：DC 12V , max 700mA
Light color：White
Number of lights：144 LEDs
Inside diameter 60mm
Different eyepieces match different magnifications of the same objective lens
Our Services
1.We Will provide you User manual in English or operating videos for free .
2.24 hours technical support by email or vedio call via wechat or skype.
3. Free training to make sure you master the operating of our products.
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Warranty:
1.all of our products will be checked one by one before shipping
2.customer should check the package when receiving
3.all machine wihin 1 year free warranty, but here is not warranty if that's obviously caused by man-made. free technical support always.
4. due to the low vaule of the accessories,we don't accept any return or exchange.
Packaging & Shipping
Packing Detail:carton within foam inside or wooden box
Shipping: 2~3 day after confirm payment
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.
We can arrange shipment by sea. Minium CBM requirement : 1 CBM
