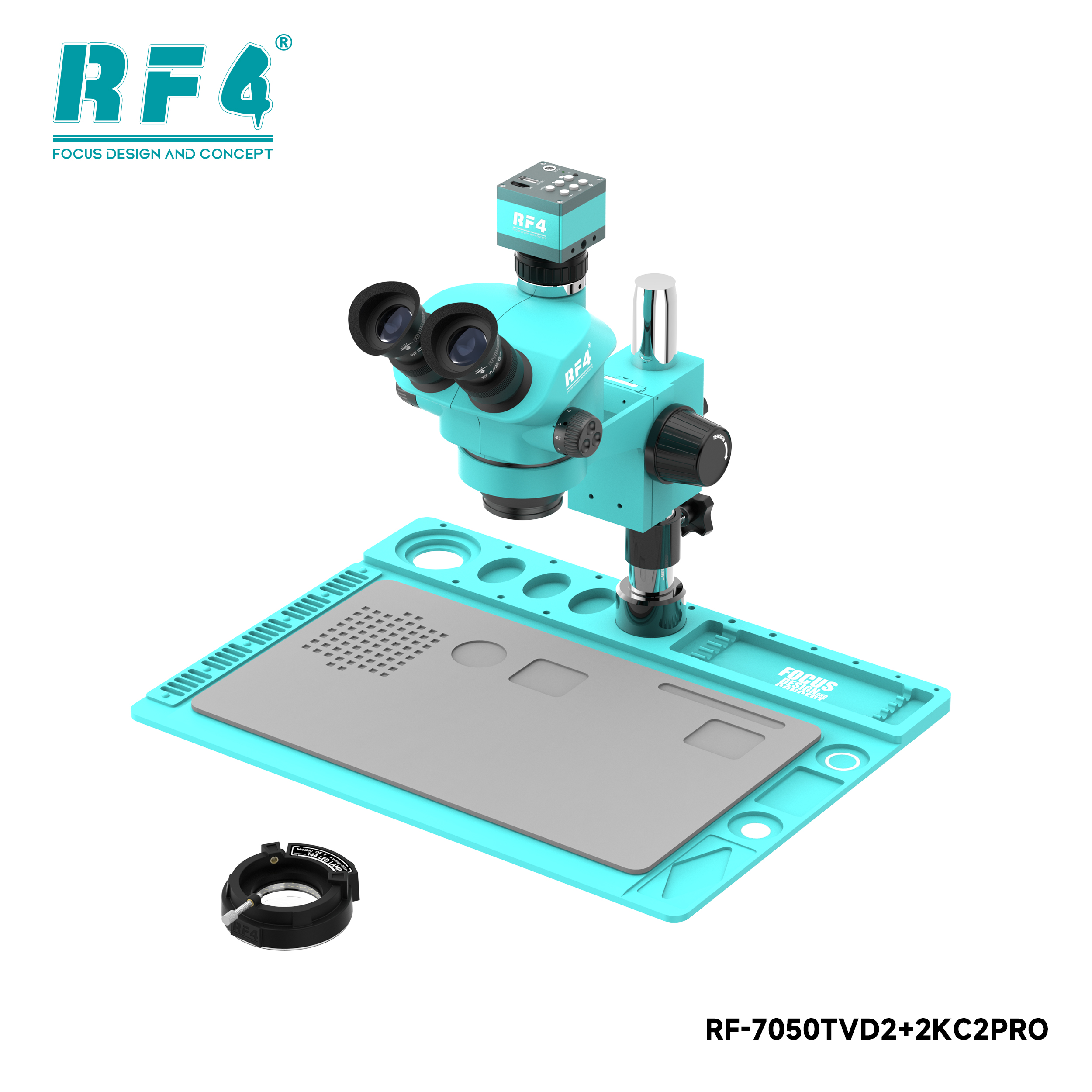

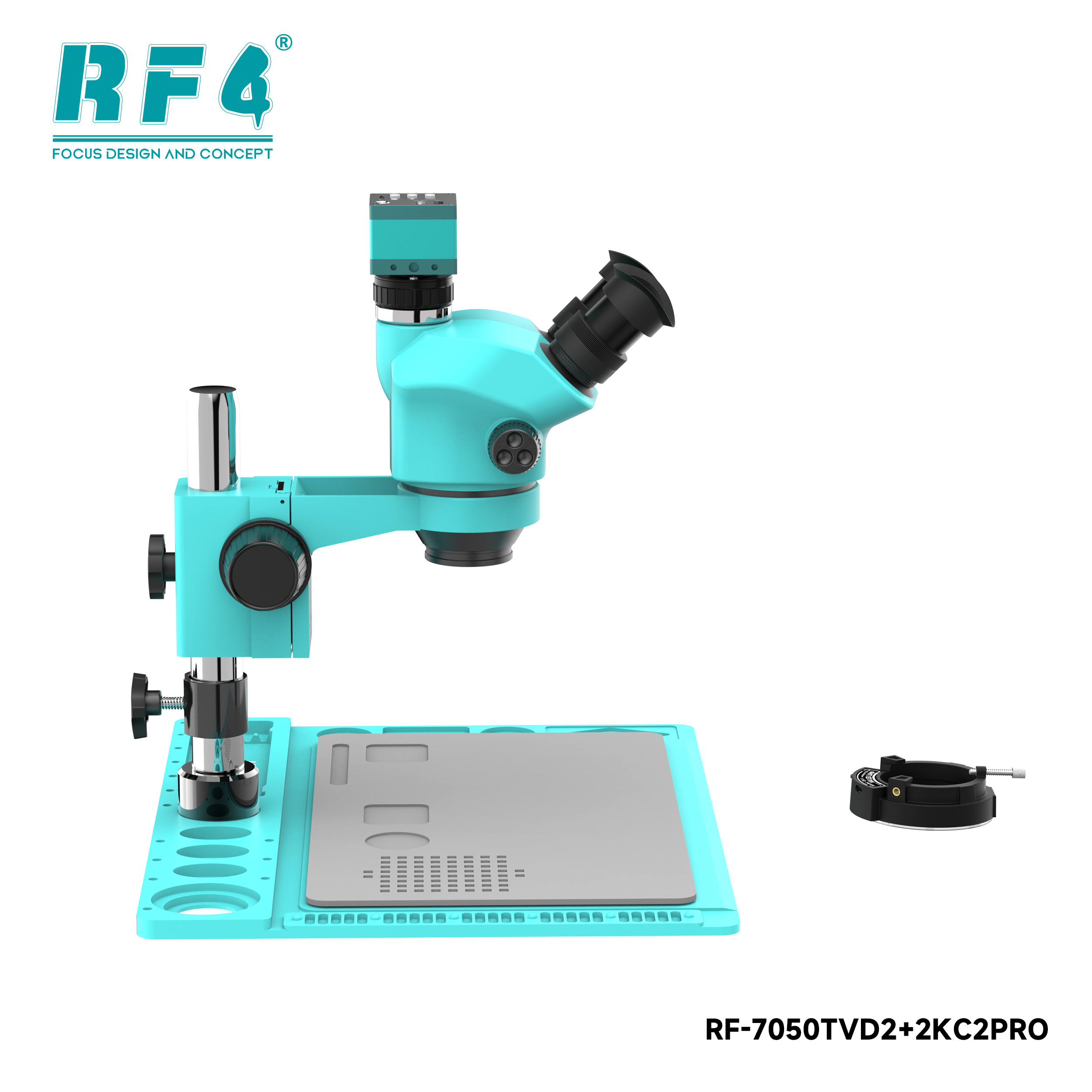

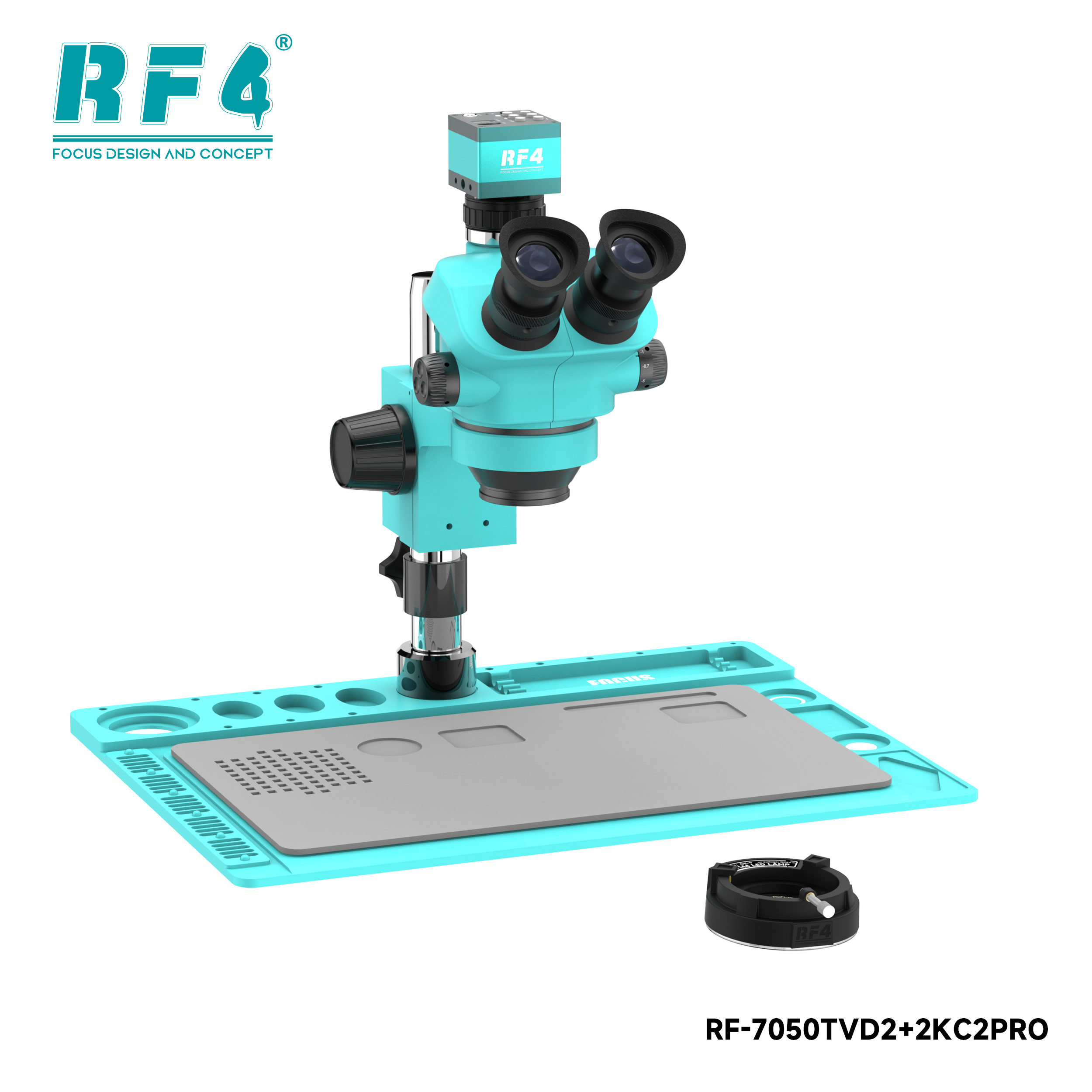

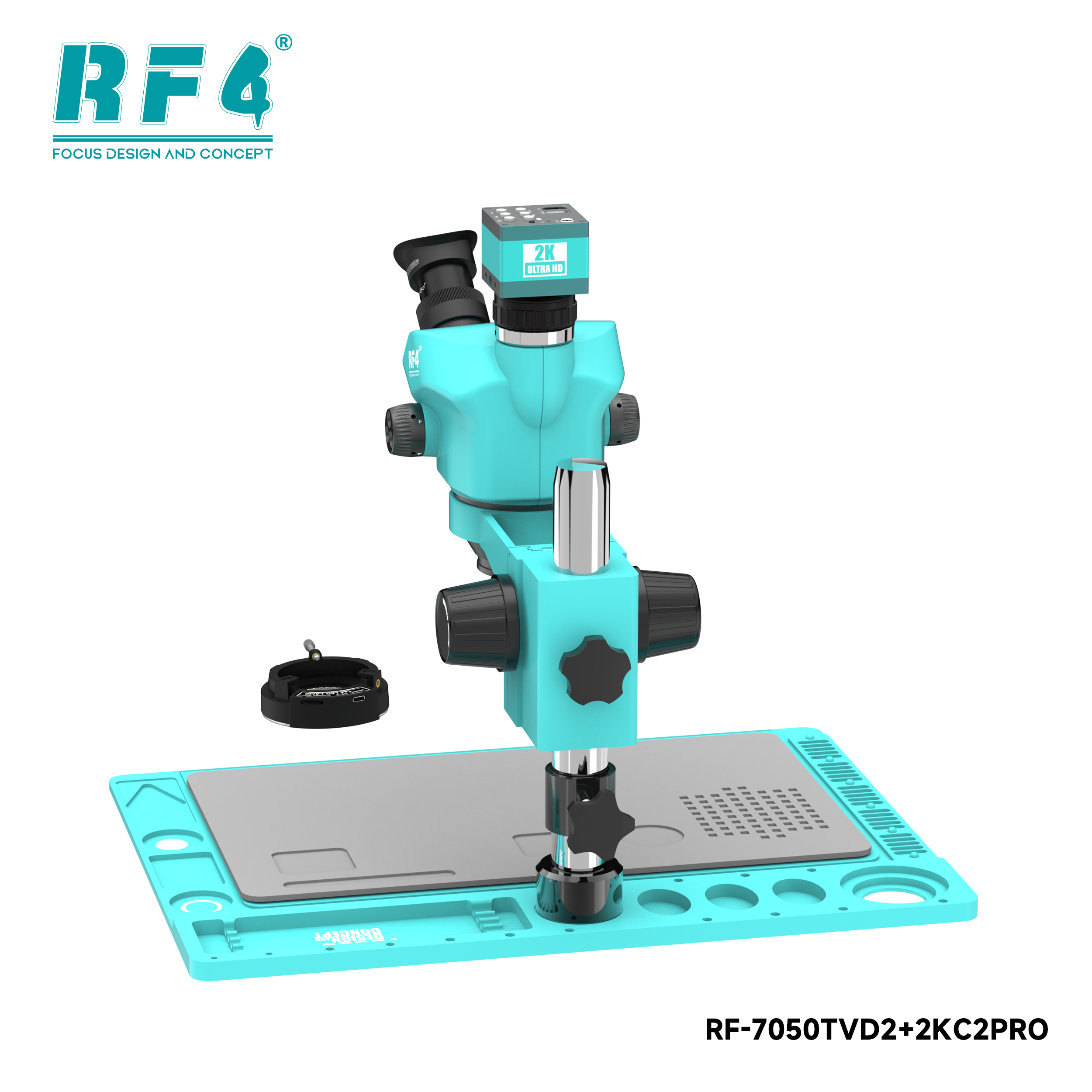

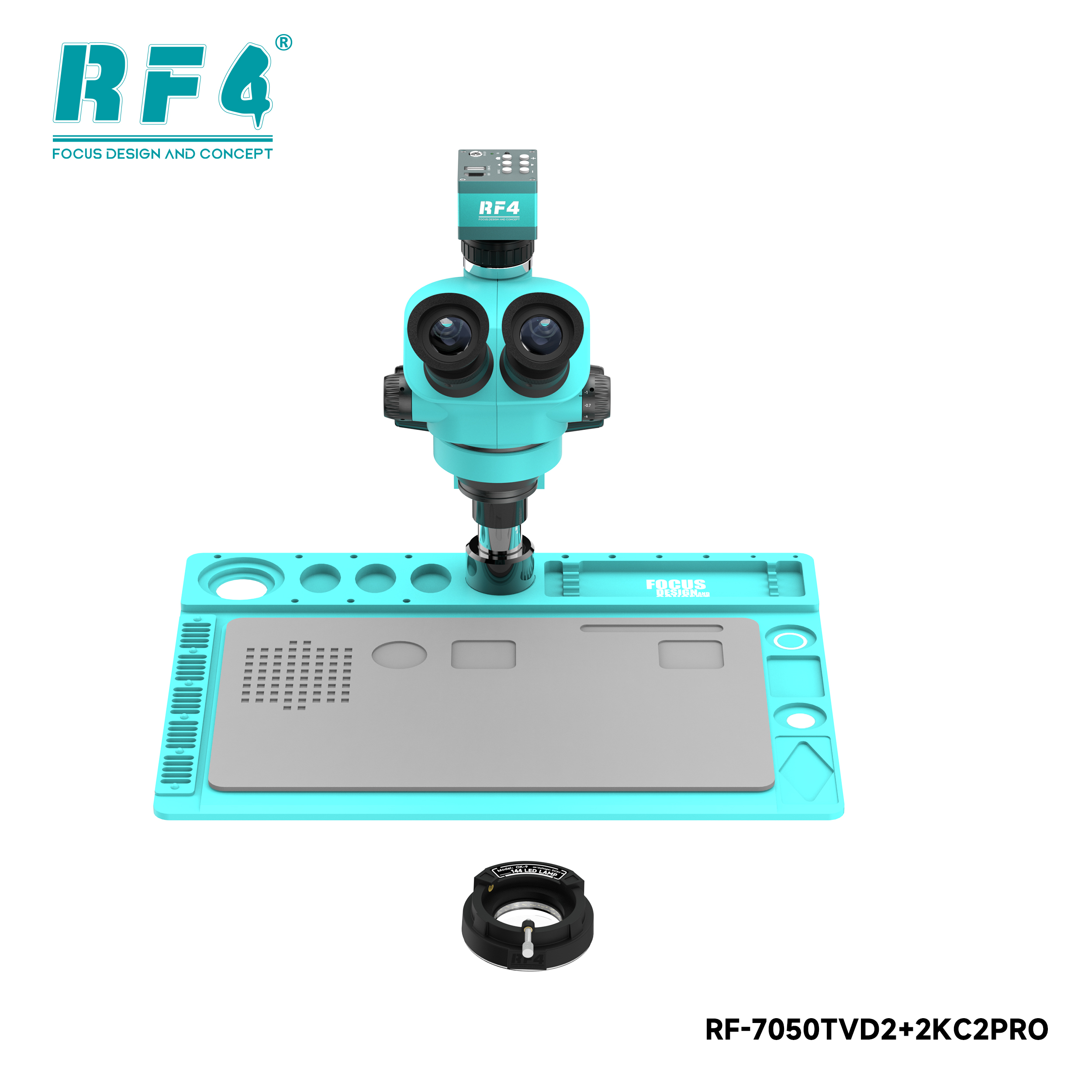

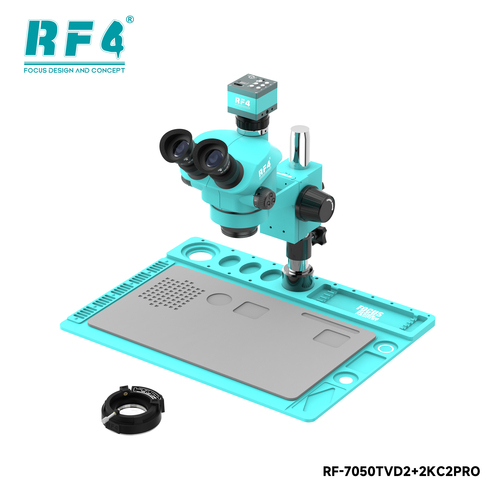

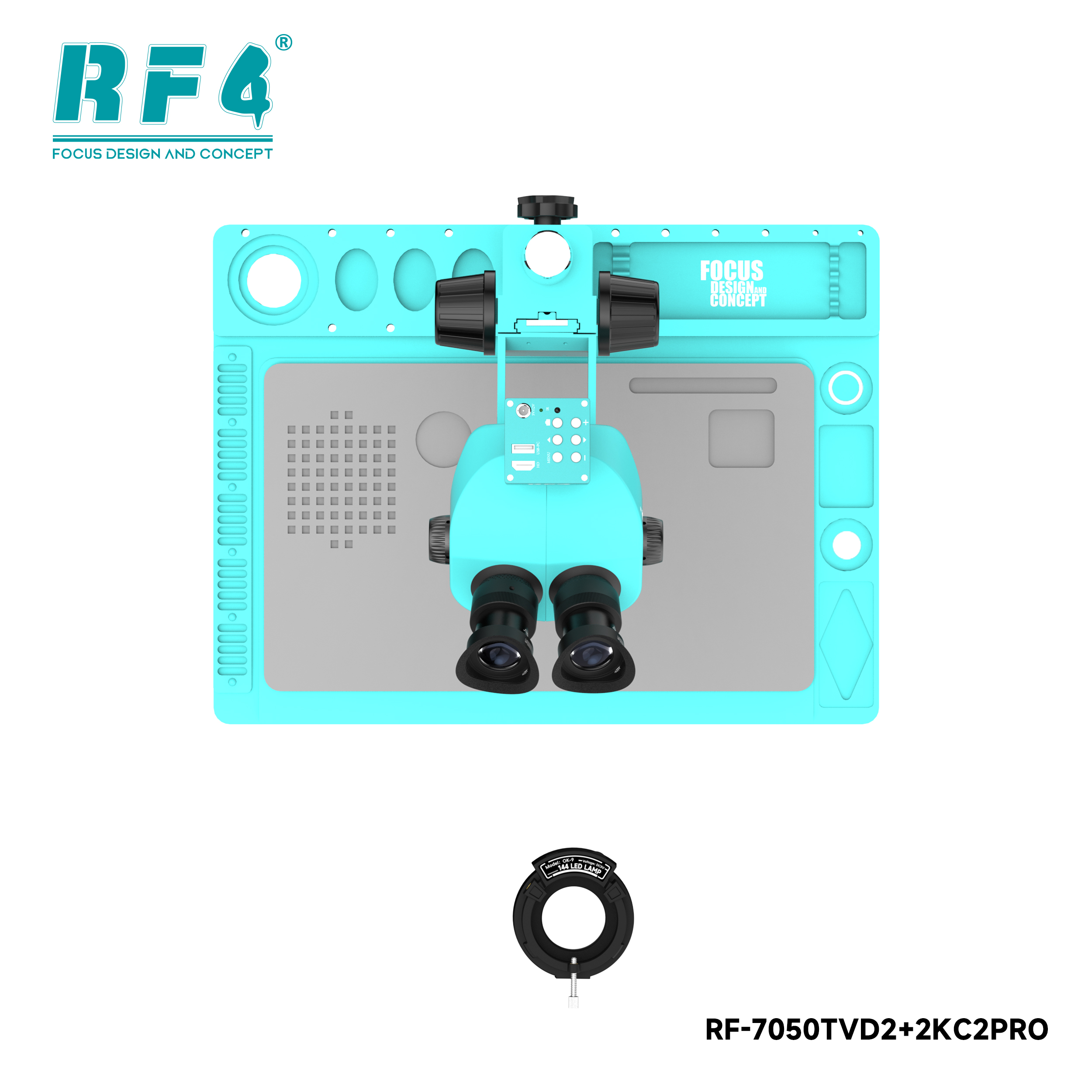

Boom Stand: 280mm φ32mm pillar, 300mm*400mm repair big base with silicone pad
Accessories: 144 adjustable led light & dust proof Lens
Eyepiece
（Standard Configuration）
（Auxiliary Observation）
0.5X
2X
Working Distance
100mm
Working Distance
165mm
Working Distance
30mm
Magnification
Field of View
Magnification
Field of View
Magnification
Field of View
10X/22
Standard Configuration
7X-50X
4.4-31.4mm
3.5X-25X
8.8-62.8mm
14X-100X
2.2-15.7mm
20X/10
14X-100X
1.0-7.1mm
7X-50X
2.0-14.2mm
28X-200X
0.5-3.5mm
LED ring light
instructions
Input
AC 100-240V , 50/60Hz
Output
DC 12V , max 700mA
Max output
4.5W-6W
Plug
EU/US
LED
144 LEDs
Illumination
Over 30000-35000Lux
Color Temperature
6000-7000K
Light color
White
Inside diameter
60mm
Package
144-LED Lamp Ring Power Adapter (Default EU Plug)
The parameter types
The parameter value
Sensor Target surface size
1/2.8"
The sensor resolution
4k/3840*2160@30fps
Output interface
HDMI 4k@30fps
Mode of operation
button
Working voltage
DC 12V
Storage
Usb disk, capacity<=64GB
The lens type
Supports C/CS interfaces
Photograph
8 million, JPG
Video
3840*2160 avi
Cross curve
8*8 groups
File Manager
With
Parameter type
specific parameter
Tip:
Hold down the '1080 key' for 10 seconds to 1080P resolution
Hold down the '4K key' for 10 seconds to switch to 4K resolution
Install and use 1. The microscope is connected to the host computer through C/CS interface, and tightened to prevent falling;
2. HDMI connection to monitor. Display should support 3840*2160/1920*1080 resolution; 3. Use USB interface to connect computer for UVC camera; 4. Connect the power adapter to the host through the DC port. 5. The TF card can be used with related functions: taking photos, video recording, playback, etc.
If necessary, please insert it; 6.Switch on the power adapter, and the host indicator shows green for 10 seconds.
Packing & Delivery
Packing Detail:carton within foam inside or wooden box; Shipping: 2~3 day after confirm payment; 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc; We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
Our Services
1.We Will provide you User manual in English or operating videos for free ; 2.24 hours technical support by email or vedio call via wechat or skype; 3. Free training to make sure you master the operating of our products; 4. OEM/ODM accept .
