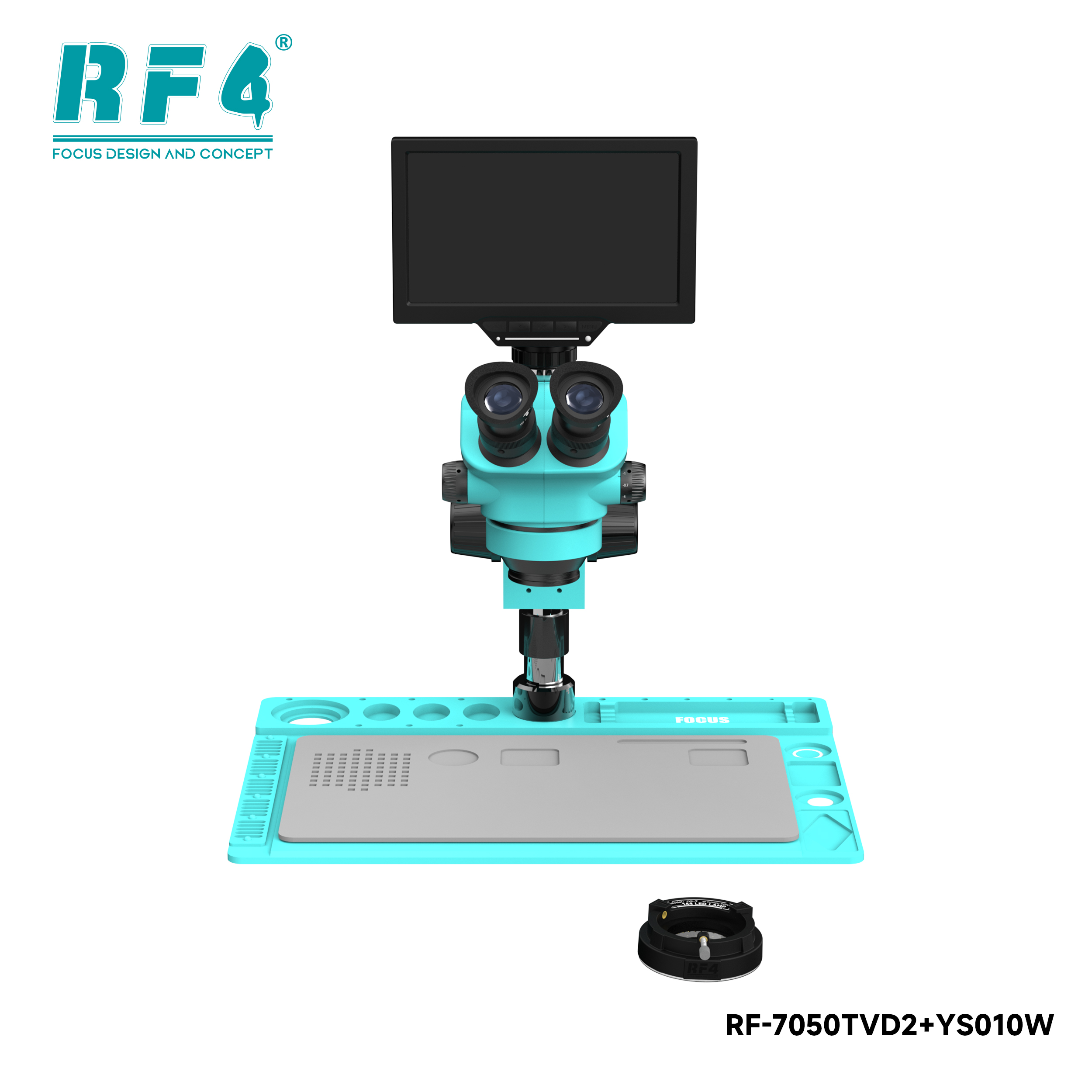

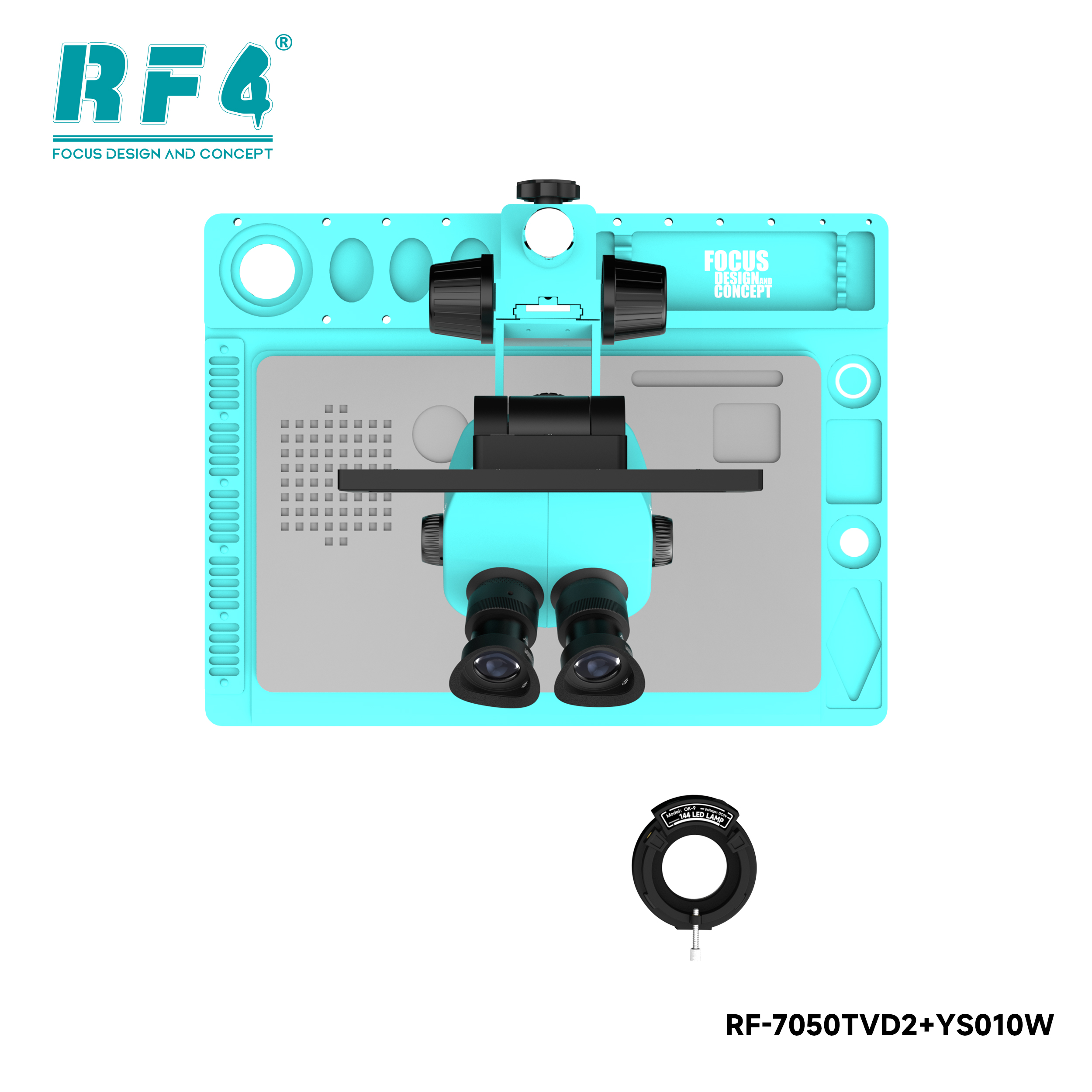

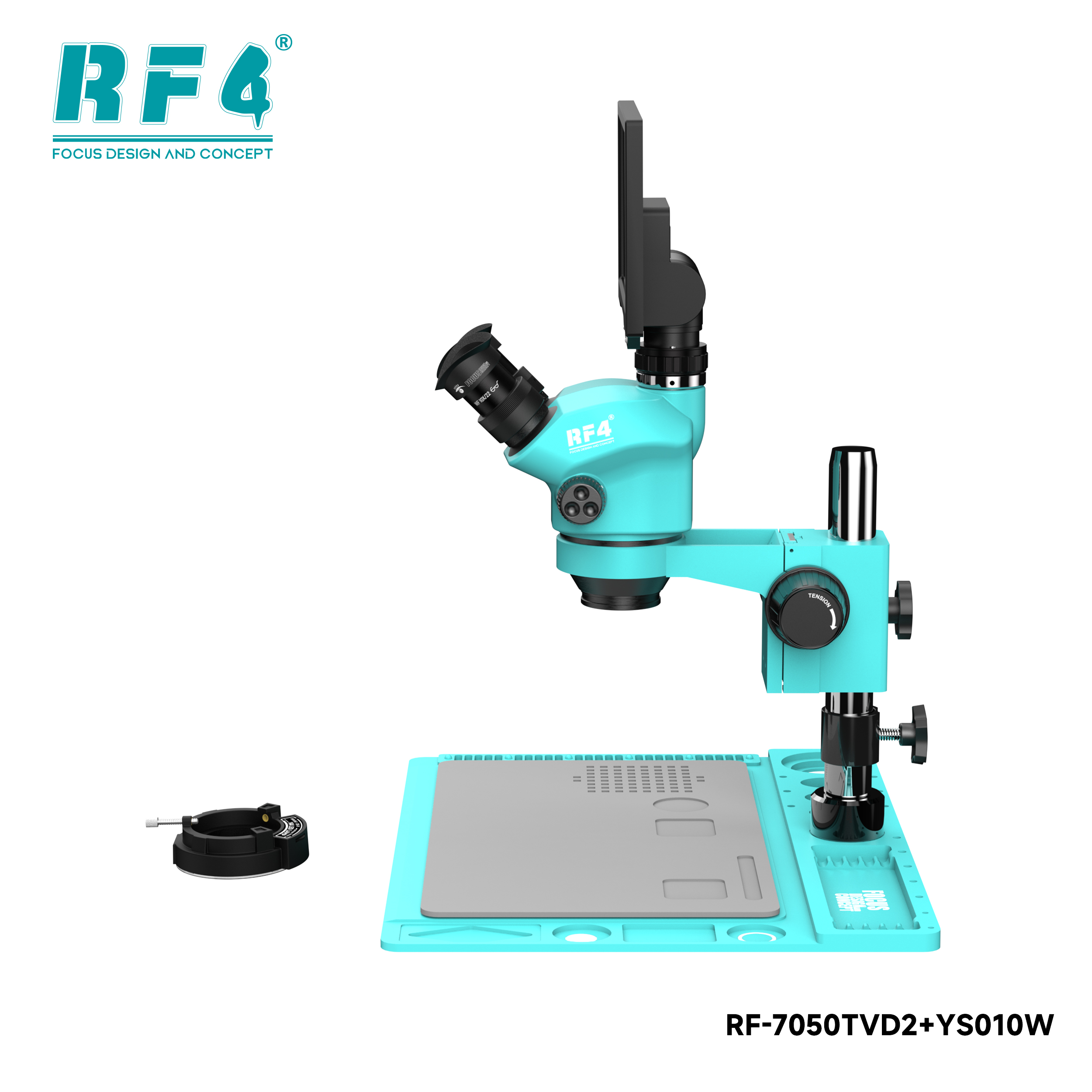

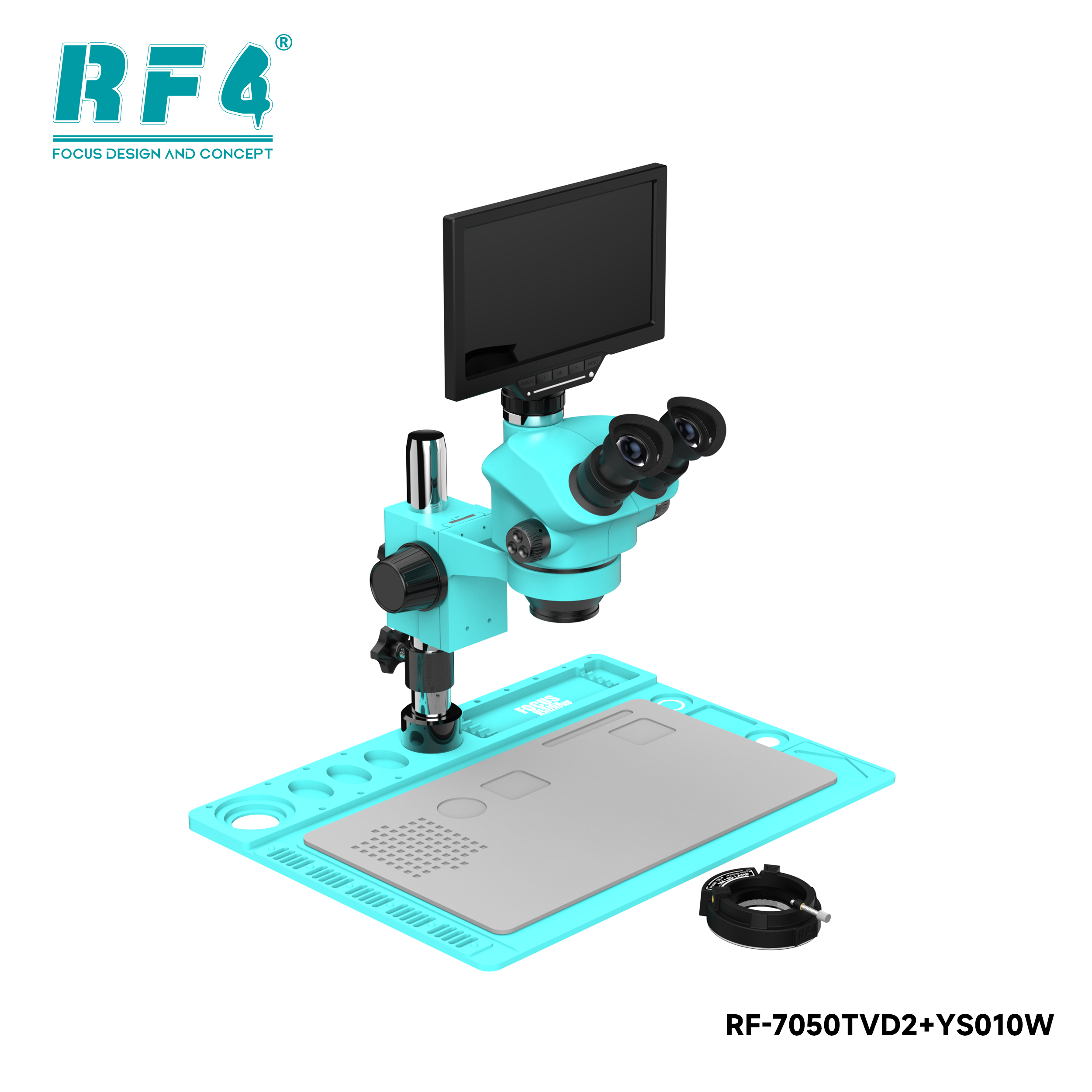

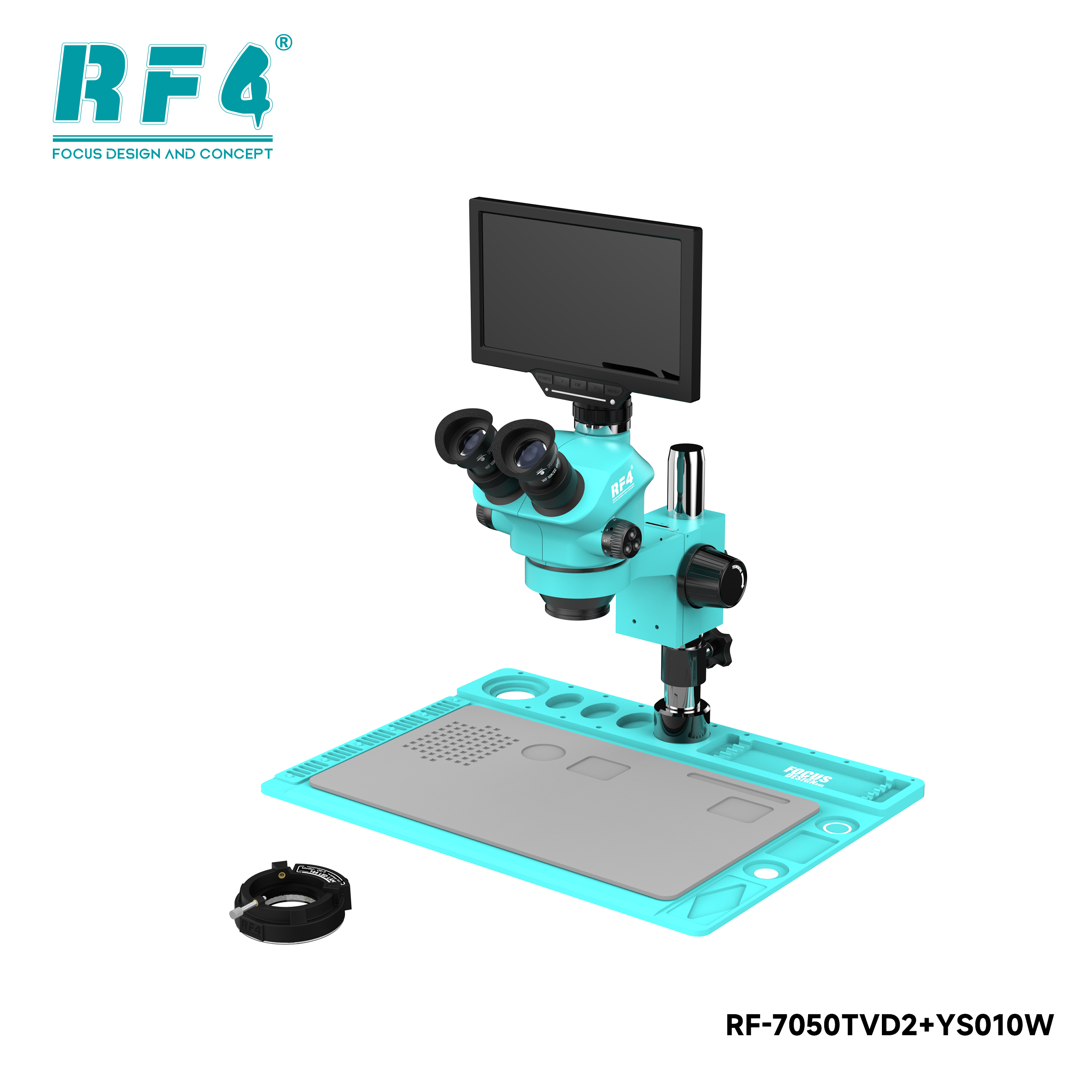

RF-7050TVD2-YS010w

Buy now
Product details
Overview
Quick Details
Warranty:
1 year
Place of Origin:
Guangdong, China
Brand Name:
RF4
Model Number:
RF7050TVD-YS010W
Theory:
Stereo Microscope
Drawtube:
Trinocular
Product name:
RF4 7-50X trinocular microscope with camera monitor 10-INCH
Magnification:
7-50X
Light source:
144 LED ring light
Color:
green
Eyepiece:
10X/22
Working distance:
100mm
moniter output:
HD/USB
moniter Pixel:
16mp
Accessories:
Dustproof lens
Application:
PCB repair/jewelry/carving
Supply Ability
Supply Ability
2000 Piece/Pieces per Month
Packaging & Delivery
Port
guangzhou
Lead Time:
Quantity(sets)1 - 20>20
Est. Time(days)16To be negotiated
Specification
item
value
Warranty
1 year
Place of Origin
China

Guangdong
Brand Name
RF4
Model Number
RF7050TVD-YS010W
Theory
Stereo Microscope
Drawtube
Trinocular
Product name
RF4 7-50X trinocular microscope with camera monitor 10-INCH
Magnification
7-50X
Light source
144 LED ring light
Color
green
Eyepiece
10X/22
Working distance
100mm
moniter output
HD/USB
moniter Pixel
16mp
Accessories
Dustproof lens
Application
PCB repair/jewelry/carving
Product Description
Magnification:continuous zoom 7X to 50X                                   Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM Barlow Lens: 0.5X & 0.7&2.0X(optional) Objective: 0.7-5.0X Camera connector：1/2ctv Monitor and eyepiece. Synchronous zoomCamera:Different models optional Boom Stand: 280mm φ32mm pillar, 300mm*400mm repair big base with silicone padAccessories: 144 adjustable led light & dust proof Lens
Eyepiece
（Standard Configuration）
（Auxiliary Observation）
0.5X
2X
Working Distance
100mm
Working Distance
165mm
Working Distance
30mm
Magnification
Field of View
Magnification
Field of View
Magnification
Field of View
10X/22
Standard Configuration
7X-50X
4.4-31.4mm
3.5X-25X
8.8-62.8mm
14X-100X
2.2-15.7mm
20X/10
14X-100X
1.0-7.1mm
7X-50X
2.0-14.2mm
28X-200X
0.5-3.5mm
LED ring light
instructions
Input
AC 100-240V , 50/60Hz
Output
DC 12V , max 700mA
Max output
4.5W-6W
Plug
EU/US
LED
144 LEDs
Illumination
Over 30000-35000Lux
Color Temperature
6000-7000K
Light color
White
Inside diameter
60mm
Package
144-LED Lamp Ring   Power Adapter (Default EU Plug)
Screen size: 10 inchesScreen resolution: 1024x600Image Sensor: 1/3 inch (BSI)Pixel size: 2um x 2umPhoto Resolution: 2688x1512, 5376*3024 (Interpolation)video resolution: 1080P30 (clear), 720P60 (smooth)HDMI resolution: 720P60USB resolution: 1080P20WiFi output:720x360@30fps,support Android and iOS (optional)Exposure control: AE lock, exposure compensation (adjustable at ten levels)White Balance:Automatic, manual (R, G, B ten level adjustable), one keyImage control: Contrast, saturation, sharpness ten level adjustmentCompared with the screen: full screen, left and right, up and down, 1/4grid: 8 groups, position, color, thickness adjustableMeasurement: point, line, circle, Angle (optional)Language: English, Simplified Chinese,Traditional ChineseFill light: touch type stepless regulationMouse interface: USB-A, recommended to use the original mouse (optional) Infrared remote control: maximum 5 metersWiFi distance: up to 10 meters (optional)HDMI interface: Type-AUSB interface: Type-C USB2.0Extended storage: supports up to 32G TF card Working distance: 1cm~5mBody size: 175mm (L) x 129mm (W) x 51mm (H)Body weight: 320g (including battery) / 270g (excluding battery)
Packing & Delivery
Packing Detail:carton within foam inside or wooden box;
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
