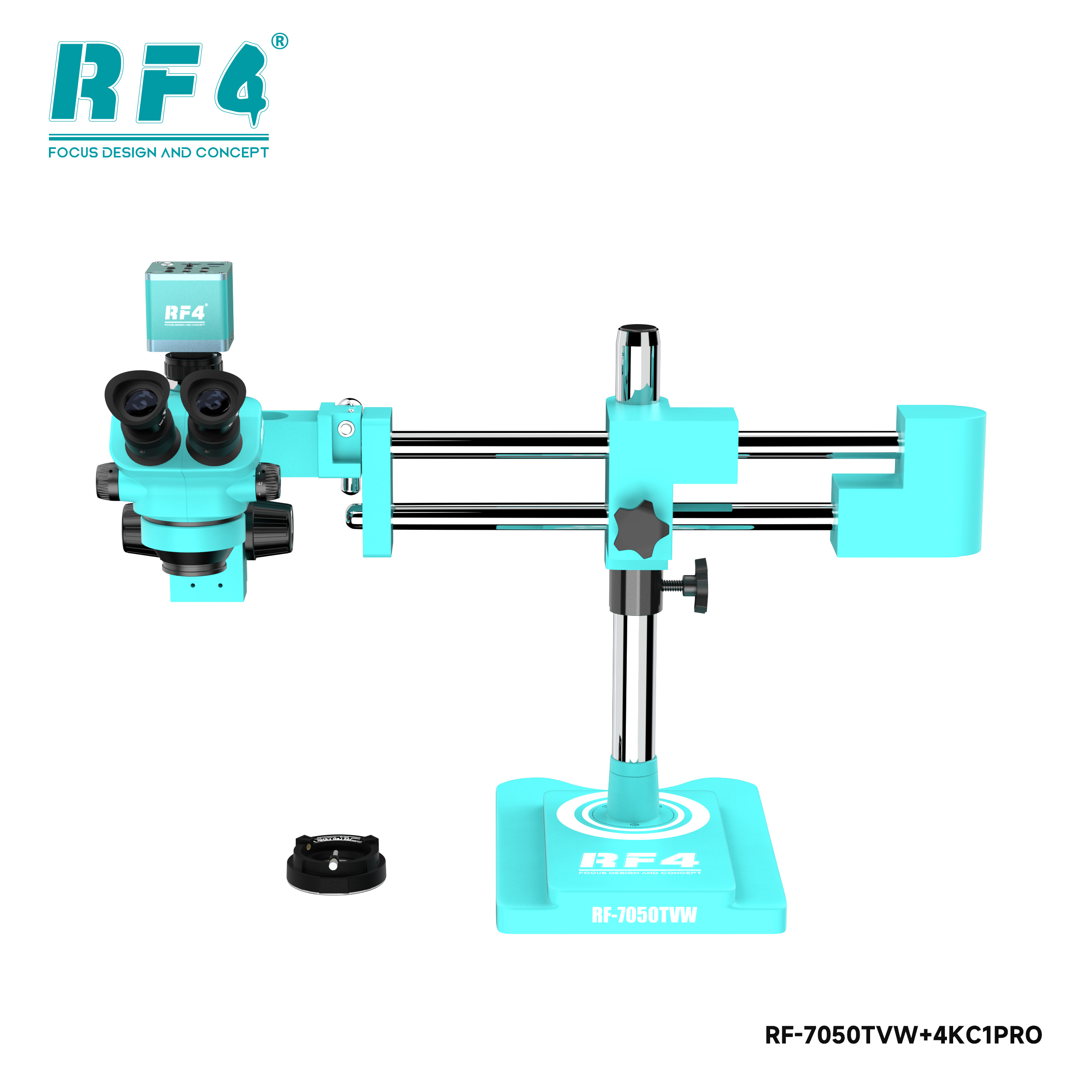

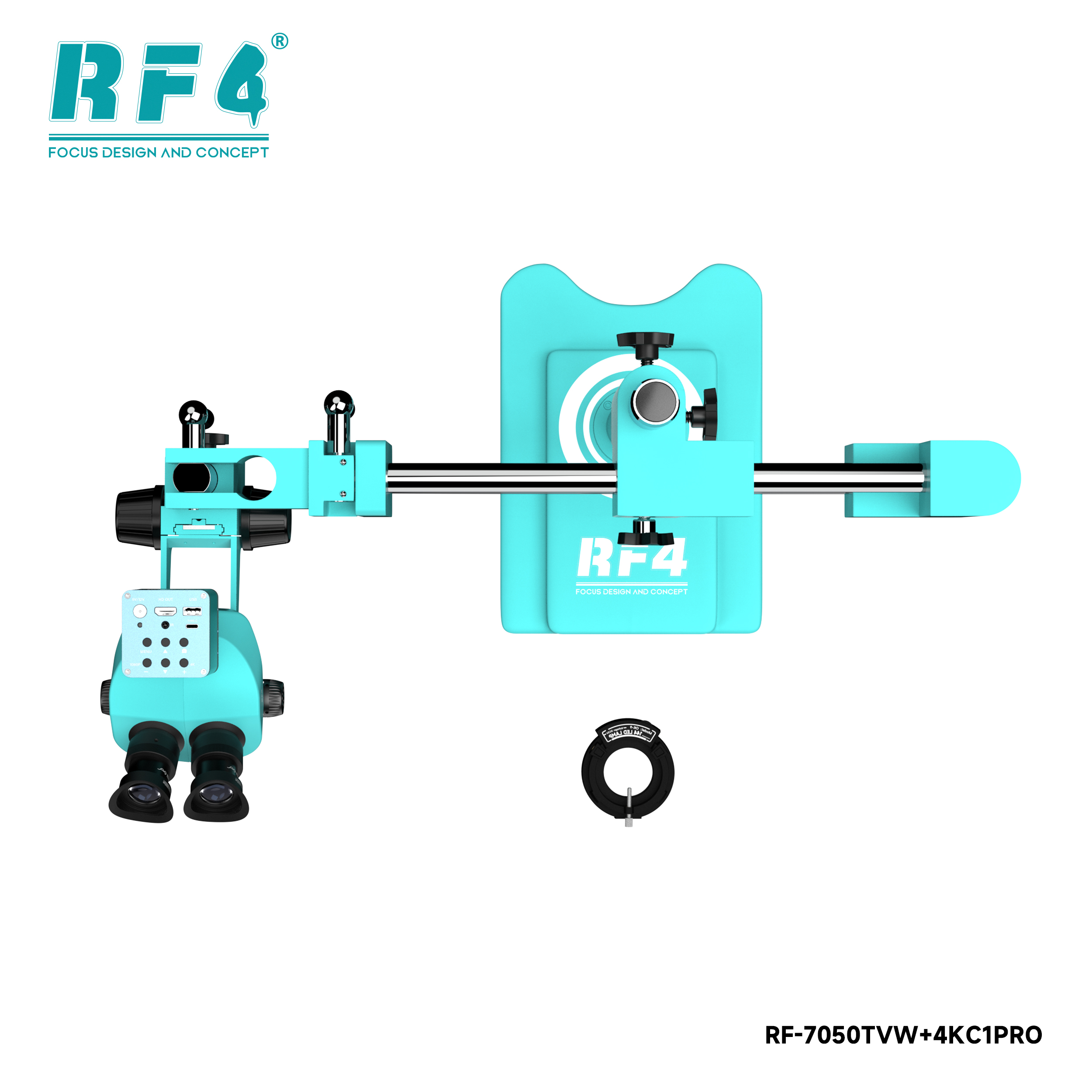

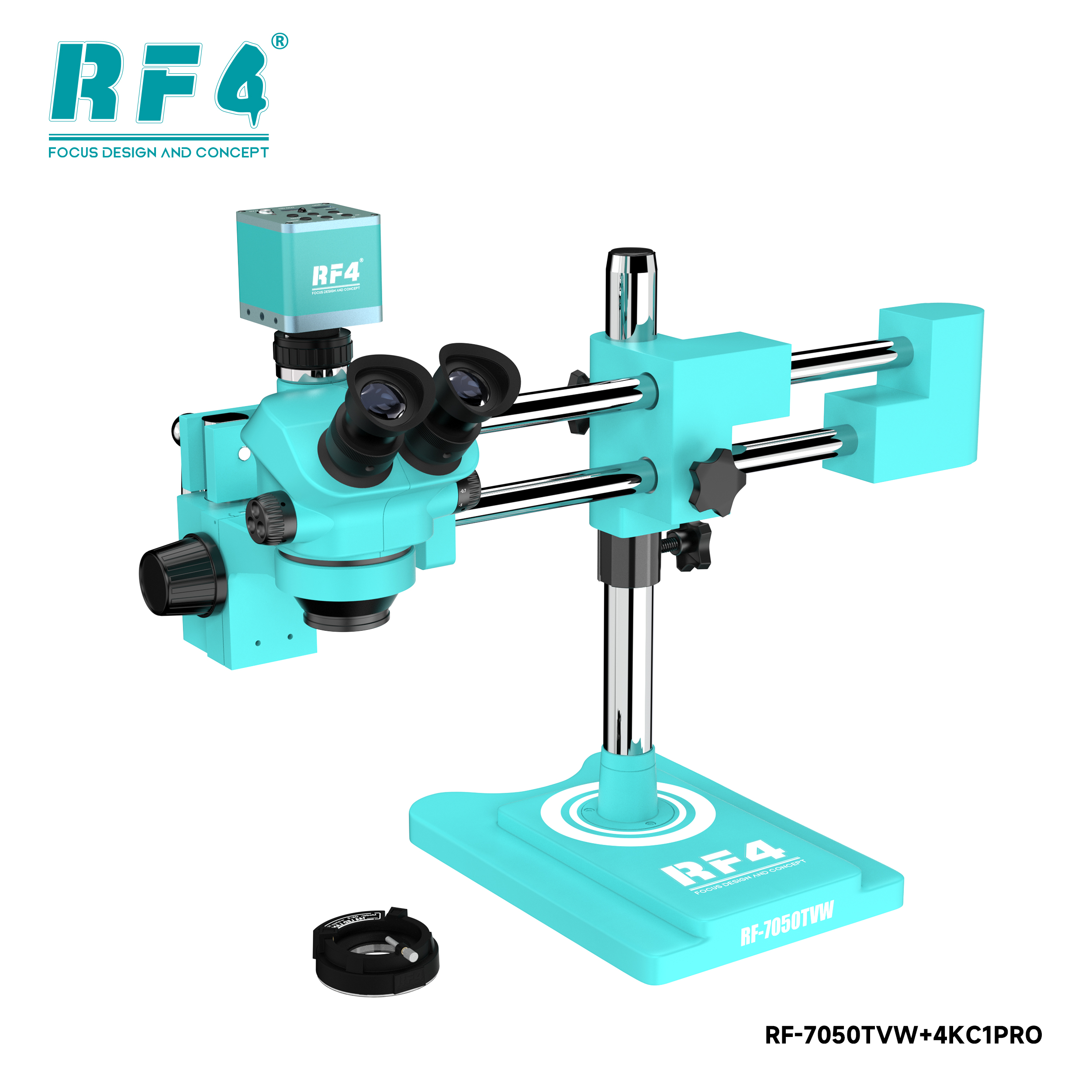

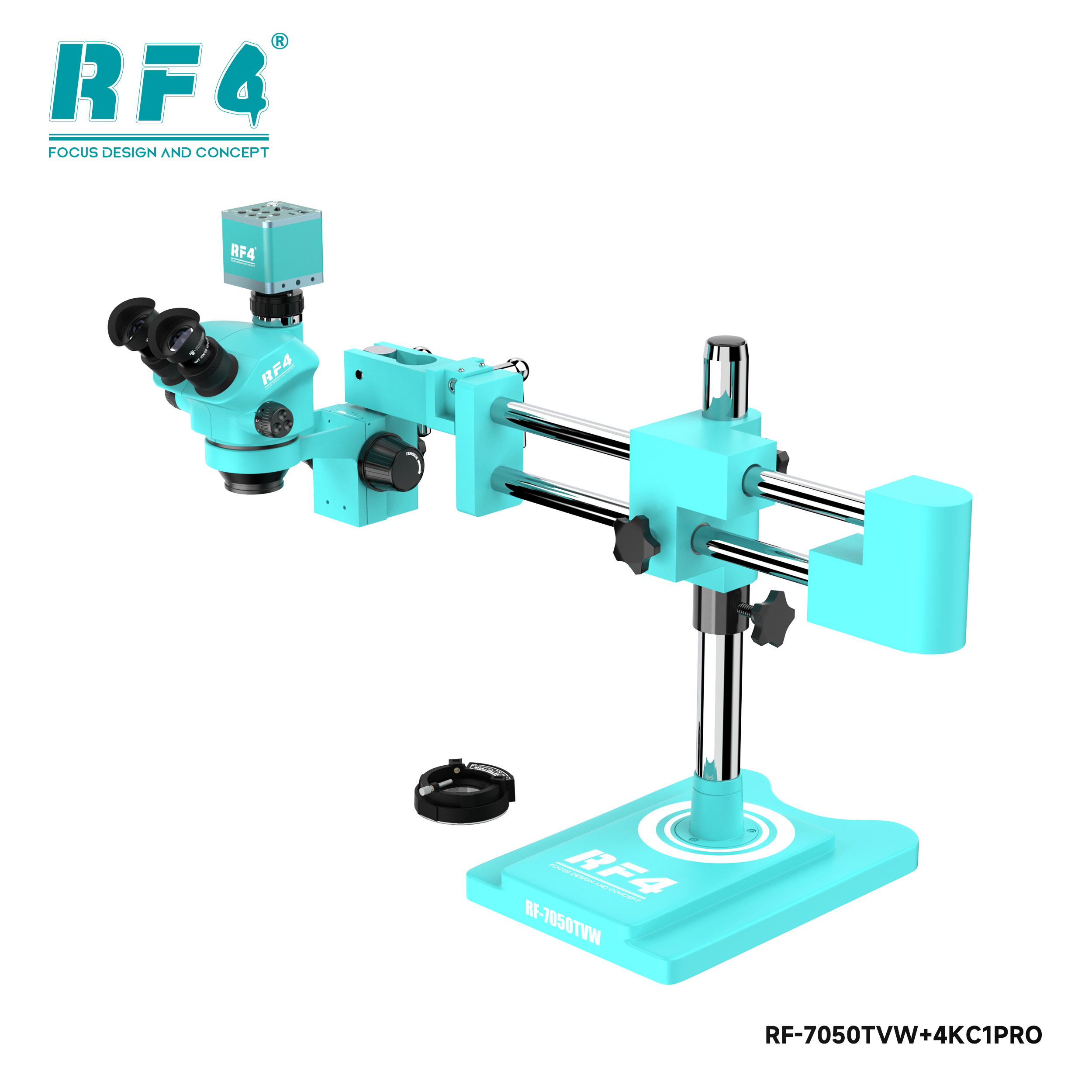

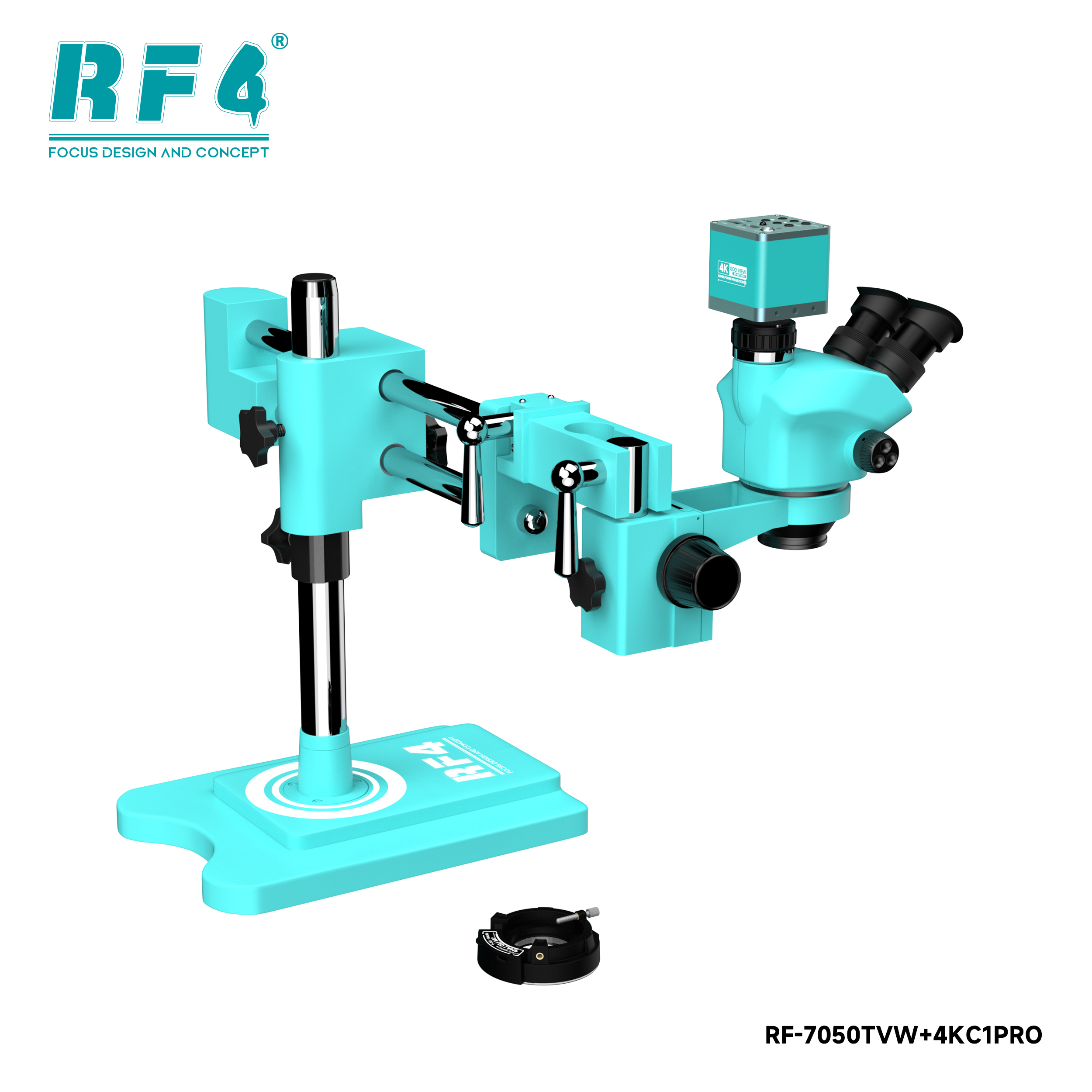

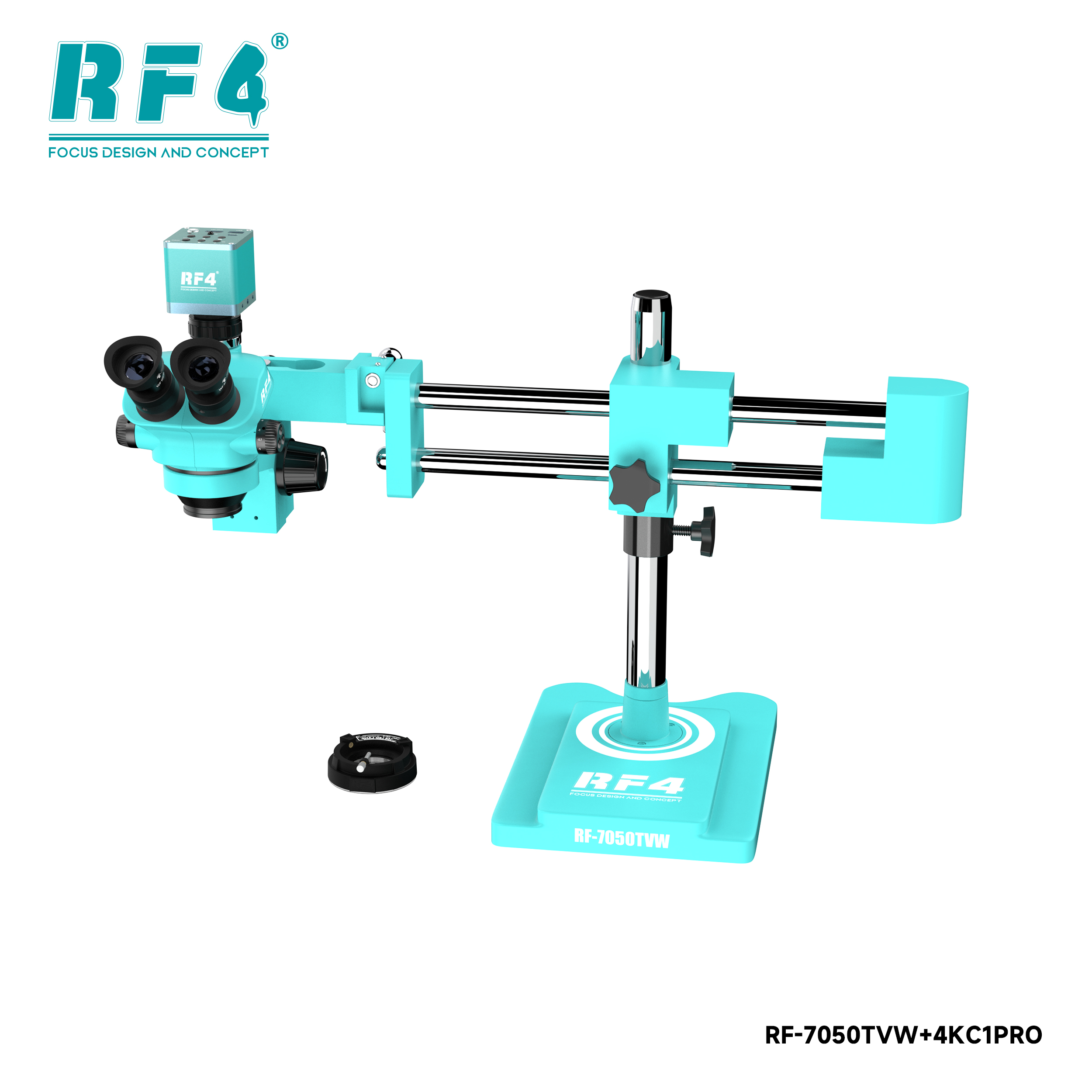

RF-7050TVW-4KC1

Product details
Overview
Quick Details
Warranty:
1 year
Place of Origin:
Guangdong, China
Brand Name:
RF4
Model Number:
RF7050TVW-4KC1
Theory:
Stereo Microscope
Drawtube:
Trinocular
Product name:
RF4 4K camera double-arm boom stand trinocular microscope
Magnification:
7-50X
Eyepiece:
10X/22mm
Objective lens:
2x/0.5x (Additional purchase)
Light source:
144 LED Ring Light
Focusing System:
continuou zoom
Color:
Green
Working distance:
100mm
Weight:
21kg
Camera:
3840*2160 4K ULTRA HD CAMERA
Supply Ability
Supply Ability
1000 Piece/Pieces per Month
Packaging & Delivery
Port
guangzhou
Lead Time:
Quantity(sets)1 - 10>10
Est. Time(days)14To be negotiated
Specification
item
value
Warranty
1 year
Certification
CE
Place of Origin
China

Guangdong
Brand Name
RF4
Model Number
RF7050TVW
Theory
Stereo Microscope
Drawtube
Trinocular
Product name
RF7050TVW double-arm boom stand trinocular microscope
Magnification
7-50X
Eyepiece
10X/22mm
Objective lens
2x/0.5x (Additional purchase)
Light source
144 LED Ring Light
Focusing System
continuou zoom
Color
Green
Working distance
100mm
Weight
21kg
Camera
38mp/48mp(Additional purchase)
Product Description
Magnification:continuous zoom 7X to 50X
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 0.7-5.0X
Camera connector:1/2ctv
Monitor and eyepiece. Synchronous zoom
Camera:3840*2160 4K ULTRA HD CAMERA
Boom Stand: 51cm double-arm (overall length: 76cm)
41cm high pillar, 200mm*245mm solid cast steel base
Accessories: 144 adjustable led light & dust proof Lens
Eyepiece
(Standard Configuration)
(Auxiliary Observation)
0.5X
2X
Working Distance
100mm
Working Distance
165mm
Working Distance
30mm
Magnification
Field of View
Magnification
Field of View
Magnification
Field of View
10X/22
Standard Configuration
7X-50X
4.4-31.4mm
3.5X-25X
8.8-62.8mm
14X-100X
2.2-15.7mm
20X/10
14X-100X
1.0-7.1mm
7X-50X
2.0-14.2mm
28X-200X
0.5-3.5mm
LED RING LIGHT
instructions
Input
AC 100-240V , 50/60Hz
Output
DC 12V ,
Max output
4.5W-6W
Plug
EU/US
LED
144 LEDs
Illumination
Over 30000-35000Lux
Color Temperature
6000-7000K
Light color
BLACK
Inside diameter
60mm
Package
144-LED Lamp Ring
Power Adapter
The parameter types
The parameter value
Sensor Target surface size
1/2.8"
The sensor resolution
4k/3840*2160@30fps
Output interface
HDMI 4k@30fps
Mode of operation
button
Working voltage
DC 12V
Storage
Usb disk, capacity<=64GB
The lens type
Supports C/CS interfaces
Photograph
8 million, JPG
Video
3840*2160 avi
Cross curve
8*8 groups
File Manager
With
Parameter type
specific parameter

Tip:

Hold down the '1080 key' for 10 seconds to 1080P resolution

Hold down the '4K key' for 10 seconds to switch to 4K resolution

Install and use
1. The microscope is connected to the host computer through C/CS interface, and tightened to prevent falling;
2. HDMI connection to monitor. Display should support 3840*2160/1920*1080 resolution;
3. Use USB interface to connect computer for UVC camera;
4. Connect the power adapter to the host through the DC port.
5. The TF card can be used with related functions: taking photos, video recording, playback, etc.
    If necessary, please insert it;
6.Switch on the power adapter, and the host indicator shows green for 10 seconds.
Packing & Delivery
Packing Detail:carton within foam inside or wooden box;
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
Our Services
1.We Will provide you User manual in English or operating videos for free ;
2.24 hours technical support by email or vedio call via wechat or skype;
3. Free training to make sure you master the operating of our products;
4. OEM/ODM accept . But the MOQ of OEM/ODM is 200 sets.
