Product details
Overview
Quick Details
Warranty:
1years
Customized support:
OEM, ODM, OBM
Place of Origin:
Guangdong, China
Brand Name:
Kailiwei
Model Number:
RF6565TVP
Theory:
Stereo Microscope
Drawtube:
Trinocular
Product name:
RF6565TVD2 Trinocular Microscope
Objective:
6.5X to 65X
Eyepiece:
WF10X/22MM
Magnification:
Continuous zoom 6.5X to 65X
Head:
45-degree inclined 360-degree swiveling trinocular
Camera connector:
1/2ctv
Accessories::
144 adjustable led light & dust proof Lens
Monitor and eyepiece:
Synchronous zoom
Light source:
144 adjustable led light
Certification:
IECEE
Supply Ability
Supply Ability
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packing Detail:carton within foam inside or wooden box
Shipping: 2~3 day after confirm payment
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.
We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Port
Shenzhen port or Guangzhou port
Lead Time:
Quantity(sets)1 - 500>500
Est. Time(days)7To be negotiated
Overview
RF6565TVP Gemological Microscope Trinocular Synchronous Zoom Microscope Used For Semiconductor Maintenance Work

Magnification:big continuous zoom 6.5X to 65X                                   Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM Adjust the focal Barlow Lens: 0.5X & 0.7&2.0X(optional) Objective: 0.65-6.5X Camera connector：1/2ctv Monitor and eyepiece. Synchronous zoomCamera:Different models optional Stand: 380 x260mmAccessories: 144 adjustable led light & dust proof   Lens
Product Description

Microscopic structure

1 Eyepieces glass 2 Adjustable Eyepieces 3 Zoom Control Knob 4 objective lens 5 Microscope head6 Base 7 Round Column Mounting Place8 Focusing knob 9 Round Column

Support parameters


Column aperture: Φ32mmLens aperture: Φ76mmCenter distance: 155mmLifting range: 50mm

The base parameters

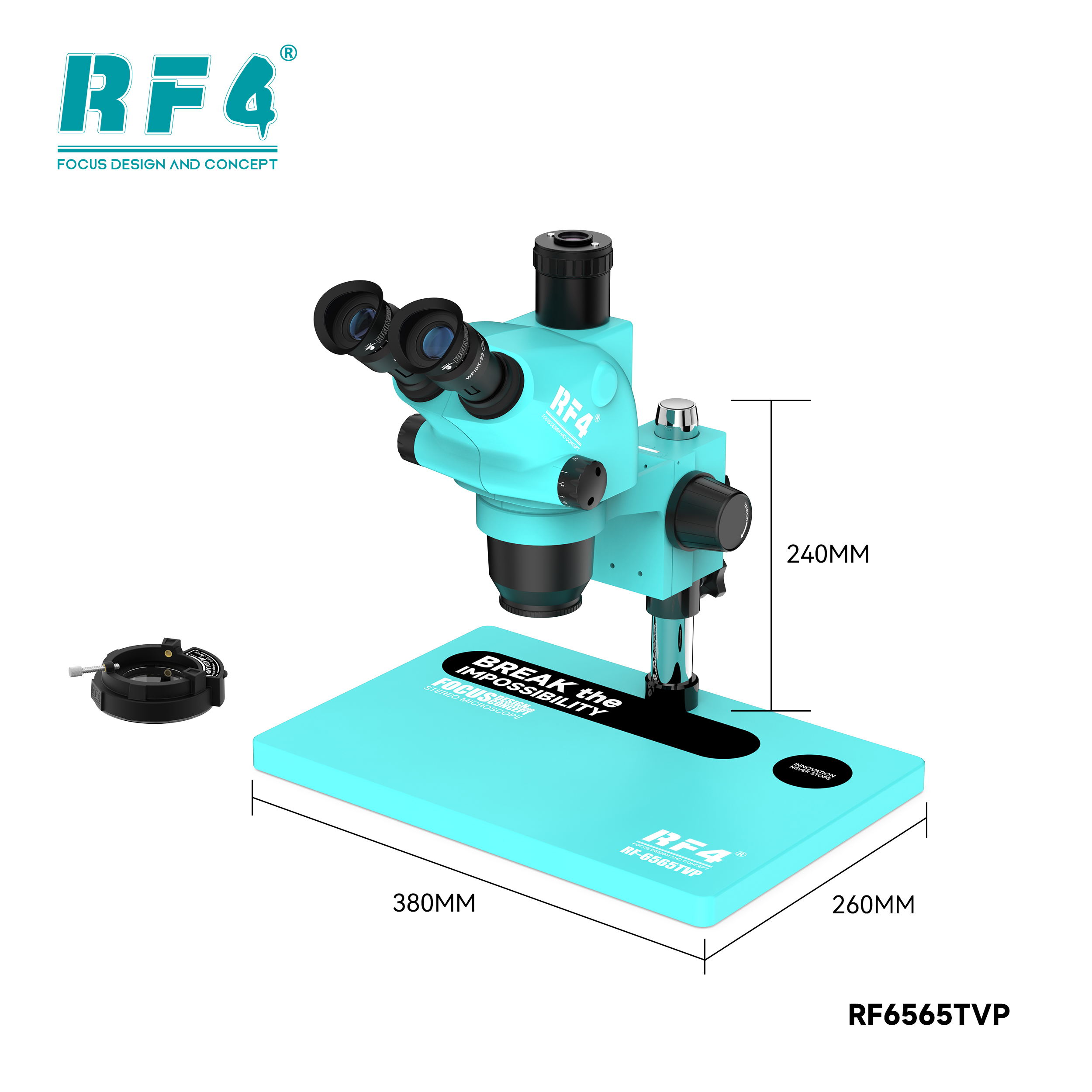

Column height: 240mmDiameter：φ32mm     Base:380 x260mm

Wide-angle eyepieces 10X/22



Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Ajustable Eyepiece Lens，Suit for Stereo Microscope.

0.5X   CTV

1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet.2The adapter ring can use LCD to focus, this kind of focus method is manual focus.3 The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.4   Weight: 0.09kg.
Different eyepieces match different magnifications of the same objective lens
Our Services
1.We Will provide you User manual in English or operating videos for free .
2.24 hours technical support by email or vedio call via wechat or skype.
3. Free training to make sure you master the operating of our products.
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Warranty:
1.all of our products will be checked one by one before shipping
2.customer should check the package when receiving
3.all machine wihin 1 year free warranty, but here is not warranty if that's obviously caused by man-made. free technical support always.
4. due to the low vaule of the accessories,we don't accept any return or exchange.
Packaging & Shipping
Packing Detail:carton within foam inside or wooden box
Shipping: 2~3 day after confirm payment
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.
We can arrange shipment by sea. Minium CBM requirement : 1 CBM
